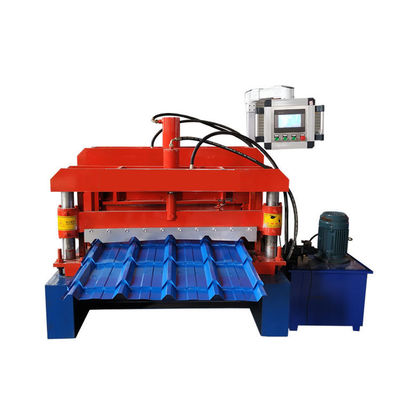

Customized Shape Profile Ppgi Roof Panel Roll Former Metal

Customized Shape Profile Ppgi Roof Panel Roll Former Metal
Customized Shape Profile Ppgi Roof Panel Roll Former Metal Customized Shape Profile Ppgi Roof Panel Roll Former Metal

Large Image :  Customized Shape Profile Ppgi Roof Panel Roll Former Metal

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Met Tile / Glazed Tile
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 35 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Customized Shape Profile Panel Metal Roll Forming Roof Sheet Making Machine Raw Material: Galvalume, Galvanized, PPGI, Aluminum,Copper
Voltage: 380V 50HZ 3 Phase Or Other Production Capacity: 8-12m/min
Warranty: 1 Year Control System: Fully Automatic
Electrical Hydraulic: 4 KW Cutting Accuracy: ±2 Mm
Cutting Blade Material: Cr12Mov With Quenched Treatment Shaft Material: 45 Forged Steel
High Light:

customized shape roof roll forming machine

,

customized profile roof panel roll former

,

ppgi roof panel roll former

Customized Shape Profile Panel Metal Roll Forming Roof Sheet Making Machine



This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.

The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.



Specification

Article No. Item Name Specification
1 Processing material Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2 Processing thickness (mm) 0.3-0.8 mm
3 Material of rollers High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4 Material of shafts 45# steel
5 Diameter of shafts 70mm or as your customized
6 Forming speed 3-4 m/min
7 Under frame 350 H-beam
8 Sidewall 16mm
9 Connect bar 25mm, zinc plated
10 Forming steps 11 stations
11 Control system Delta PLC and Inverter
12 Suitable power 380V, 50 Hz, 3 phase or according to your need
13 Drive mode Chain and sprocket, chain size 1 inch
14 Main motor 3.5 kw
15 Hydraulic pump station 4 kw
16 Cutting model Hydraulic profile cutting
17 Dimension of the machine 6.5m×1.5mm×1.5m
18 Weight of the machine 3.5 tons



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
