Product Details:
Payment & Shipping Terms:
|
| Product Name: | Highquality Decking Flooring Board Machine Floor Tile Making Machine | Size: | About 16m X 1.8m X 1.5m (length X Width X Height) |
|---|---|---|---|
| Warranty: | 1 Year | Cutting Type: | Hydraulic Cutting |
| Control System: | PLC | Material: | Galvanized Or Galvalume Coils |
| Thickness: | 0.8-1.2mm | Roll Forming Speed: | 10-15/min |
| High Light: | 1.2mm floor tile making machine,decking board floor tile making machine,plc floor tile making machine |
||

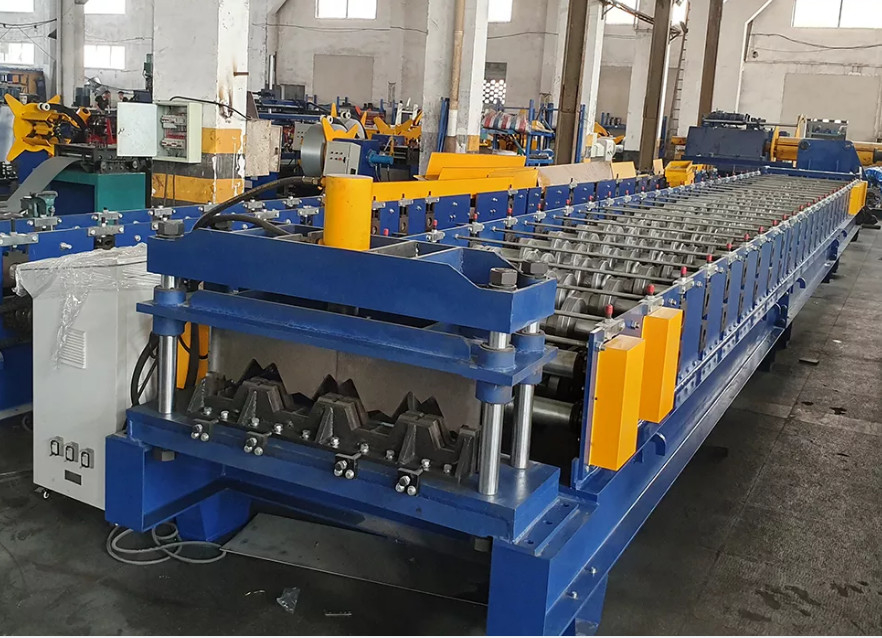

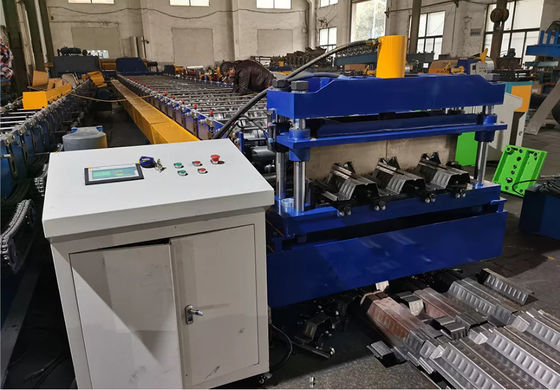

Decking Flooring Board Machine Floor Tile Making Machine
The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.
Specification
| Diameter of forming rollers shafts | 95mm |
| Roll Forming Speed | 10-15/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3x11kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
