Hydraulic Cutting Chaindrive Steel Door Production Line

Hydraulic Cutting Chaindrive Steel Door Production Line
Hydraulic Cutting Chaindrive Steel Door Production Line Hydraulic Cutting Chaindrive Steel Door Production Line Hydraulic Cutting Chaindrive Steel Door Production Line

Large Image :  Hydraulic Cutting Chaindrive Steel Door Production Line

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Door Frame
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Hydraulic Cutting Steel Door Frame Mahine For Steel Door Production Line Raw Material: According To You Profile Drawings
Optional 1: Wall Panel Structure Optional 2: Cast Iron Strcture
Voltage: 380V 50Hz 3phases Condition: New
Rollers Material: GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62(optional) Way Of Drive: Chain Drive,Gearbox Drive(optional)
High Light:

hydraulic cutting steel door production line

,

chain drive steel door production line

,

chaindrive steel door roll forming machine

Hydraulic Cutting Steel Door Frame Mahine For Steel Door Production Line

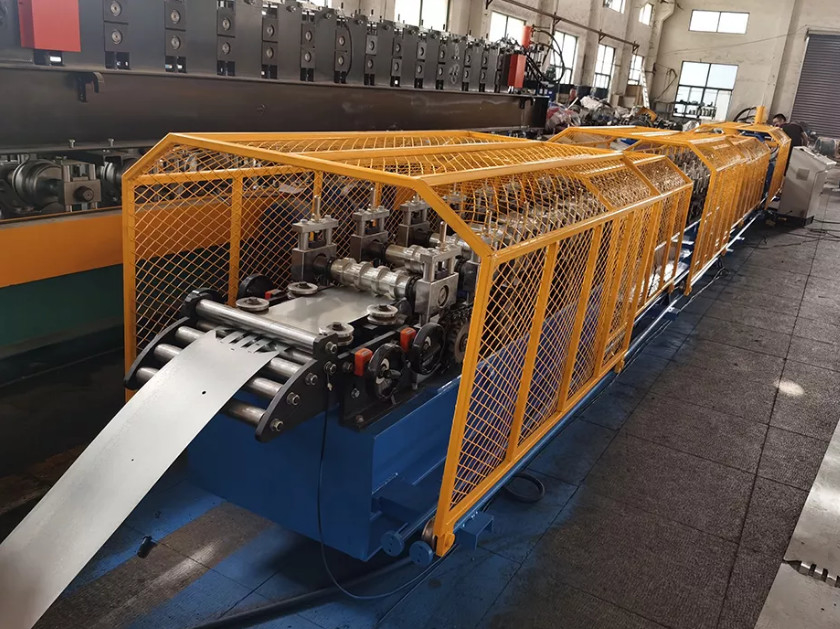

The steel door frame forming machine is controlled by the PLC control system to realize fully automatic operation.The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength.  it is convince for installation,low-noise,reliable quality,and easy handlind.

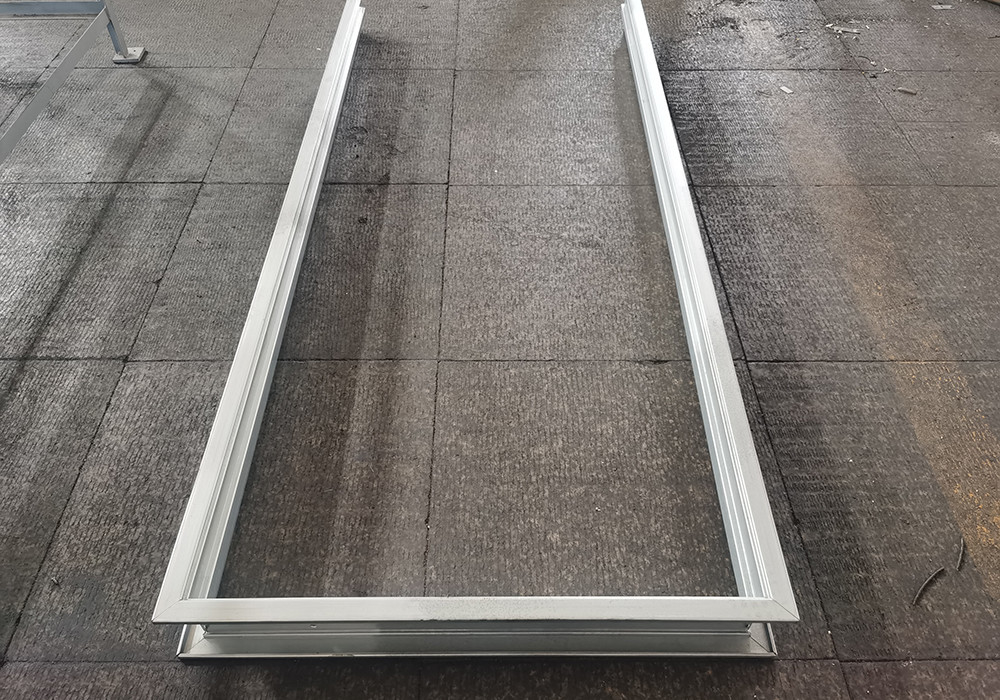

The machine version can be customized according to customer requirements. Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.


Specification



Forming stations:according to you profile drawings
Machine structure:Optional 1: wall panel structure
Optional 2: cast iron strcture
Rollers material :GCr15,Cr12,SKD11 quenching treatment:HRC58-62(optional)
Way of drive :chain drive,Gearbox drive(optional)
Raw material request:cold rolled or hot rolled steel,galvanized steel,SS316L/Mild Steel
Whole line working speed:0-25m/min
Length precision:±0.3mm/10m
Punching system:hydraulic punching ,punching press machine(option)
Cutting system:pre cutting,hydraulic post cutting,servo Tracking cutting
Inverter :Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
PLC :Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)



Application

The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.


Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
