Steel Framing Channel Galvalume Strut Roll Forming Machine

Steel Framing Channel Galvalume Strut Roll Forming Machine
Steel Framing Channel Galvalume Strut Roll Forming Machine Steel Framing Channel Galvalume Strut Roll Forming Machine

Large Image :  Steel Framing Channel Galvalume Strut Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Full Automatic Channel Purlin Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: High Strength Steel Framing Channel Strut Roll Forming Lines Easy Operation Raw Material: Galvalume, Galvanized
Core Components: PLC, Engine, Bearing, Motor, Pump Production Capacity: 8-12M/minutes
Voltage: 380V 50Hz 3phases Warranty: 1 Year
Key Selling Point: Easy To Operate Material Of Roller: GCr15
High Light:

steel framing strut roll forming machine

,

galvalume strut roll forming machine

,

steel framing channel roll forming machine

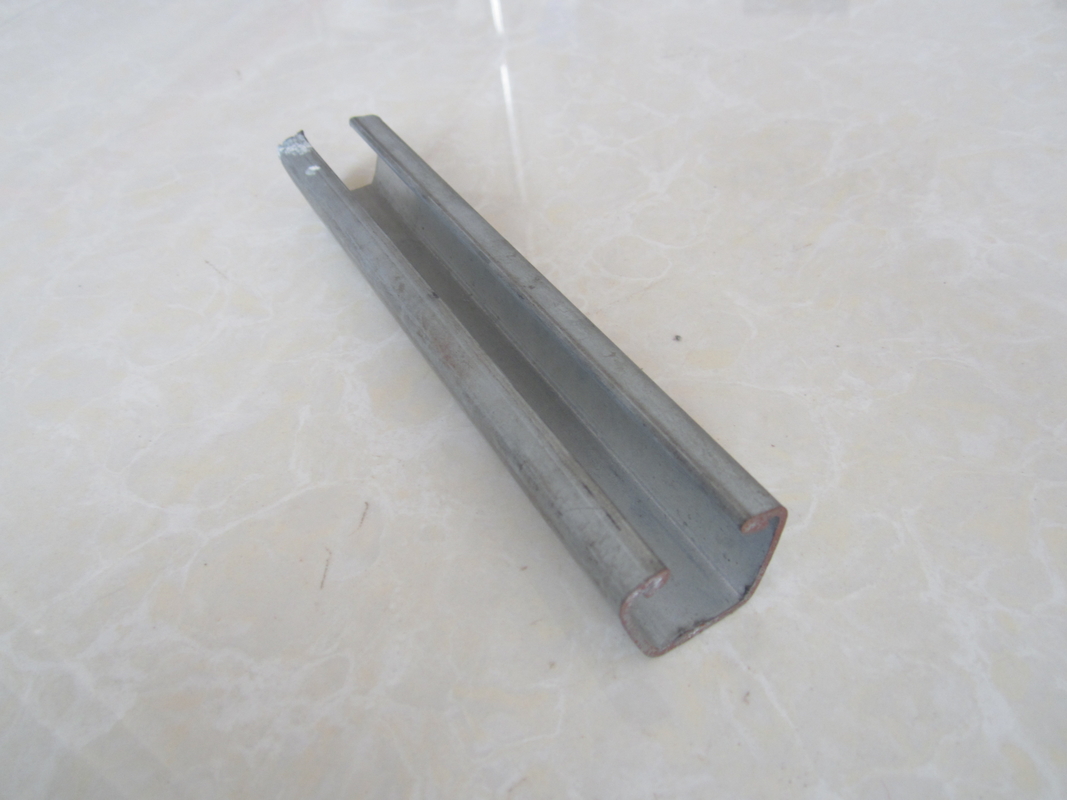

High Strength Steel Framing Channel Strut Roll Forming Lines Easy Operation



Channels are secondary steel framing members that serve as a receiver channel at the end of Zee Purlin. They can also be used for a number of other applications either alone or welded back-to-back. Available in red oxide or galvanized, Channels are standard at 20′ long, though some locations can cut to length.





Specification



1
Suitable to process
Color steel plate
2
Width of the purlin
80-300mm
3
Thickness of the plate
1.5-3mm
4
De-coiler
Manual one, can load 5 tons raw material
5
Rollers for forming
15 rows
6
Diameter of the roller
85 mm
7
Rolling material
Cr15
8
Main motor power
22kw
9
Material of the cutting blade
Cr12 mov
10
Hydraulic cutting power
22kw
11
Processing precision
Within 1.00mm
12
Control system
Delta PLC control



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
