Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears
Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

Large Image :  Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Door bottom
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears Raw Material: PPGI,GI,PPGL GL
Working Speed: 10-15m/min Material Thickness: 0.3mm - 0.8mm
Voltage: 380V 50Hz 3phases Cutting Accuracy: ± 1 Mm
Drive Motor Power: 5 KW Hydraulic Station Power: 5 KW
High Light:

gl automatic rolling shutter machine

,

ppgi shutter door roll forming machine

,

hydraulic shears shutter door rolling machine

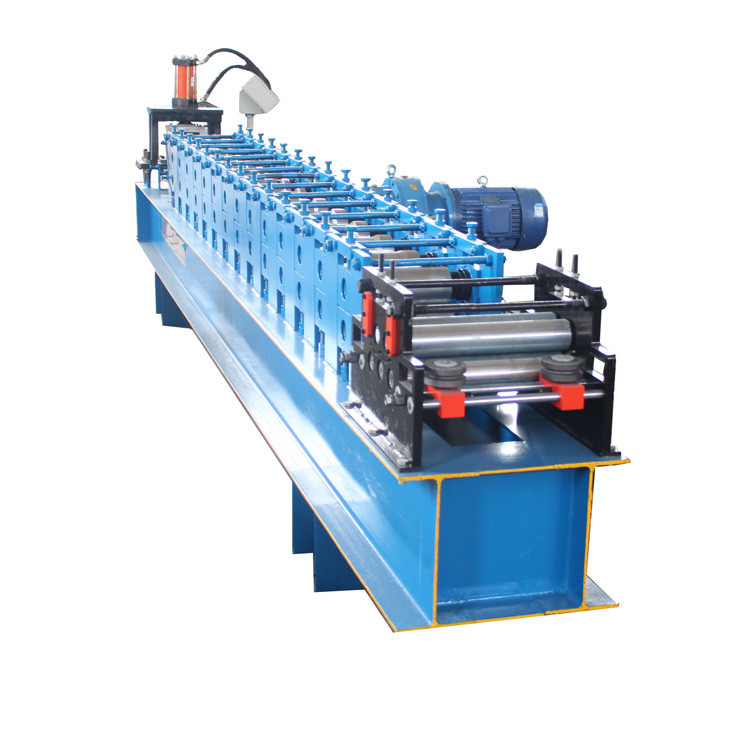

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears



The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine,cigarettes, printing, textiles, supermarkets and other light industrial plants.



Specification



1
Suitable to process
Color steel plate
2
Width of the plate
914mm/1000mm/1200mm/1220mm/1250mm
3
Thickness of the plate
0.3-0.8mm
4
Diameter of the roller
80mm
5
Rolling material
Carbon Steel 45#
6
Main motor power
5.5kw
7
Material of the cutting blade
Cr12 mov
8
Hydraulic cutting power
4kw
9
Processing precision
Within 1.00mm
10
Control system
Delta PLC control
11
Side panel of machine
16mm
12
Main structure of the machine
350 H steel
13
Voltage
380V 50Hz 3phases(changeable as needs)
14
Certificate
CE/ISO



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
