Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic

Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic
Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic

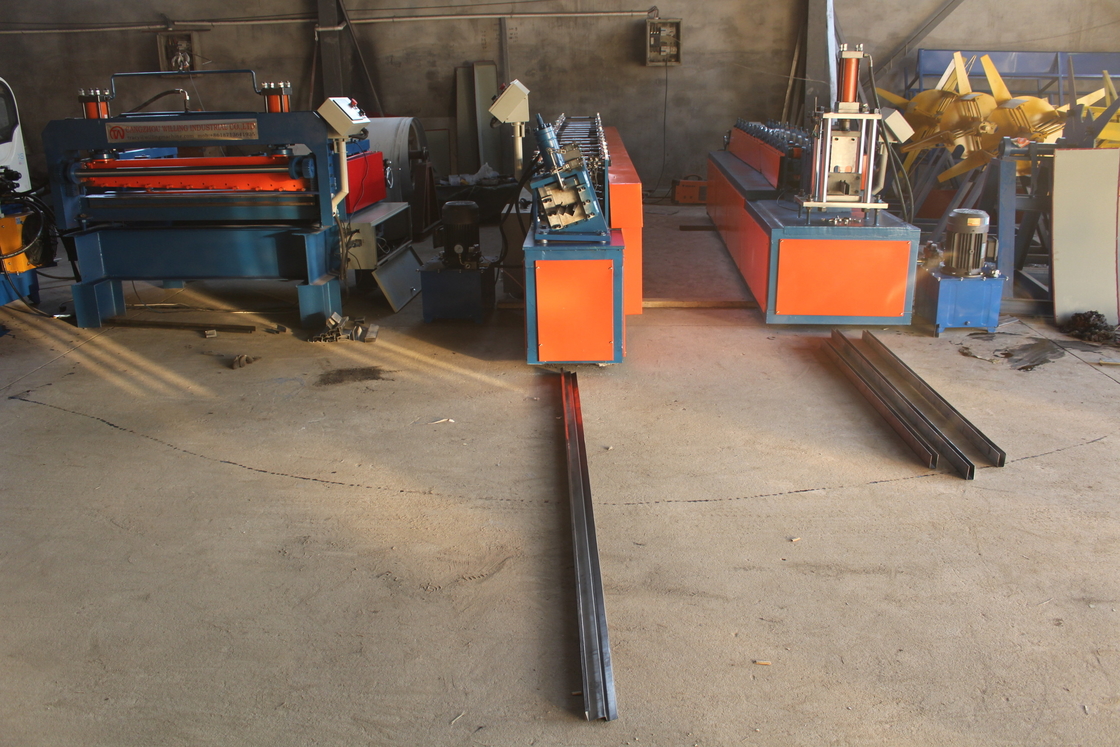

Large Image :  Hydraulic Cutting PPGL Door Frame Roll Forming Machine Automatic

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Door Frame
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Hydraulic Cutting Door Frame Roll Forming Machine Automatic Raw Material: PPGI,GI,PPGL GL
Working Speed: 10 M/min - 15 M/min High Speed Material Thickness: 0.3mm - 0.8 Mm
Voltage: 380V 50Hz 3phases Condition: New
Drive Motor Power: 5 KW Hydraulic Station Power: 5 KW
High Light:

door frame roll forming machine automatic

,

ppgl door frame roll forming machine

,

hydraulic cutting door frame forming machine



Hydraulic Cutting Door Frame Roll Forming Machine Automatic



The steel door frame forming machine is controlled by the PLC control system to realize fully automatic operation.The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. The surface is treated with special electrophoresis, which has unlimited luster, is not easy to stick to dust, is not corroded by polluted gases, and is never rusted.

The machine version can be customized according to customer requirements. Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.



Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.3 mm - 0.9 mm
3 Working Speed 10-15 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

5500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 1 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
