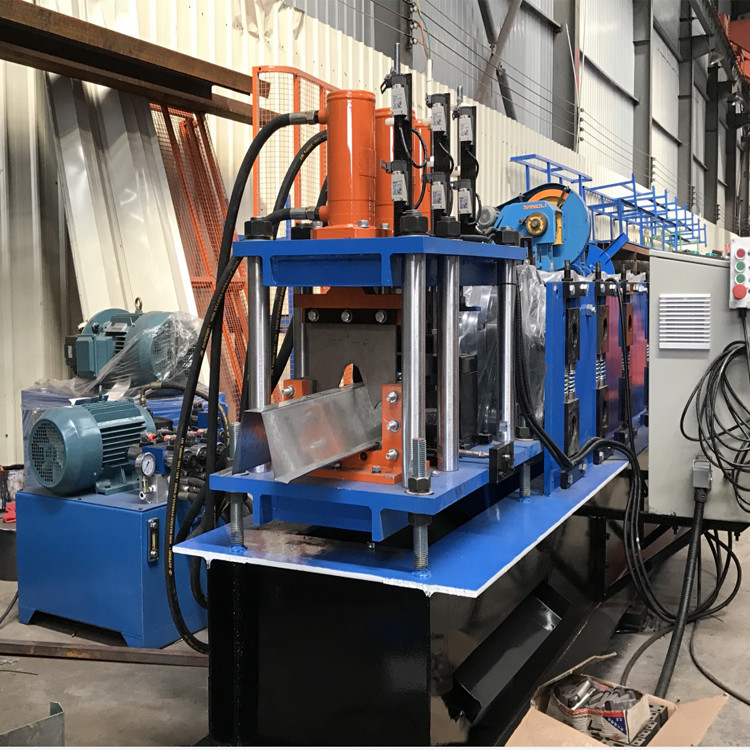

1mm Tophat Omega Roll Forming Machine Profile Stud Making

1mm Tophat Omega Roll Forming Machine Profile Stud Making
1mm Tophat Omega Roll Forming Machine Profile Stud Making 1mm Tophat Omega Roll Forming Machine Profile Stud Making

Large Image :  1mm Tophat Omega Roll Forming Machine Profile Stud Making

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Tophat Roll Forming Machine Omega Profile Stud Making Core Components: PLC, Engine, Motor, Gear, Pump
Production Capacity: 8-25m /min Material Thickness: 1mm - 3 Mm
Weight: 3 Tons Warranty: 1 Year
Power: 8.5KW Control System: PLC
High Light:

tophat omega roll forming machine

,

1mm omega roll forming machine

,

tophat profile roll forming machine

Tophat Roll Forming Machine Omega Profile Stud Making



Omega hat-shaped steel purlin forming machine is mainly composed of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, computer control cabinet and other parts.
The finished product of hat-shaped purlin has good bending and compression resistance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, and quick and convenient installation.



Specification



No. Item Description
1 Material Thickness 1 mm- 3 mm
2 Working Speed 8-25m/min ( not including the cutting time)
3 Pump motor 4KW; Cutting
4

Cutting tool material

Cr12, Heat treatment
5

Electrical Control System

PLC

6

Main Motor

5.5KW
7

Liner speed of roll former

approx. 15~18m/min
8

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

9

Cutting Accuracy

±2 mm



Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

1mm Tophat Omega Roll Forming Machine Profile Stud Making 0





1mm Tophat Omega Roll Forming Machine Profile Stud Making 1
