Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases

Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases
Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases

Large Image :  Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Downspout
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: BD High Quality Downspout Pipe Roll Forming Machine Square Raw Material: Galvalume, Galvanized, PPGI,Aluminum,Copper
Voltage: 380V 50Hz 3phases Control System: PLC
Warranty: 1 Year Rolling Thinckness: 0.4-0.6mm
Weight: 5 Kg Production Capacity: 15m/min(not Include Cutting Time)
High Light:

copper downspout pipe forming machine

,

3 phases downspout pipe forming machine

,

0.6mm downspout pipe roll forming machine

BD High Quality Downspout Pipe Roll Forming Machine Square

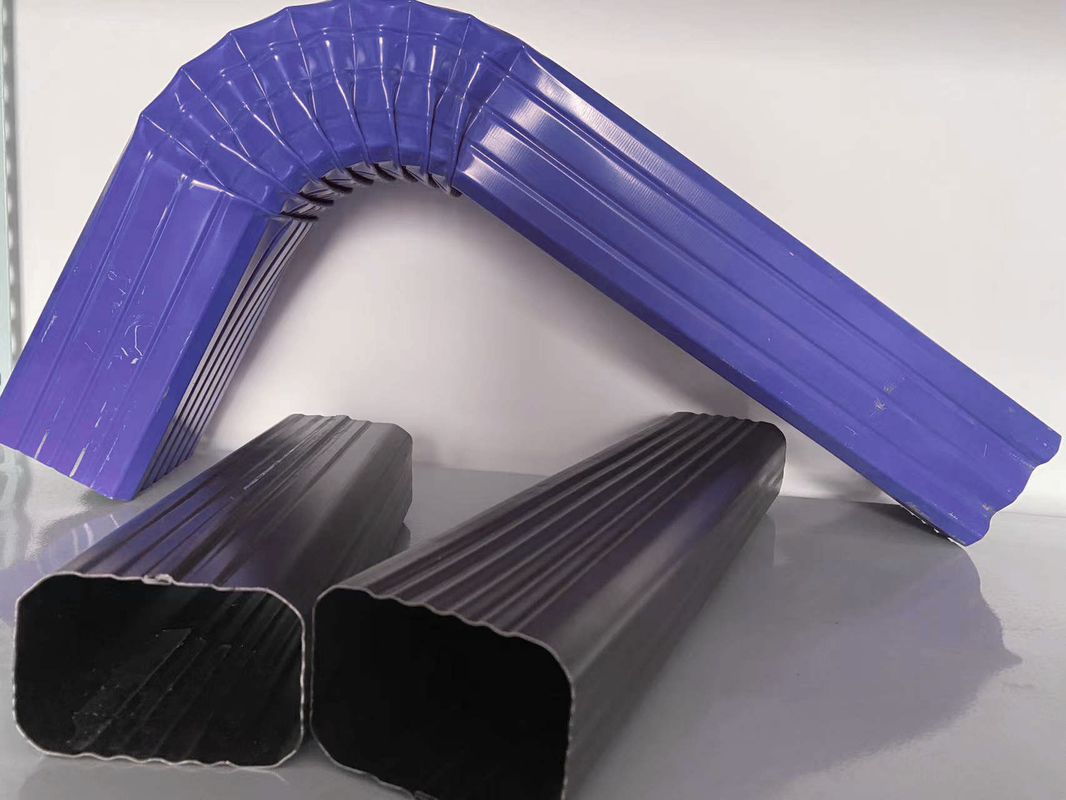

The most common downspout for use with Style A, and Style D gutters systems.Collect roof rainwater and lead it to the rainwater pipe laid below the ground.The application of steel downpipe makes steel building integrity stronger, there are a variety of elbow and downpipe matching, more complex walls are also suitable.

Common specifications for round tubes are 40mm, 50 mm, 75 mm, 90 mm, 110 mm, 150 mm, 200 mm, 250 mm, 315 mm, 400 mm, 500 mm, etc. Common specifications of the square tube are 80mm*55mm, 80mm*63mm, 80mm*100mm, etc.








Specification

No.
Item
Description
1
Coil width
According to the final profile
2
Rolling speed
0-15m/min
3
Rolling thickness
0.4-0.6mm
4
Control system
PLC (Panasonic) as list in the note
5
Un Coiler
3T manual de-coiler
6
Roller Stations
20 stations
7
Roller Material
ASTM1045 chrome plated surface with chrome
8
Shaft Material and DIA
¢65mm, material:45# with quenching and tempering
9
Post cutting
Machine adopts hydraulic cutting system
10
Material Of Cutting
Cr12, 58-62 HRC hardness
11
Maim Motor Power
5.5kw
12
Hydraulic Station Power
5.5kw
13
Hydraulic pressure
12-16Mpa adjustable
14
Structure Of The Stations
Wall panel
15
Bending machine
With Main machine together

Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
