Metal Sheet PPGI 380V60Hz Glazed Tile Roll Forming Machine Automatic

Metal Sheet PPGI 380V60Hz Glazed Tile Roll Forming Machine Automatic
Metal Sheet PPGI 380V60Hz Glazed Tile Roll Forming Machine Automatic

Large Image :  Metal Sheet PPGI 380V60Hz Glazed Tile Roll Forming Machine Automatic

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Sheet Glazed Tile Roll Forming Machine Automatic Key Selling Points: Long Service Life
Raw Material: PPGI/Galvanized Sheet Voltage: 380V60Hz Or According To Client Requirement
Core Components: Motor, PLC Thickness Of The Material: 0.3-0.8mm
Production Capacity: 8-12 Meter/min Control System: PLC Control Box
High Light:

ppgi glazed tile roll forming machine

,

380v60hz glazed tile roll forming machine

,

ppgi glazed tile forming machine

Metal Sheet Glazed Tile Roll Forming Machine Automatic

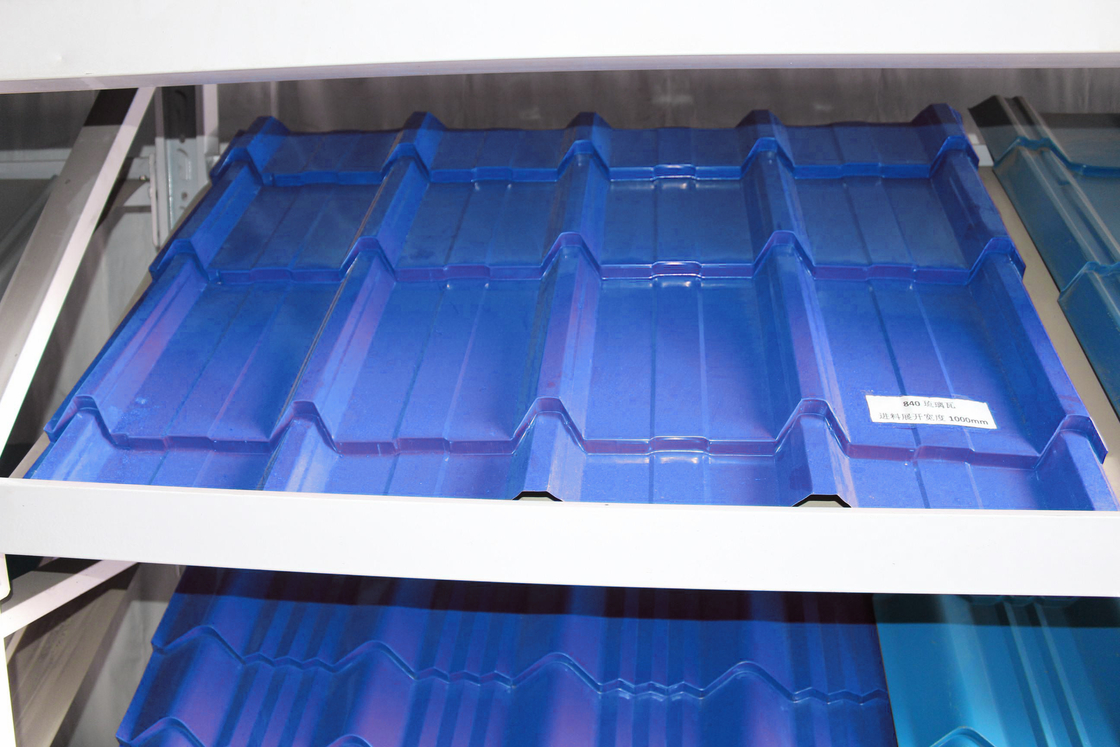

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.



Specification

No.ItemDescription
1TypeSteel / Galvanized Panel
2Feeding widthAccording to client's requirement
3Thickness0.3-0.7 mm
4Roller station13 Steps (According to the profile)
5

Diameter of shaft

75mm
6Shaft material45# Steel
7

Roller material

45# Steel

8

Drive Motor Power

4 KW
9

Hydraulic Station Power

4 KW
10

Voltage

380V 50Hz 3phases or Customerization

11

Cutting Accuracy

±2 mm

12

Weight

About 3.5 Tons

13

Cutting type

Hydraulic cutting

14Material of blade

Cr12, HRC60-62°C

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
