| Product Description: | IBR And Gorrugated Roof Sheet Forming Machine Fully Automatic Double Layer | Production Capacity: | 15-20m/min |
|---|---|---|---|
| Shaft Material: | Material Is 45# Forge Steel | Rollers Material: | GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62（optional） |
| Control System: | PLC | Material Thickness: | 0.3mm-0.8mm |
| Voltage: | 380V 50HZ 3PH | Cutting Blade Material: | Cr 12 Mov,Quenched |
| High Light: | 0.3mm metal roofing sheet forming machine,ibr metal roofing sheet forming machine,fullyautomatic double layer roll forming machine |
||

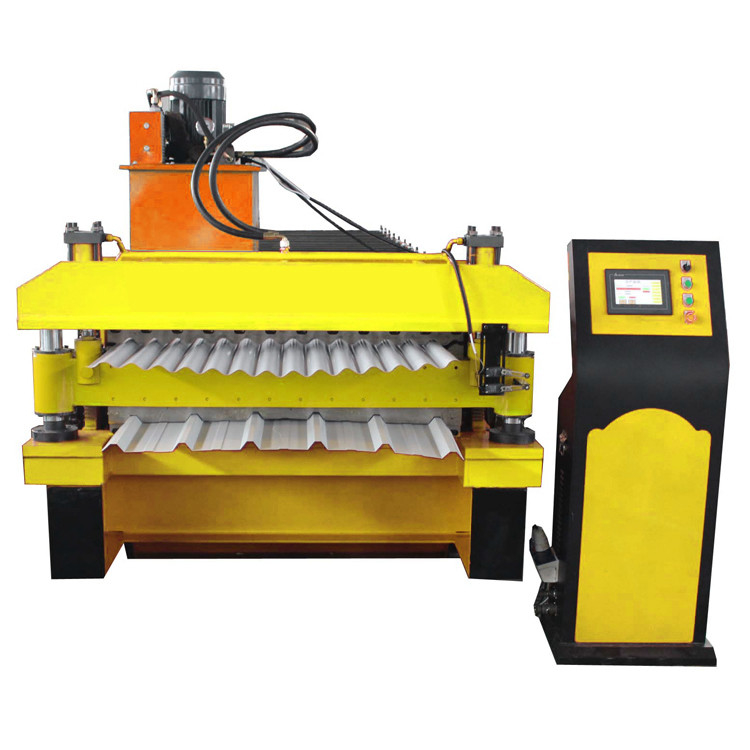

IBR And Gorrugated Roof Sheet Forming Machine Fully Automatic Double Layer
The double layer roll former produces a dual profile on the same machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.
The double layer machine is particularly useful where operating or storage space is a problem.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
roller material | 45# steel plated with chrome |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Way of drive | chaindrive,Gearbox drive(optional) |
| 5 |
diameter of shaft |
70mm |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.25-0.8mm |
|
8 |
thickness |
0.3-0.8m |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | main motor power | 5.5kw |
| 12 | hydraulic station power | 4kw |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
