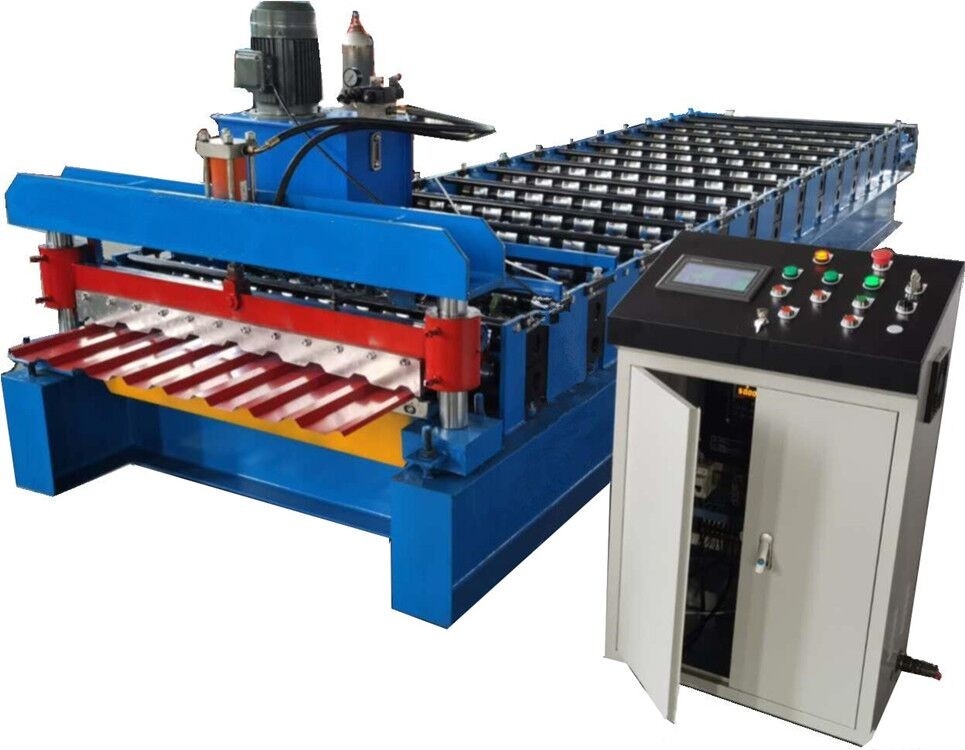

Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic
Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

Large Image :  Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Description: Trapezoid Metal Sheet Roll Forming Machine Automatic Thickness Of Material: 0.3-0.8mm
Shaft Material: Material Is 45# Forge Steel Production Capacity: 0-12m/min
Control System: PLC Warranty Of Core: 2 Years
Voltage: 380V 50HZ 3PH Roller Material: 45#, Cr12, GCr15, GCr12MoV
High Light:

ppal automatic roll forming machine

,

0.8mm metal sheet roll forming machine

,

ppal metal sheet roll forming machine

Trapezoid Metal Sheet Roll Forming Machine Automatic

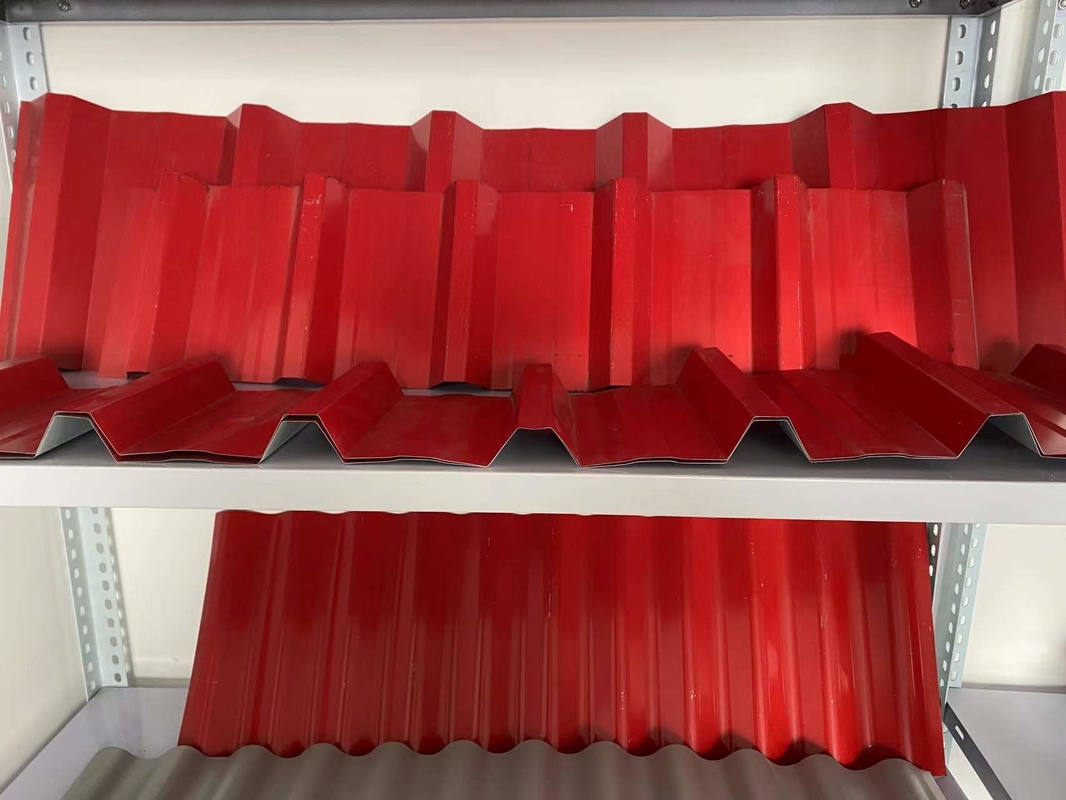

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.



This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.




Equipment Detailed Parameters:



No. Item Unit Parameter Remark
1 Material
Type   PPGI, PPGL, GI, GL, PPAL As requirement
Thickness of Material mm 0.3-0.8mm As requirement
2 Material Width mm 914-1650mm As requirement
3 Production Speed m/min Common speed: 0-12m/min Adjustment
High speed As requirement
4 Effective Width of Product mm 760-1260mm According to drawings
5 Roller Material   45#, Cr12, GCr15, GCr12MoV As design
6 Drive Type   By Chain or Gear or Gearbox
7 Motor Power kW 9.5
8 Brand of Electric Control System   Delta or Siemens or Schneider Selectable
9 Dimension ( L* W * H ) m 8.5*1.45*1.5 Based on design
10 Warranty Month 24




Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
