​840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed Ppgi

​840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed Ppgi

ppgi roof roll forming machine

ibr roof roll forming machine

ppgi sheet roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Contact Us
Request A Quote
Product Details
Product Name:
​840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed
Raw Material:
Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm:
PLC
Rolling Thinckness::
0.3-0.8mm
Shaft Material:
High Grade NO. 45 Carbon Wrought Steel
Cutting Blade:
Cr12 Mould Steel With Quenched Treatment
Color:
As Per Customer Reqeust
Productivity:
20-25m/min
Hydraulic Station Power:
4 KW
Electric Tension:
380V 50 Hz 3 Phase Or As Your Requirement
Highlight:

ppgi roof roll forming machine

,

ibr roof roll forming machine

,

ppgi sheet roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

​840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed



840 trapezoidal sheet roll forming machine popular sell in many countries. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.According to customer’s requirement, the technical parameters of the roll forming machine are different.The design of the roll forming machine is convenient to adjust, for it owns reasonable structure,compact shape, high precision and high efficiency.Corrosion resistance, aging resistance and long service life, the service life of the color steel press type equipment is longer than other's.







Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Rolling thickness 0.2-0.8mm
3 Working Speed 20-25m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

52000 mm*1500 mm*1100 mm
6

Electrical Control System

Delta PLC (can be customized)

7

Drive Motor Power

4KW
8

Hydraulic Station Power

4KW
9

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

10

Cutting Accuracy

±2 mm

11

Driving Mode

Single Chain 1 inch

12

Material of Shaft

70 mm 45#steel forged

13 Material of Roller

45# Steel Finish Machining, Plated Hard



Details Advantages:

1. More beautiful outlook, and color of machine. The inner using 300H frame, which can make sure machine more favorable for the machine using for long time.

2.We can customized all your demands for you, such as voltage, color, logo, inner wheels, frame, Plc.....

3. We have been export machine to many countries, and familiar to many countries demands and market, which can give you more favorable suggestions. And more easy for you import the machine.

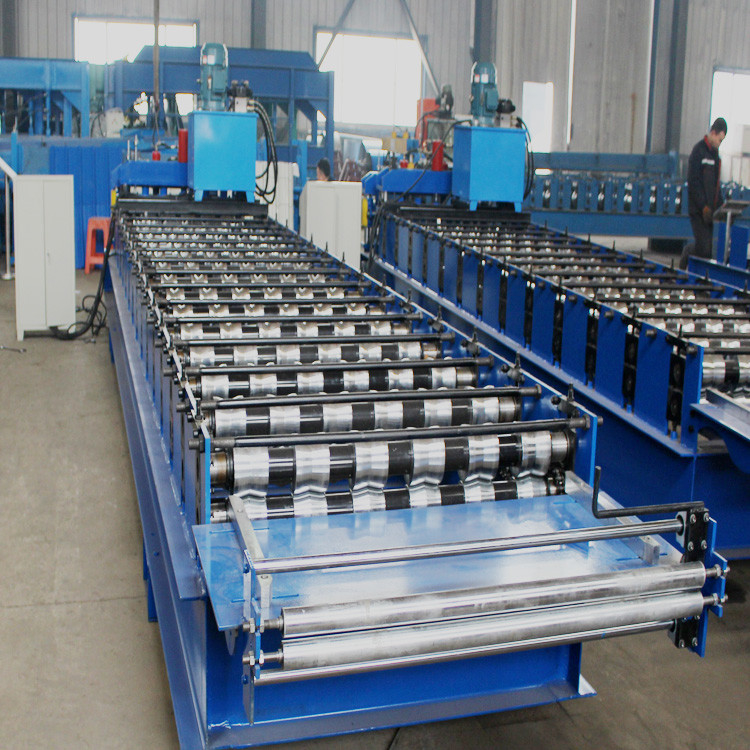

​840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed Ppgi 0
