Product Details:
Payment & Shipping Terms:
|

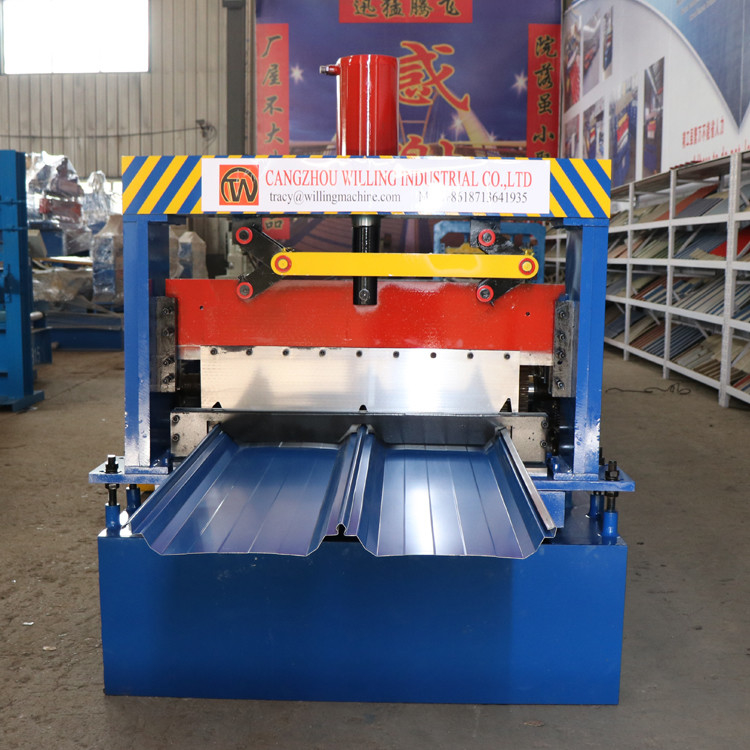

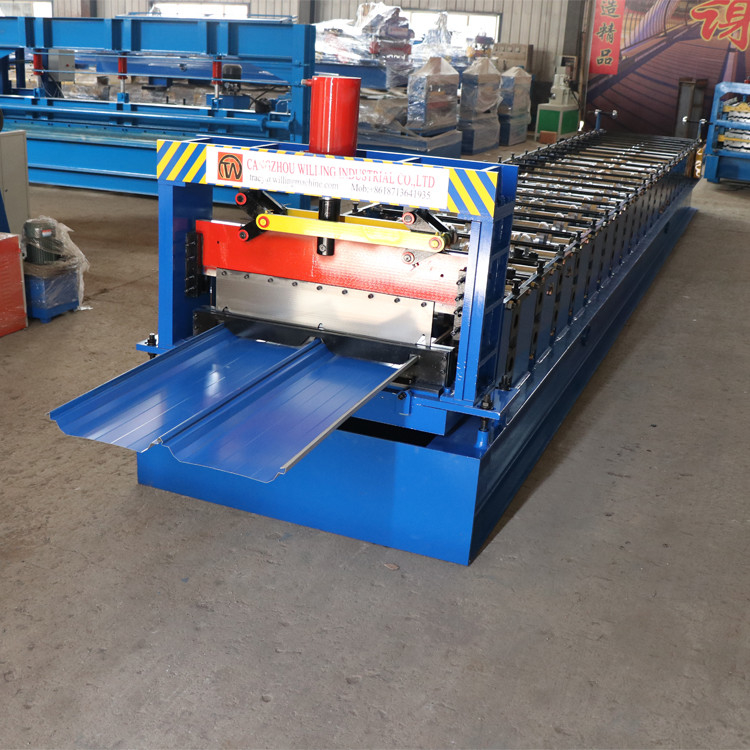

| Product Name: | Standing Seam Roll Forming Mahine For India | Raw Material: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Thickness: | 0.5-0.8MM | Shaft Material: | Material Is 45# Forge Steel |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Use: | Nail Strip Snap Lock Panel Standing Seam |
| Condition: | New | Control System: | PcL |
| High Light: | galvanized sheet roof roll forming machine,0.5mm thickness roof roll forming machine,galvanized standing seam roll former |
||

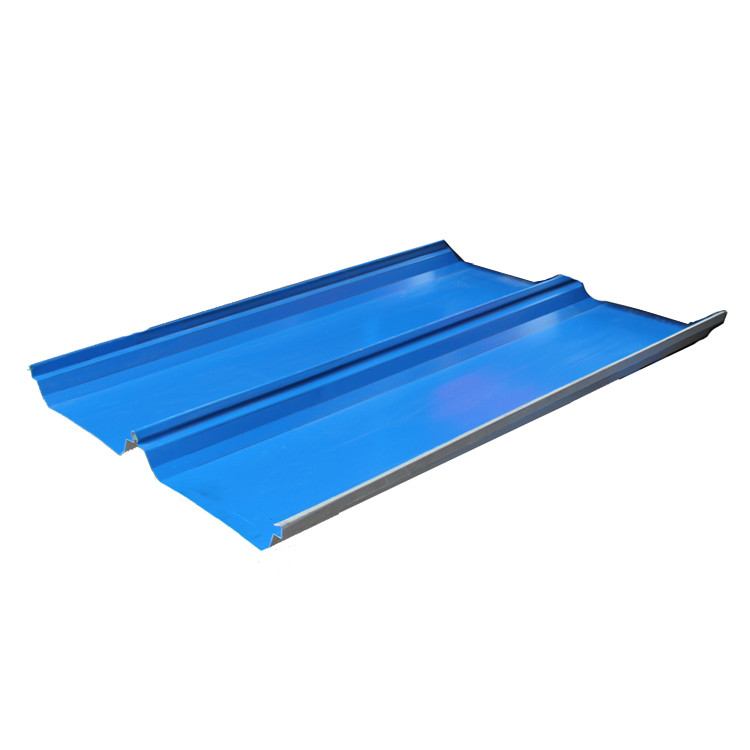

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.
It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil width | About 610mm |
| 2 | Working Speed | 8-15m/min (not including cutting time) |
| 3 | Roller Stations | 20 stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Hardness of roller | HRC 58-62 |
| 6 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 7 | Material of Shaft | 70 mm 45#steel forged |
| 8 | Main Motor Power | 5.5 KW |
| 9 | Electrical Hydraulic Station Power | 4 KW |
| 10 | Hydraulic Station Pressure | 12.0 Mpa |
| 11 | Electrical Control System | PLC Panasonic |
| 11 | Material of Cutter | Cr12 MOV |
| 12 | Hardness of cutter | HRC:58-62 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.5-0.8mm |
| 17 | Power Supply | 415V, 50HZ, 3 PHASES |
| 18 | Cutting accuracy | ±2mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
