High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

ppgi glazed tile cold roll forming machine

hydraulic glazed tile cold roll forming machine

hydraulic cutting glazed roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Met Tile / Glazed Tile

Contact Us
Request A Quote
Product Details
Product Name:
Glazed Tile Roll Forming Machine High Speed Hydraulic Cutting
Raw Material:
Galvalume, Galvanized, PPGI, Aluminum,Copper
Voltage:
380V
Use:
Roof Panel
Warranty:
1 Year
Materials Thickness:
0.25-0.8 Mm
Electrical Hydraulic:
4 KW
Cutting Accuracy:
±2 Mm
Highlight:

ppgi glazed tile cold roll forming machine

,

hydraulic glazed tile cold roll forming machine

,

hydraulic cutting glazed roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
35 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

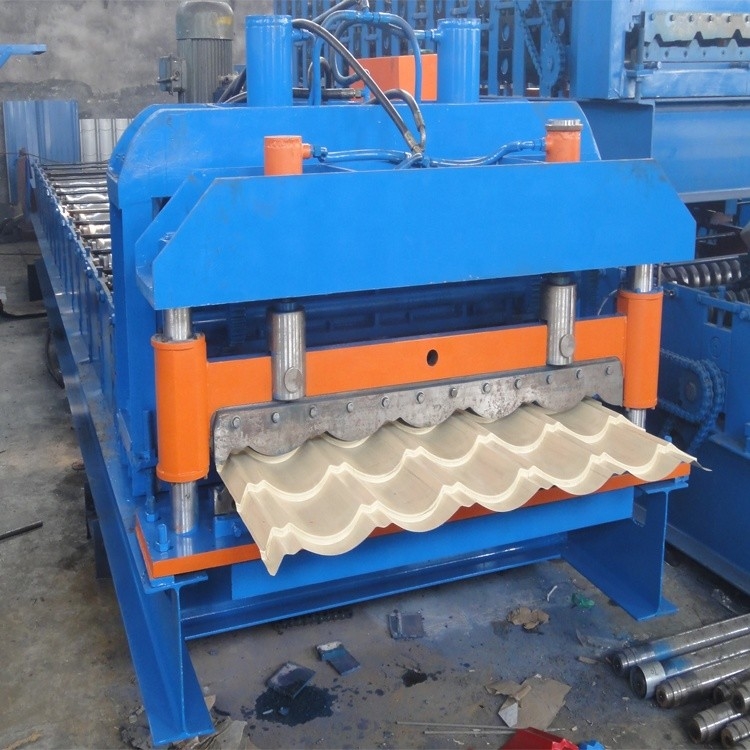

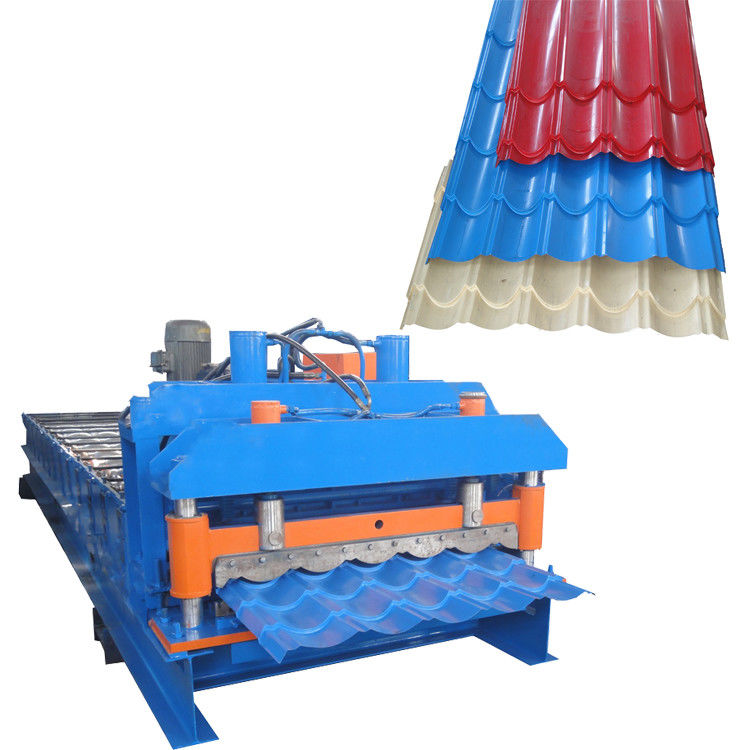

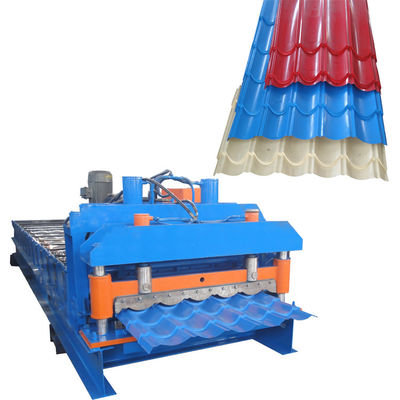

Glazed Tile Roll Forming Machine High Speed Hydraulic Cutting



Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.





Profile



Specification



Material Thickness
0.25-0.8 mm
Working Speed
8-15m/min
Main servo
5.5kw
Hydraulic Station Power
4 kw
Electrical Control System
PLC
Suitable Material
PPGI (235Mpa)
Material of Cutter
Cr12
Driving Mode
single chain 1 inch
Cutting accuracy
±2 mm
Power Supply
380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure
12.0 Mpa





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
