Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Speed Roller Shutter Door Roll Forming Machine Full Auto | Forming Stations: | According To You Profile Drawings |
|---|---|---|---|
| Rollers Material: | GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62（optional） | Way Of Drive: | Chain Drive,Gearbox Drive(optional) |
| Voltage: | 380V 50Hz 3phases | Whole Line Working Speed: | 0-25m/min |
| Length Precision: | ±0.3mm/10m | PLC: | Yaskawa,Siemens,Mitsubishi, Panasonic (option Brand) |
| High Light: | chaindrive rolling shutter door roll forming machine,25m/min rolling shutter door roll forming machine,gl shutter door machine |
||

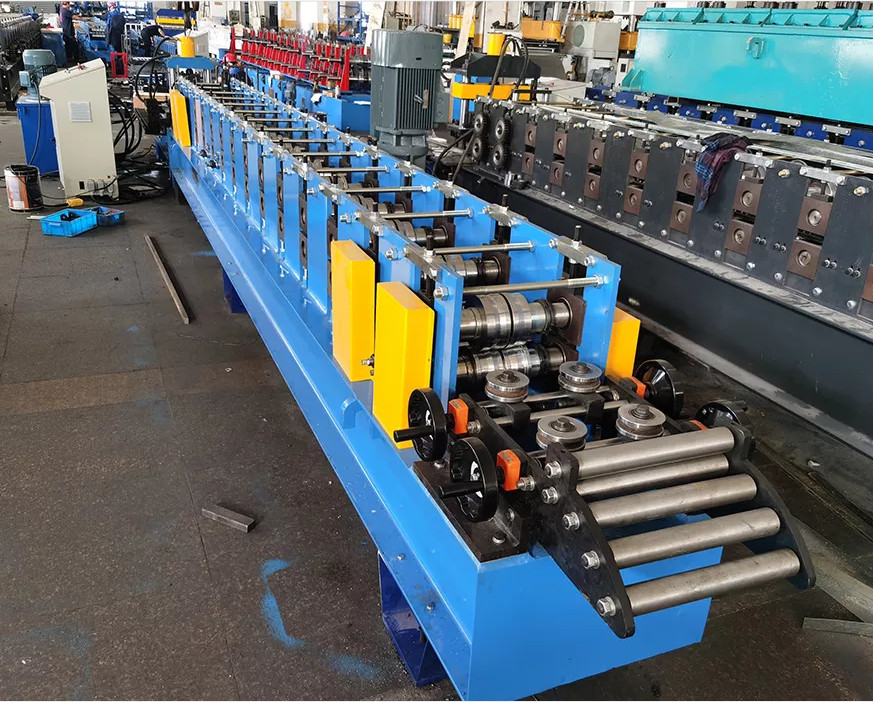

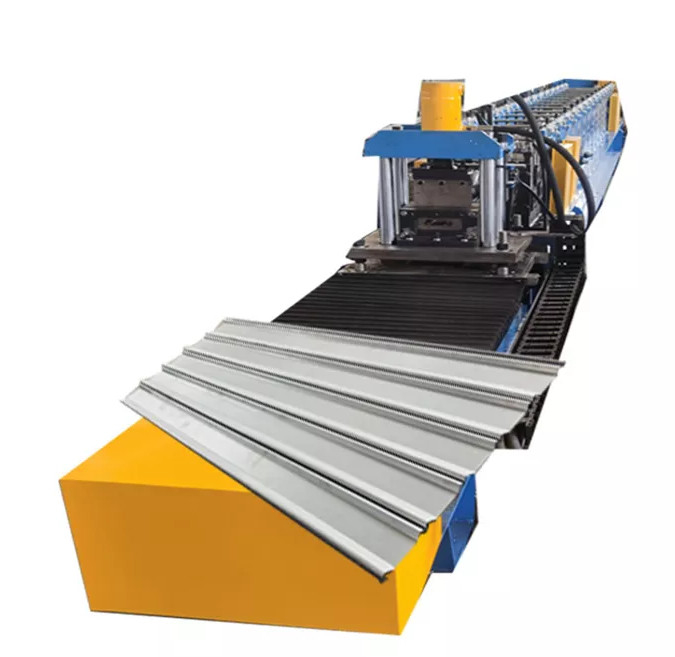

High Speed Roller Shutter Door Roll Forming Machine Full Auto
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.8mm - 1.0 mm |
| 3 | Working Speed | 20-30 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Inverter |
Yaskawa,Siemens,Mitsubishi, panasonic (option Brand) |
| 6 | PLC | Yaskawa,Siemens,Mitsubishi, panasonic (option Brand) |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Cutting system |
pre cutting,hydraulic post cutting,servo Tracking cutting |
| 9 |
Punching system |
hydraulic punching ,punching press machine(option) |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Length precision |
±0.3mm/10m |
| 12 |
Driving Mode |
Gear Wheel |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
