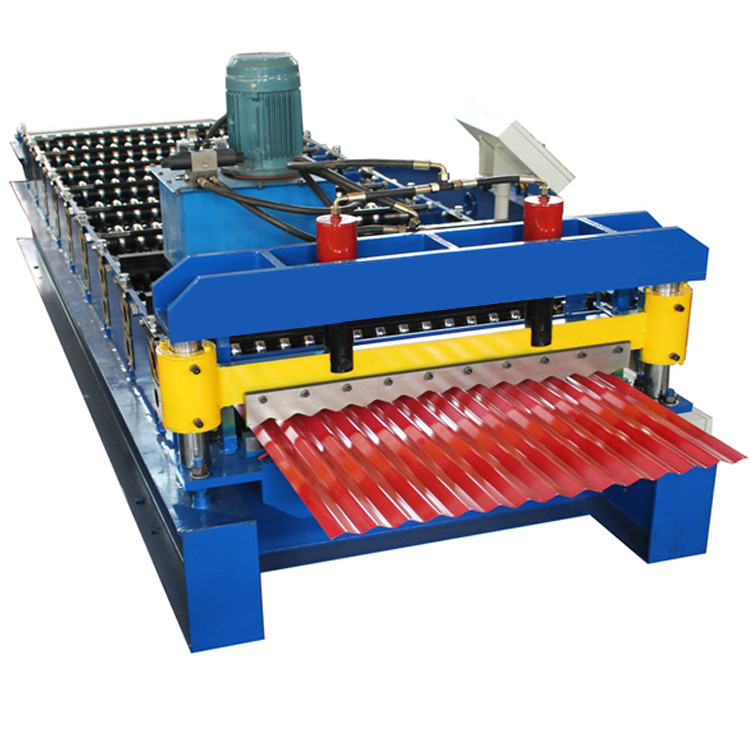

1.25'' Low Ribs Sheet Roof Roll Forming Machine Hydraulic System Plc

roof roll forming machine plc

1.25 inch roof roll forming machine

1.25" roofing sheet roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

1.25'' Low Ribs Roofing Sheet Roll Forming Machine Hydraulic System

Use:

Roofs And Walls Panel

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation

Control System:

PLC

Raw Material:

PPGI/Galvanized Sheet

Main Frame:

350 H Steel

Cutting Type:

Hydraulic Cutting

Cutting Accuracy:

±2 Mm

Highlight:

roof roll forming machine plc

1.25 inch roof roll forming machine

1.25" roofing sheet roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price

Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price

Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price

86-317-2016816

Contact Now

Product Description

1.25'' Low Ribs Roofing Sheet Roll Forming Machine Hydraulic System

The lower corrugations of 1.25″ Corrugated make it primarily a wall panel – though it has been chosen on roofs with special consideration.

This machine is manufactured from high tensile steel and to the

strictest standards using high precision welding. The heavy duty,

high tensile steel, single columns are chromium plated for maximum life span.

1.25″ Corrugated is most popular in non-painted Galvalume or Galvanized finish, though painted finishes are available.

Profile
1.25'' Low Ribs Sheet Roof Roll Forming Machine Hydraulic System Plc 0

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15 m/min
Roller Stations	15 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
