Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive

Certification
China Cangzhou Famous International Trading Co., Ltd certification
China Cangzhou Famous International Trading Co., Ltd certification
Customer Reviews
The machine is great and easy to operate.

—— Behzad

The machine is fast. this is a great product,Very good and realiable company!

—— Abdo Omar

machine 10 years, no problem, still working very well.

—— Mahesh

Cangzhou willing industrial co. Ltd. Is making sense in optimizing development of businesses in Africa.

—— Richard Billa Tibilla

The machine is working and it's great

—— Samuel

I'm Online Chat Now

Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive

Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive
Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive

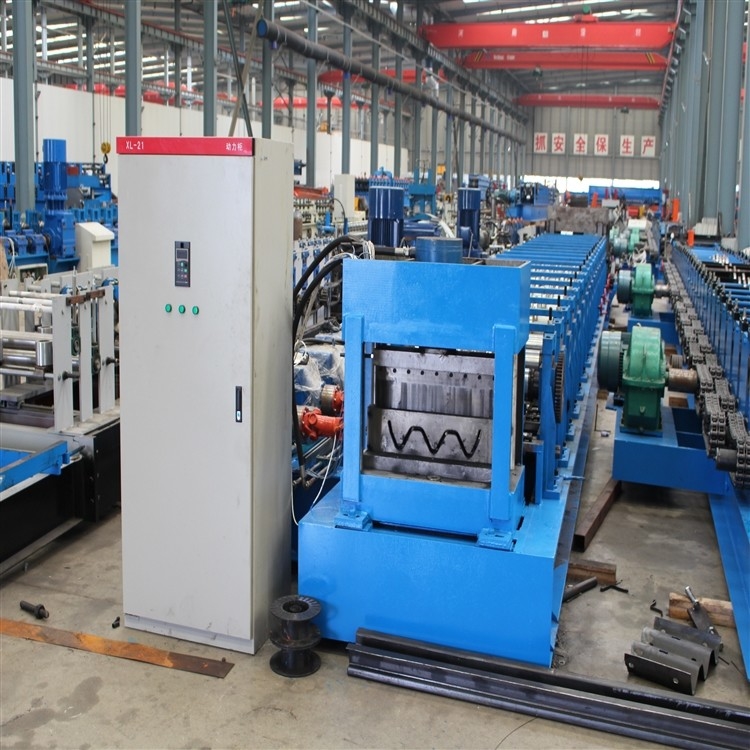

Large Image :  Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 60 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Highway Guardrail Roll Forming Machine Corrugated Sheet Steel Beams Voltage: 380V 50Hz 3phases,380V Or As Customize
Drive Type: Chain Drive Working Speed: 8-12 M/min
Raw Material: Steel Feeding Width: 914-1250mm
Control System: PLC Control Weight: 4500 Aboutkg
High Light:

chain drive highway guardrail forming machine

,

914mm highway guardrail forming machine

,

chain drive corrugated roll forming machine

Highway Guardrail Roll Forming Machine Corrugated Sheet Steel Beams



Highway Guardrail Roll Forming Machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.



Specification



weight capacity of decoiler
6-9 T
machine stand
welded shape steel
type of forming machine
wallboard type with chain transmissionfloor deck
diameter of shaft
85mm
orming speed:
10-18m/min
roll station
19 stations(according profile)
material of roller
45 steel
type of cutting
hydraulic cutting
Dimension
5800*1200*1500
material of cutting blade
Cr12
thickness of steel coil
1.5-3.0 mm
Control system
PLC brand
Warranty
1 year

Corrugated Sheet Steel Beams 914mm Highway Guardrail Forming Machine Chain Drive 0





Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
