Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Roofing Tile Sheet Panel Roll Forming Making Machine Plc Control | Raw Material: | Galvalume, Galvanized, PPGI, Aluminum |
|---|---|---|---|
| Control SystePLCm: | PLC | Warranty: | 1 Year |
| Rolling Thinckness: | 0.3-0.8mm | Voltage: | 380V 50Hz 3phases Or As Your Requirement |
| Motor Power: | 4KW | Feeding Width: | 1220mm |
| Material Thickness: | 0.25-0.8 Mm | Hydraulic Station Pressure: | 12.0 Mpa |
| High Light: | plc control roof roll forming machine,0.8mm roof roll forming machine,plc control tile roll forming machine |
||

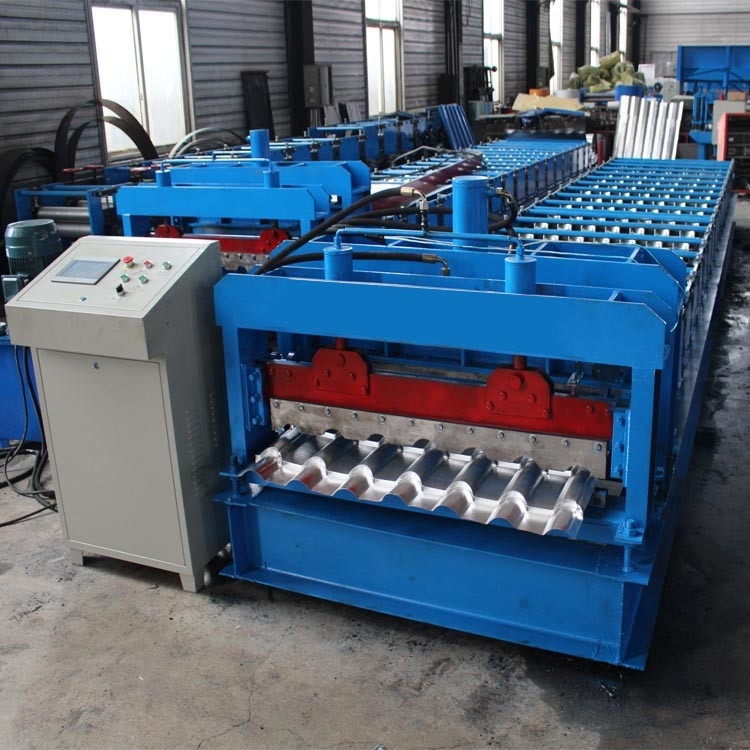

Aluminum Roofing Tile Sheet Panel Roll Forming Making Machine Plc Control
This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability. This machine can be customized.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 8-30m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Electrical Control System |
Delta PLC (can be customized) |
| 6 |
Drive Motor Power |
4KW |
| 7 |
Hydraulic Station Power |
4KW |
| 8 |
Power Supply |
380V, 50HZ, 3 PHASES(can be customized) |
| 9 |
Cutting Accuracy |
±2 mm |
| 10 |
Driving Mode |
Single Chain 1 inch |
| 11 |
Material of Shaft |
70 mm 45#steel forged |
| 12 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.
Packaging & Delivery
Important Components Wiped with Anti Rust Oil, Rollers and Shafters covered by foam film,Hydraulic station PLC control Box Spare parts and some small parts packed in plywood box,All Components Fixed by steel wire in Container.
