0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency

0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency

380v double layer roll forming machine

0.3mm double layer roll forming machine

corrugated double layer roofing sheet machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

Double Layer

Contact Us
Request A Quote

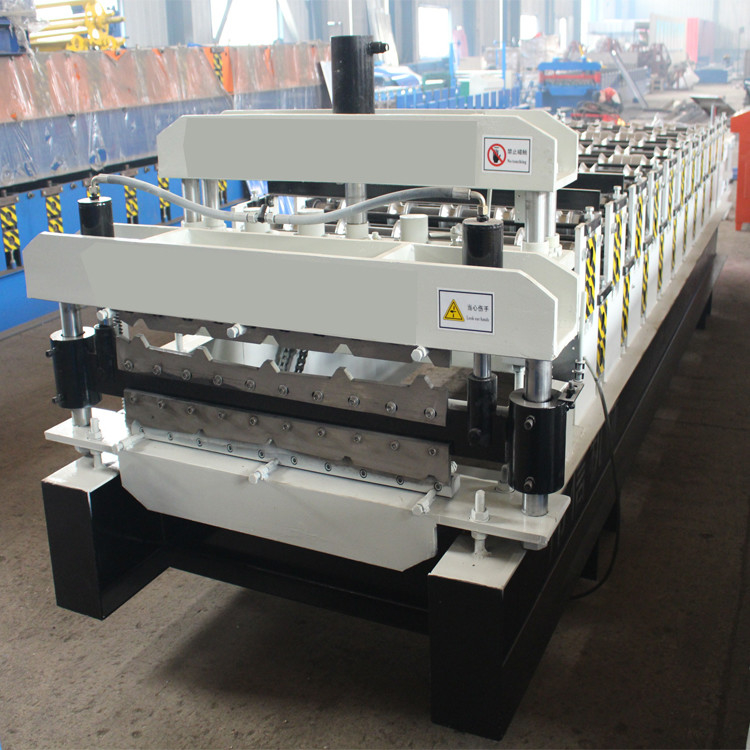

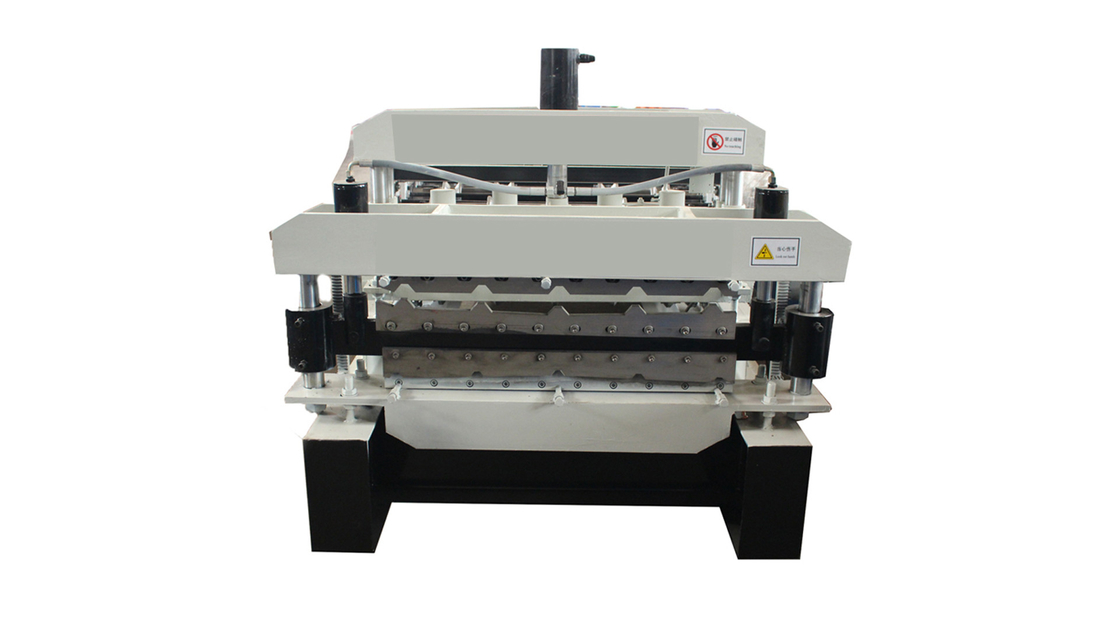

0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency
0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency 0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency
Product Details
Product Description:
Double Layer Corrugated Roofing Sheet Metal Roll Forming Machine High Efficiency
Thickness:
0.3-0.8mm
Shaft Material:
Material Is 45# Forge Steel
Dimension(l*w*h):
6500*1200*1500 Mm
Control System:
PLC
Speed:
8-15M/Min
Voltage:
380V 50HZ 3PH
Weight:
3500 Kg
Highlight:

380v double layer roll forming machine

,

0.3mm double layer roll forming machine

,

corrugated double layer roofing sheet machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, L/C, D/A, D/P, T/T
Supply Ability
35 sets per month
RELATED PRODUCTS
Good price 0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine online

0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine

Get Best Price
Good price Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min online Video

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Get Best Price
Good price Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min online Video

Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min

Get Best Price
Good price Corrugated and IBR Double Layer Roll Forming Machine Full Automatic Plc Control online Video

Corrugated and IBR Double Layer Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description
Double Layer Corrugated Roofing Sheet Metal Roll Forming Machine High Efficiency
This model machine can produce two different samples with fast speed and high quality,which can save more space and money than using two different machines.
These two samples also can be customized. Just send us your smaples, we will design and produce the double deck machine for you.Sincerely hope we can work with you to provide you with cost-effective products, and quality service.






Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Warranty of core components 1 Year
3 Rows of rollers 15 rows & 16 rows
4 Dimension 6500*1200*1500 mm
5
Cutting power

3kw
6
Main Motor Power
 3kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

 8-15m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
12 Middle plate 16mm



Application



The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The plate rolled by this machine has the characteristics of flatness, uniform corrugation and high utilization rate.



Advantage



Double-layer tile machine equipment adopts PLC control system. The operation is simple and easy to use. The double-layer laminated tile machine adopts advanced automatic control software.  In order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of maintenance, maintenance, mechanical debugging, and convenient mold replacement.



0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency 0
