0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic

0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic
0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic

Large Image :  0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: IBR Trapezoid Roofing Sheet Making Machine Hydraulic Raw Material: PL,GL ,PPGL, PPGI
Working Speed: 16-20m Per Min Material Thickness: 0.25 Mm - 0.9mm
Voltage: 380V 60Hz 3phases Condition: New
Drive Motor Power: 4KW Electric Shear Power: 4KW
Roller Material: 45# Steel Plated Core Components: Motor, Bearing, Gear, Pump, Engine, PLC
High Light:

ppgi ibr roofing sheet making machine

,

0.9mm ibr roofing sheet making machine

,

ppgi ibr roof sheet forming machine

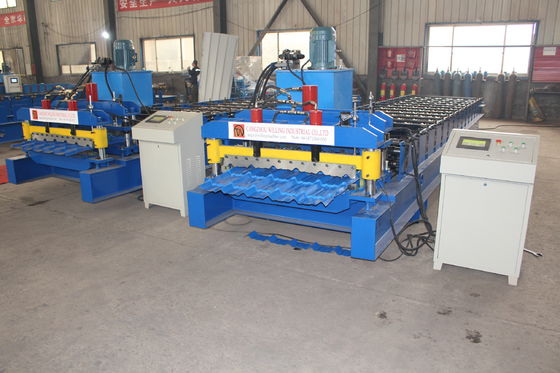

IBR Trapezoid Roofing Sheet Making Machine Hydraulic


This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.
The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

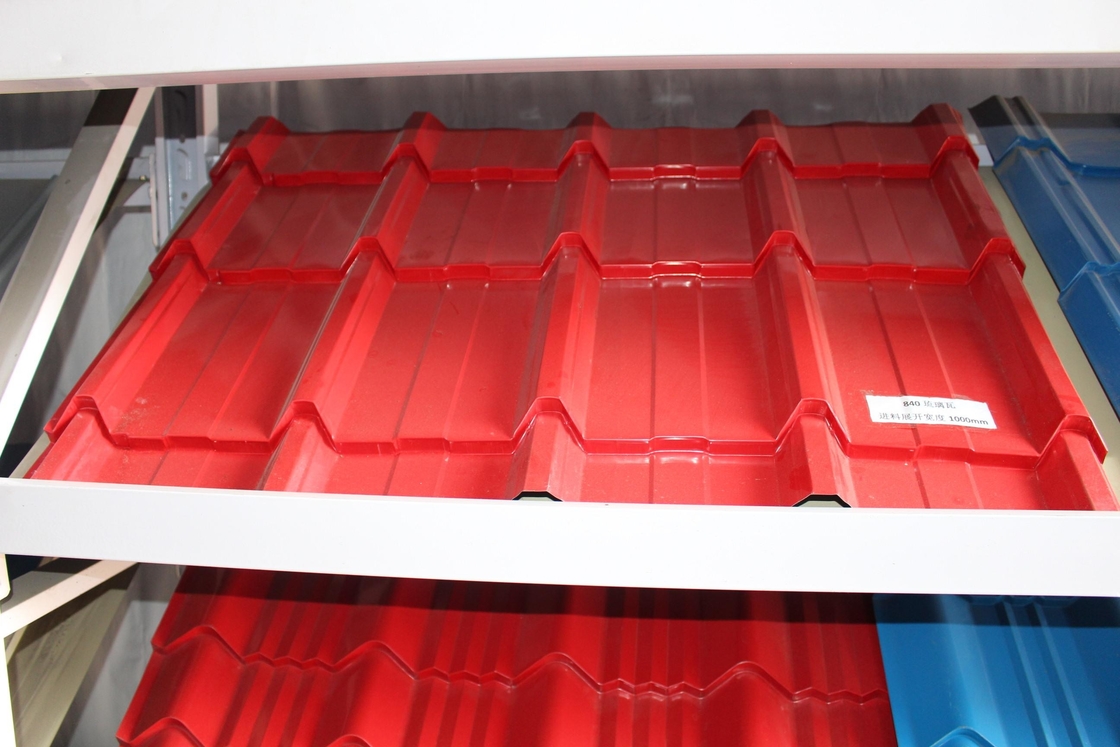

For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.




Specification



No.ItemDescription
1CoilPL,GL,PPGI,PPGL
2Raw Material Thickness0.25 mm - 0.9 mm
3Working Speed15-20 m/min
4Roller Station15 Stations
6Machine Weight4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

4 KW
9

Electric Shear Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 2 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14Material of Roller

45# Steel Finish Machining, Plated Hard


Application
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.



Advantage
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers




0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic 0
