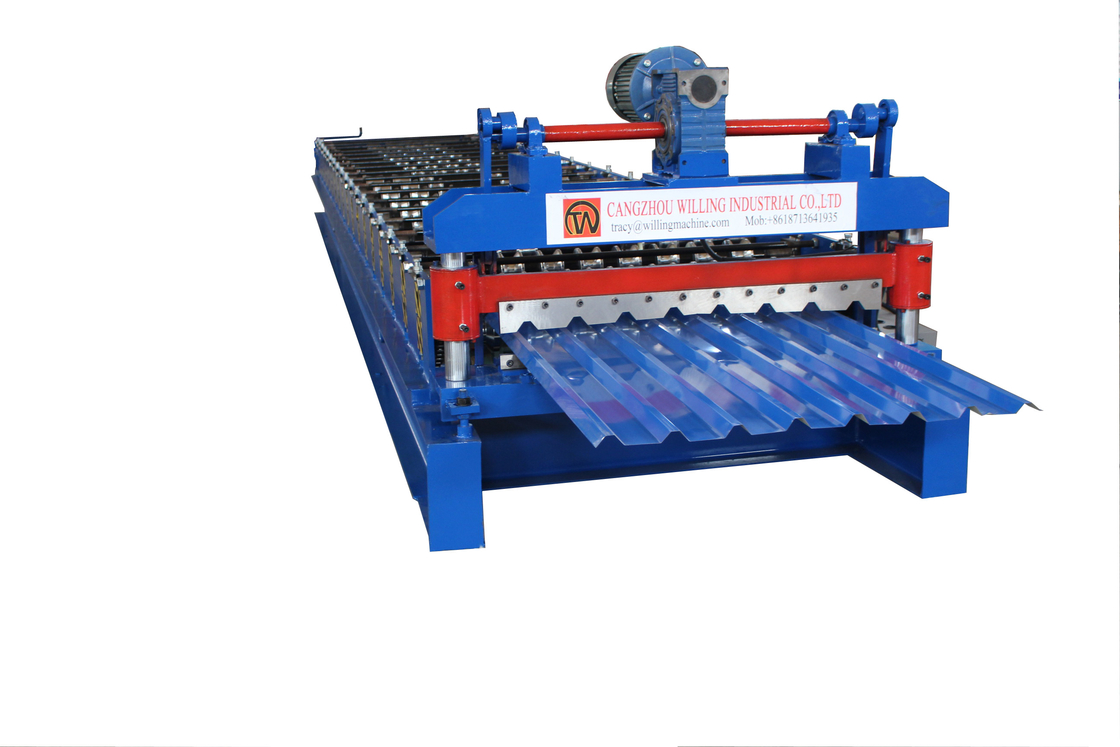

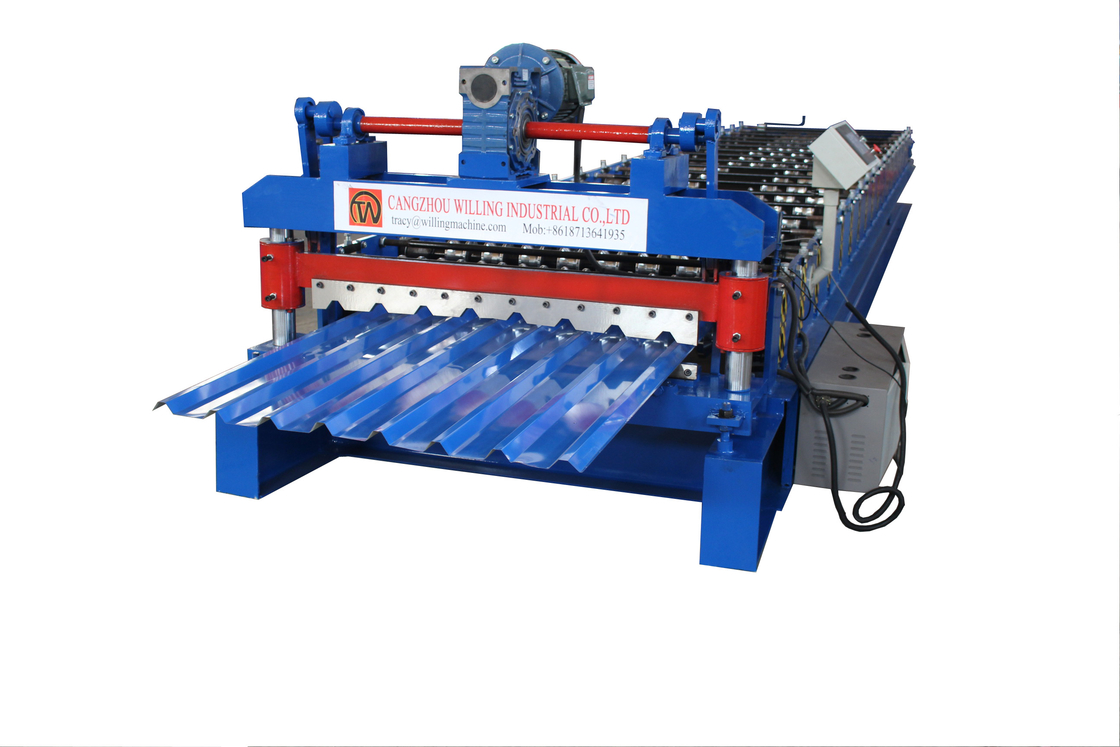

Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control
Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

Large Image :  Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Single layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Electric Shear IBR Roof Tiles Roll Forming Machine PLC Control Raw Material: PL,GL ,PPGL, PPGI
Working Speed: 16-20m Per Min Material Thickness: 0.25 Mm - 0.9 Mm
Voltage: 380V 50Hz 3phases Condition: New
Drive Motor Power: 4KW Electric Shear Power: 4KW
High Light:

roof roll forming machine plc control

,

50hz roof roll forming machine

,

plc ibr roof sheet forming machine

Electric Shear IBR Roof Tiles Roll Forming Machine PLC Control



The PLC control of the electric shearing machine IBR forming machine is a mechanical equipment that uses modern PLC control technology to realize programmed and automated production. The full-automatic tile press can be installed and used separately, or it can be equipped with automatic uncoiler, automatic packaging machine and other production lines.



Specification



No. Item Description
1 Coil PL,GL,PPGI,PPGL
2 Raw Material Thickness 0.25 mm - 0.9 mm
3 Working Speed 15-20 m/min
4 Roller Station 15 Stations
5

Dimension (L*W*H)

4500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

4 KW
9

Electric Shear Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 1 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard


Application


This product is widely used in many fields. For example, in factories, warehouses, stadiums, exhibition halls, theaters, laboratories, and prefabricated houses, color steel plates have the advantages of simple installation, durability, long life, corrosion resistance, and good appearance, so they are also widely used in the chemical construction industry.

Advantage



Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
