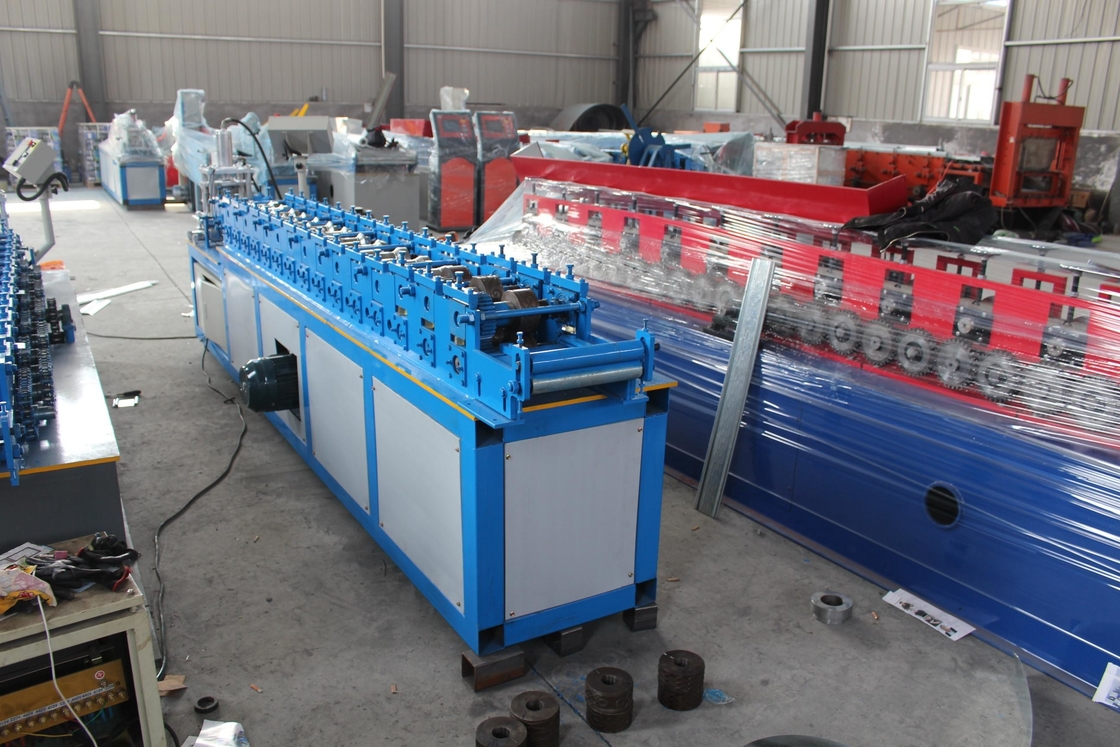

1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine

1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine
1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine 1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine

Large Image :  1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Steel Roller Shutter Door Roll Forming Making Machine Galvanized Raw Material: Galvalume, Galvanized, PPGI
Motor Powered: 4KW Hydraulic Station Power: 4KW
Voltage: 380V 50Hz 3phases Material Of Main Shaft: 45# Steel Finishing Machining And Then Slack
Hydraulic Station Pressure: 12.0 Mpa Electrical Control System: Delta PLC
High Light:

1mm roller shutter door roll forming machine

,

delta roller shutter door roll forming machine

,

delta roller shutter machine

Steel Roller Shutter Door Roll Forming Making Machine Galvanized



Rolling shutter door forming machine is made by cold bending forming process.It uses less steel to complete the specified load that needs to be achieved. It does not rely on increasing the use of plates or improving materials. Mechanical properties to meet load requirements.



This perforated steel rolling shutter slat roll forming machine consists a manual decoiler, a roll fomer, transmission system, a punching tool is optional for punching slots on some types of steel roller shutter slats, a cutting tool (both a hydraulic cutter and a fly-saw cutter is available), a PLC control cabinet, a hydraulic oil pump will be equipment for hydraulic cutting tool and runout tables.



The shutter door is a series of multi-joint movable doors, in a fixed slideway, the door is rotated up and down with the reel above the door as the center. It is generally installed at a location where it is inconvenient to use wall separation. Rolling shutter doors are suitable for commercial facades, garages, factories and mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the ground door has a convenient and quick opening effect.





Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.8mm - 1.0 mm
3 Working Speed 20-30 m/min
4 Roller Station 12 Stations
6 Machine Weight 4 tons
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

4 KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 2 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard









1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine 0
