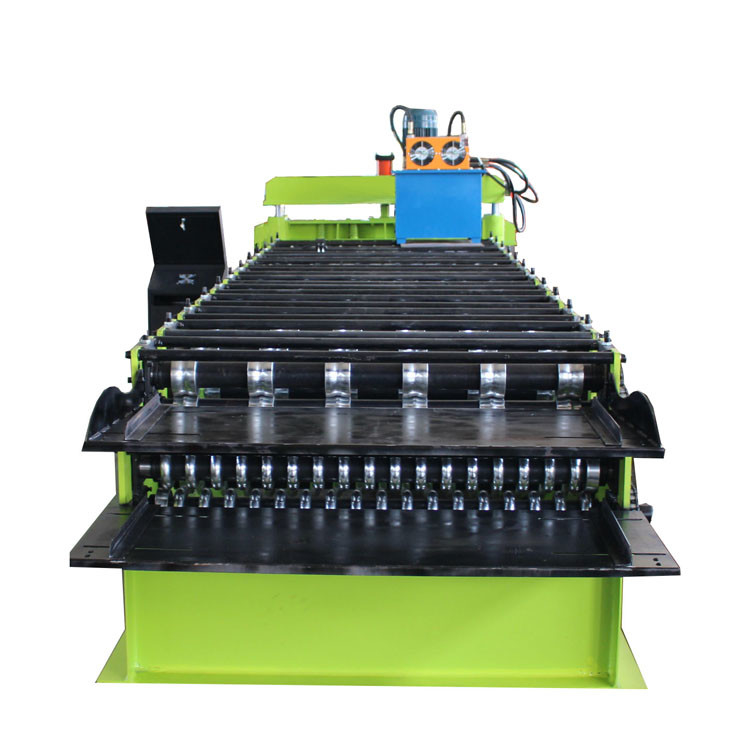

3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated

3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated

0.25mm double layer roll forming machine

3ph glazed tile roll forming machine

glazed double layer roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

Double Layer

Contact Us
Request A Quote
3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated
3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated 3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated 3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated
Product Details
Product Description:
Double Layer Color Steel Roll Forming Machine Glazed Tile And Corrugated
Thickness:
0.25-0.8mm
Shaft Material:
Material Is 45# Forge Steel
Dimension(l*w*h):
9500*1550*1500mm
Control System:
PLC
Speed:
8-15M/Min
Voltage:
380V 50HZ 3PH
Weight:
6.5T
Highlight:

0.25mm double layer roll forming machine

,

3ph glazed tile roll forming machine

,

glazed double layer roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
35 sets per month
RELATED PRODUCTS
Good price IBR and Corrugated Double Layer Roof sheet Roll Forming Machine For Ppgi Panel Roof online Video

IBR and Corrugated Double Layer Roof sheet Roll Forming Machine For Ppgi Panel Roof

Get Best Price
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Double Layer Color Steel Roll Forming Machine Glazed Tile And Corrugated

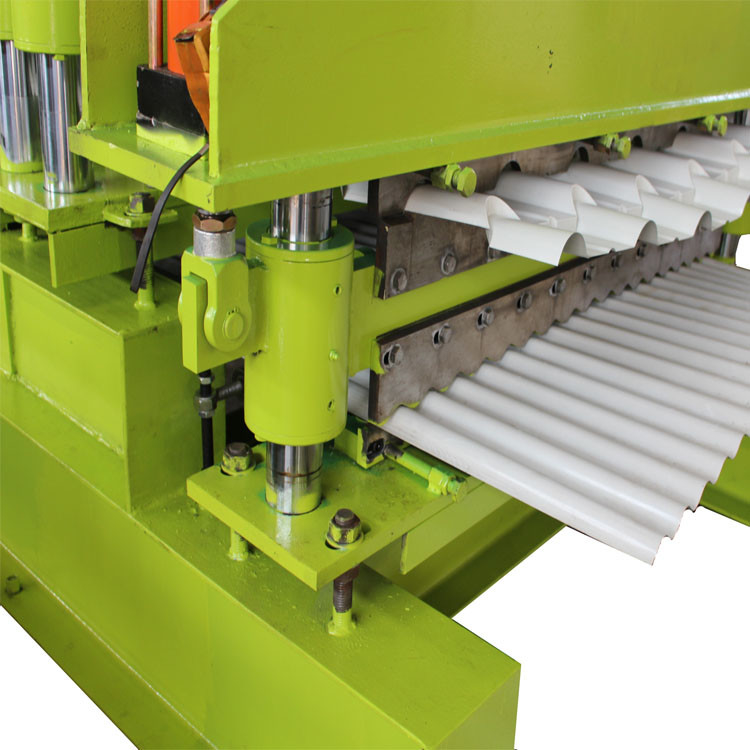

 The double-layer roof roll forming machine can make glazed and corrugated type in one machine, which can save more space and money than using two different machines.




Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Width of the raw material 1250mm
3 Rows of rollers 15 rows & 16 rows
4 Dimension 7300*1550*1200mm
5

Main servo

7.5kw
6 Hydraulic station power 11kw
7 Thickness of raw material 0.25-0.8mm

8

Productivity

 8-15m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The plate rolled by this machine has the characteristics of flatness, uniform corrugation and high utilization rate.



Advantage



Double-layer tile machine equipment adopts PLC control system. The operation is simple and easy to use. The double-layer laminated tile machine adopts advanced automatic control software. Realize production information management. In order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of maintenance, maintenance, mechanical debugging, and convenient mold replacement.



3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated 0
