Ibr Roof 0.8mm Sheet Roll Forming Machine Double Deck Full Automatic

0.8mm sheet roll forming machine

ibr sheet roll forming machine

0.8mm double layer roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Full Automatic IBR Roof Sheeting Roll Forming Machine With Double Deck

Voltage:

380V 50Hz 3phases

Weight:

5.5kg

Key Selling Points:

Easy To Operate

Material Thickness:

0.25-0.8mm

Control System:

PCL

Material Of Main Shaft:

45 Steel Forged

Main Motor Power:

5.5KW

Highlight:

0.8mm sheet roll forming machine

ibr sheet roll forming machine

0.8mm double layer roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negoiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

30 sets per month

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

Full automatic IBR roof sheeting roll forming machine with double deck

One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.

We can design the machine according to your specification and profile drawing.

This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. This type of roof sheet has advantage including beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15 m/min
Roller Stations	13/15
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	5.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

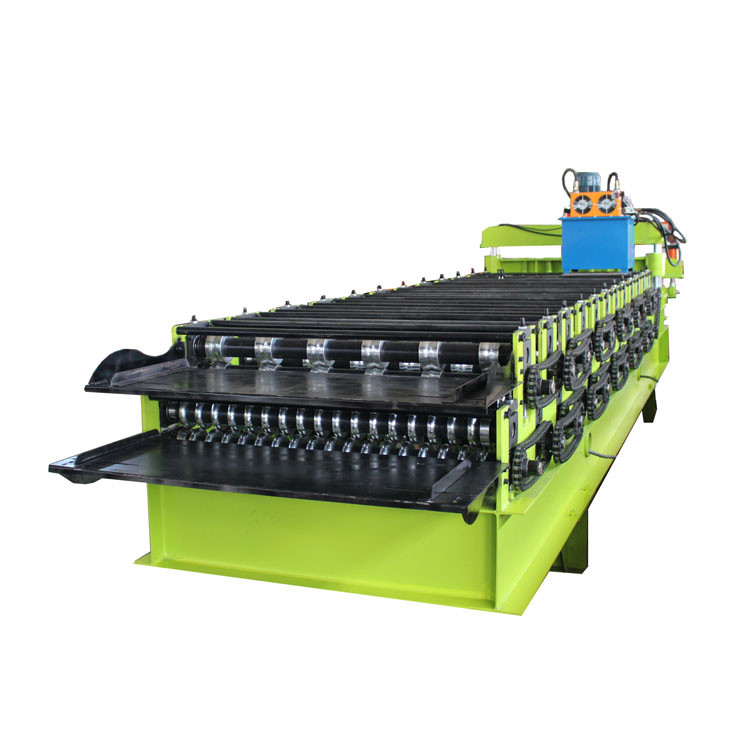

Ibr Roof 0.8mm Sheet Roll Forming Machine Double Deck Full Automatic 0
