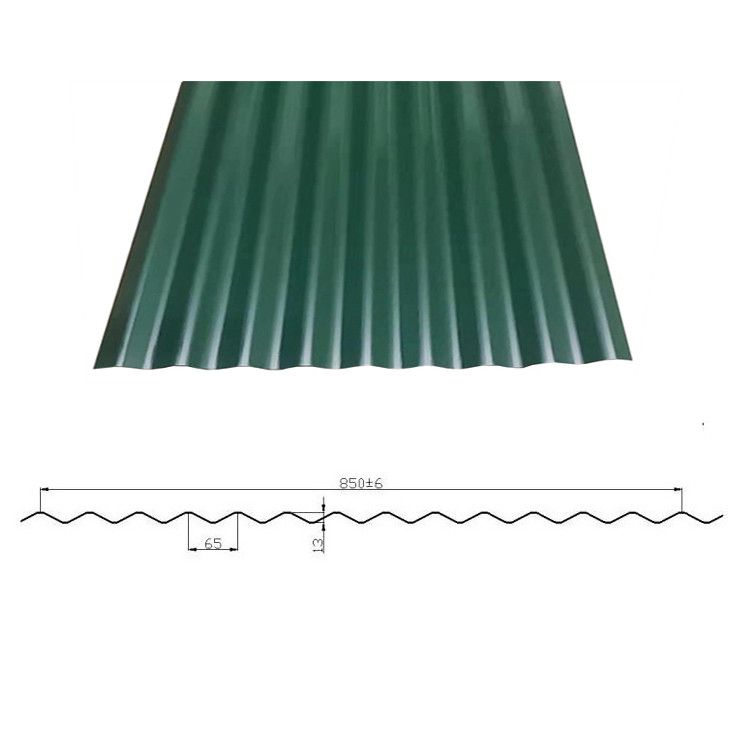

Colored Steel Wall 850mm Corrugated Steel Sheet Making Machine 15m/Min

850mm corrugated steel sheet making machine

15m/min corrugated steel sheet making machine

chain driving roof sheet making machine

Place of Origin:

China

Brand Name:

cangzhou willing

Certification:

CE,ISO

Model Number:

850

Request A Quote

Product Details

Thickness:

0.3-0.8MM

Main Frame:

350 H Steel

Product Name:

Corrugated Steel Sheet Making Colored Steel Wall Roof Roll Forming Machine

Forming Speed:

8-15m/min

Cutting Accuracy:

±2 Mm

Roller Material:

45# Steel

Cutting Type:

Hydraulic Cutting

Shaft Material:

High Grade No.45 Forged

Highlight:

850mm corrugated steel sheet making machine

15m/min corrugated steel sheet making machine

chain driving roof sheet making machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negoiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

30 sets per month

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price

Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price

Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price

86-317-2016816

Contact Now

Product Description

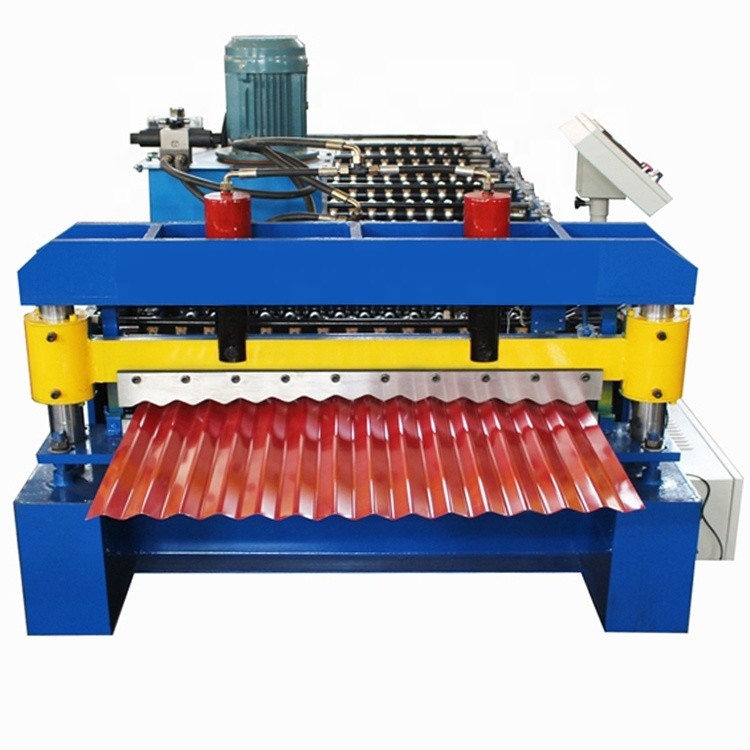

Corrugated Steel Sheet Making Colored Steel Wall Roof Roll Forming Machine

The corrugated roll forming machine is a production-type machine composed of several parts such as discharging, forming, post-forming and cutting. The colored panels produced by it have smooth and beautiful appearance, uniform paint pattern, high strength, and durability.

It has advantage of pretty appearance, durable using and so on

Equipment Detailed Parameters:

No.	Item	Description
1	Coil	Width:1000mm
2	Forming speed	8-15 m/min (not including cutting time)
3	Roller Stations	9 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Material of Main Shaft	45# steel finishing machining and then slack quench processed
6	Material of Shaft	70 mm 45#steel forged
7	Hydraulic Station Power	3 KW
8	Hydraulic Station Pressure	12.0 Mpa
9	Electrical Control System	DELTA PLC
10	Material of Cutter	GCr12
11	Driving Mode	single chain 0.6 inch
12	Material Thickness	0.3-0.8mm
13	Power Supply	380V, 60HZ, 3 PHASES
14	Cutting accuracy	±2 mm

Application

They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, walls and roofs.
