Plc Control 840mm Trapezoid Tile Forming Machine

Plc Control 840mm Trapezoid Tile Forming Machine
Plc Control 840mm Trapezoid Tile Forming Machine Plc Control 840mm Trapezoid Tile Forming Machine Plc Control 840mm Trapezoid Tile Forming Machine Plc Control 840mm Trapezoid Tile Forming Machine Plc Control 840mm Trapezoid Tile Forming Machine

Large Image :  Plc Control 840mm Trapezoid Tile Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: IBR 840
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: PLC Control 840 Model Trapezoid Roof Tile Roll Forming Machine Raw Material: Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm: PLC Thickness: 0.25-0.8 Mm
Tile Type: Roll Forming Machine/building Material Machinery Condition: New
Color: As Per Customer Reqeust Motor Power: 3.5KW
Raw Material Width: 1000mm Machine Weight: 4 T
High Light:

trapezoid tile forming machine

,

plc tile forming machine

,

roof ppgi tile roll forming machine

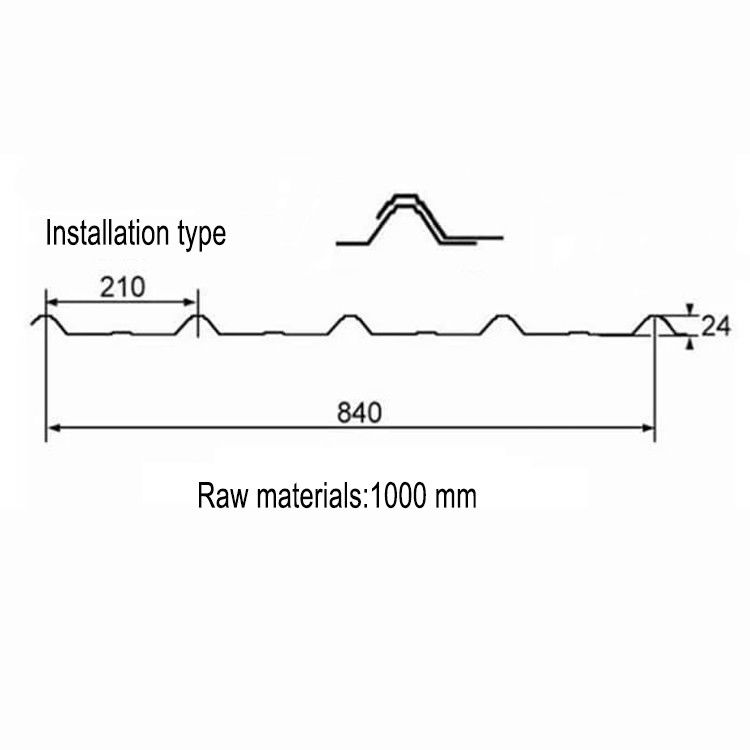

6 Rib 840 Model IBR Roof Roll Forming Machine

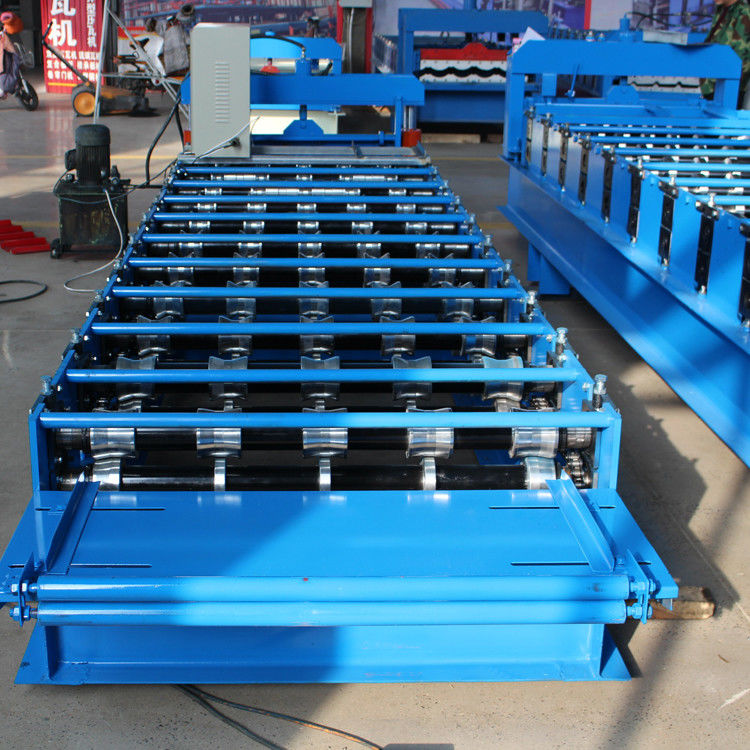

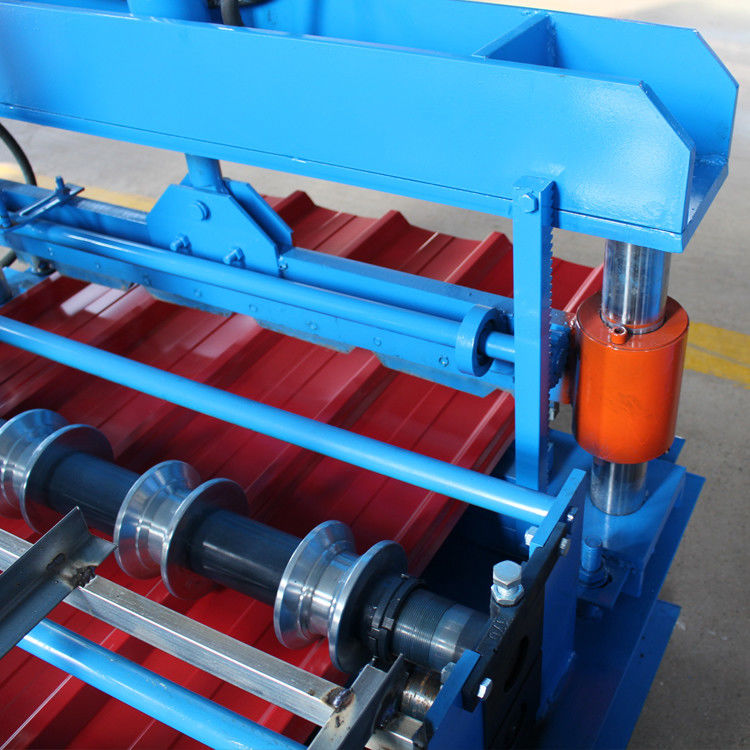

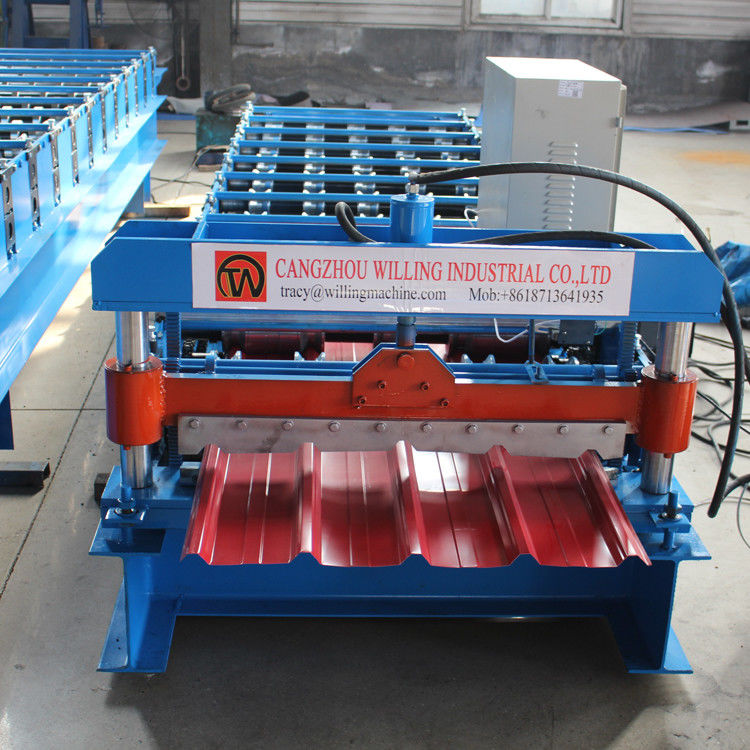

The 6Rib 840 IBR roof forming machine is an efficient production machine composed of several parts such as uncoiling, feeding, forming and cutting. The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.



Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 15-20m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

4KW
9

Hydraulic Station Power

4KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application




They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.


Advantage

Our company's main business includes a series of equipment such as double-layer tile machine, three-layer tile machine, glazed tile machine, square brick machine, floor machine, fully automatic CZ beam machine, plate shearing machine, bending machine, and punching machine.
We are committed to the research and development of various products, with supporting production equipment and development and design talents.The products produced have the advantages of accurate accuracy, strong flexibility, low processing loss, etc., and have a good cost performance.
