Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Cutting Automatic Interchangeable CZ Purlin Roll Forming Machine | Raw Material: | Galvalume, Galvanized |
|---|---|---|---|
| Dimension(L*W*H): | 7000 Mm*1500 Mm* 1500 | Material Thickness: | 1 Mm - 3mm |
| Weight: | 5T | Production Capacity: | 10-25m/min |
| Voltage: | 380V/50HZ/3PH | Main Motor Power:: | 15Kw |
| High Light: | interchangeable cz purlin machine,galvalume cz purlin machine,galvalume roll forming cz purlin machine |
||

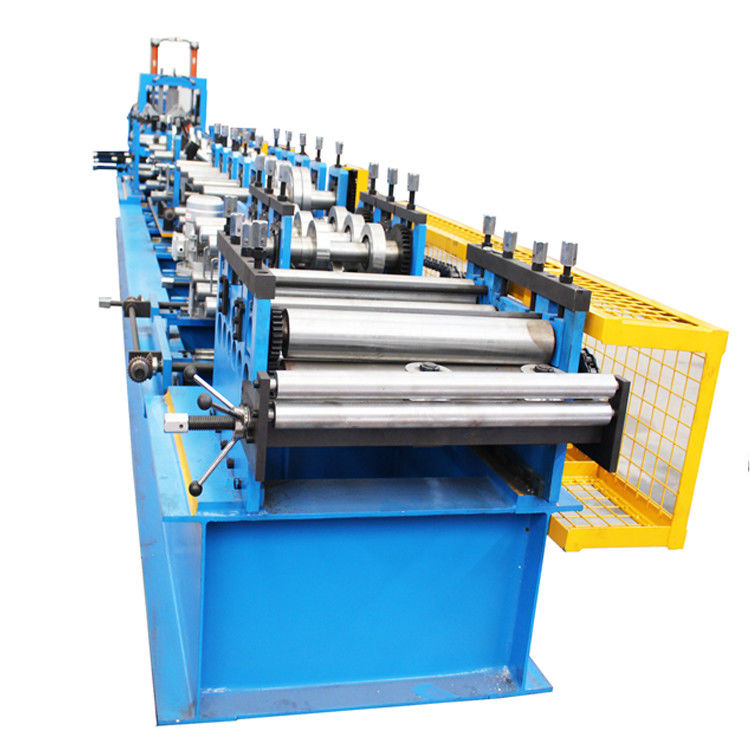

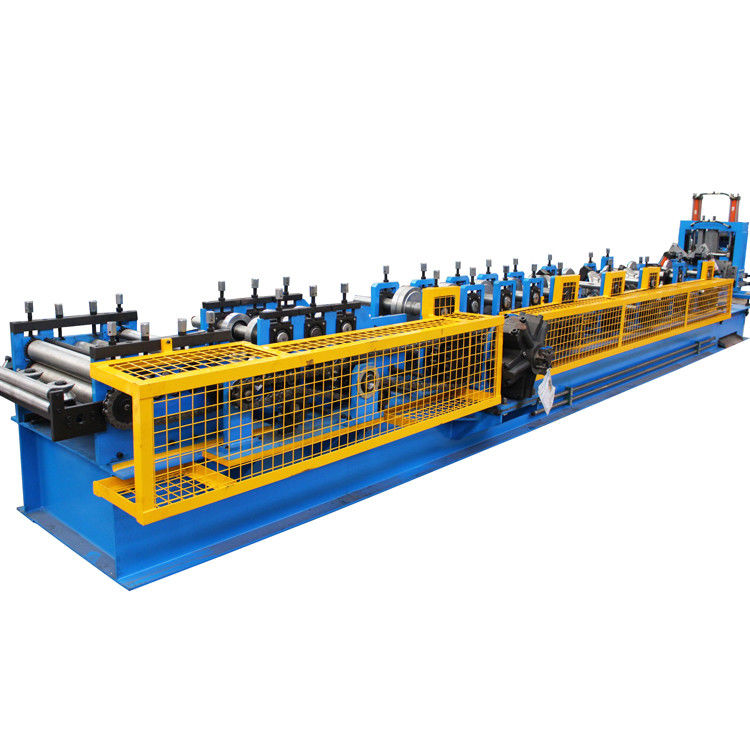

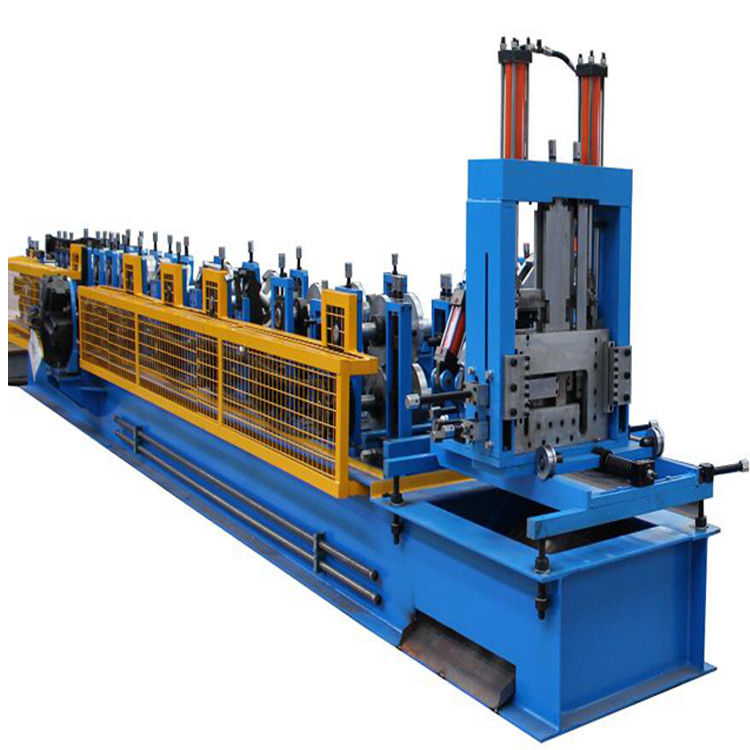

Hydraulic Cutting Automatic Interchangeable CZ Purlin Roll Forming Machine
The purlins are now commonly used in the construction industry, with different shapes and sizes, the most commonly used are C purlin and Z purlin. this machine can produce both C and Z products on the same machine. It only takes 40 minutes to change between C and Z. and the product size range 80mm and 300mm
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3 mm |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 |
Dimension (L*W*H) |
7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
360V/60HZ/3PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |

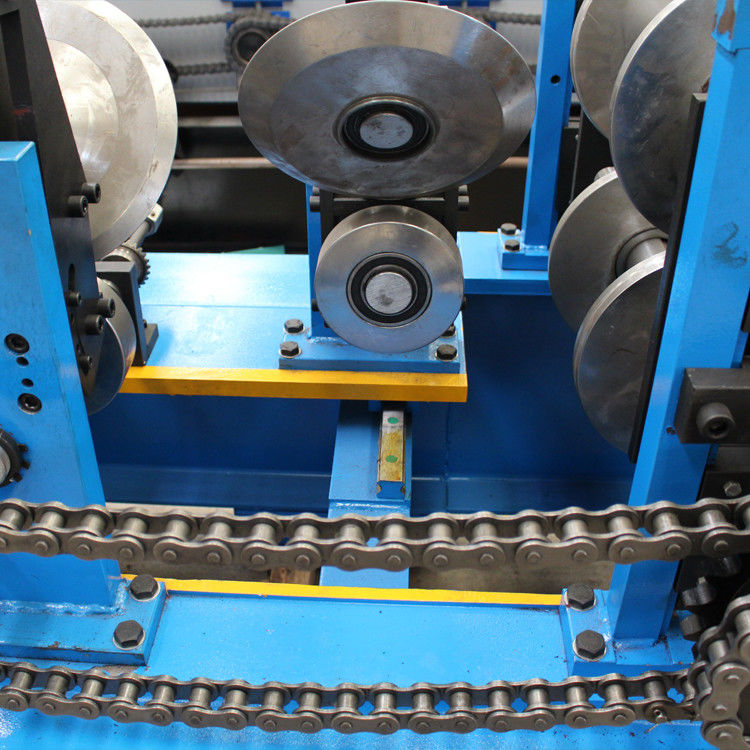

Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
C, Z type roll forming machine products are widely used in structural building purlins, wall beams and roofs, etc., and can also be combined into lightweight roof trusses, brackets and other building components. Due to its relatively high safety factor, the load-bearing capacity can meet most needs in movable buildings. Usually C-shaped and Z-shaped steel are used as beams, supports and tie rods. At the same time, it can also be used on the roof to support roof panels and wall panels.
Advantage
fully automatic CZ interchange purlin machine has a fully automatic electrical control system and error alarm device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. It has also become more accurate and reliable.
