Product Details:
Payment & Shipping Terms:
|
| Product Description: | Double Layer Roll Forming Machine | Thickness: | 0.25-0.8 Mm |
|---|---|---|---|
| Shaft Material: | Material Is 45# Forge Steel | Dimension(l*w*h): | 9500*1550*1500mm |
| Control System: | PLC | Speed: | 15-20 M/Min |
| Voltage: | 380V 50HZ 3PH | Weight: | 6.5T |
| High Light: | plc wall panel roll forming machine,versatile wall panel roll forming machine,versatile metal roll forming machine |
||

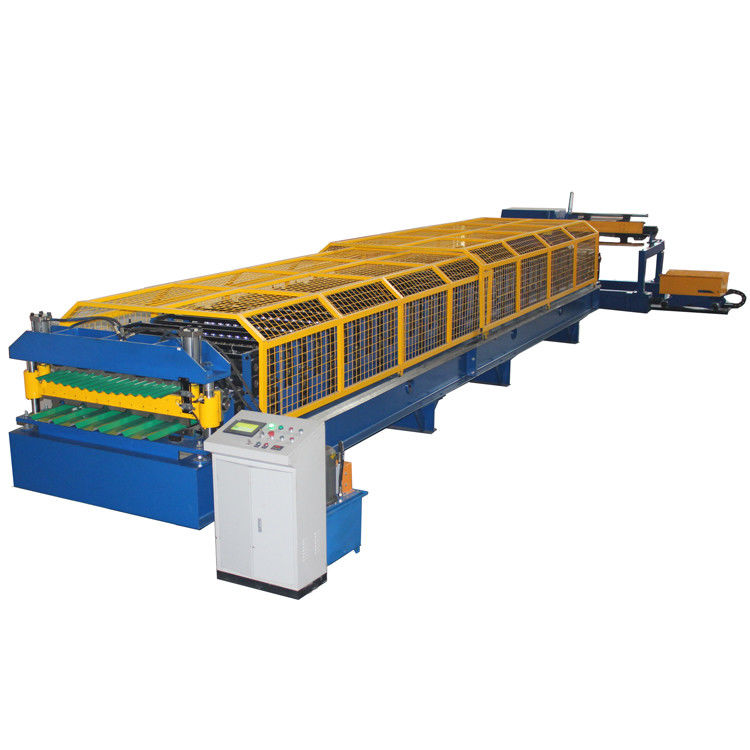

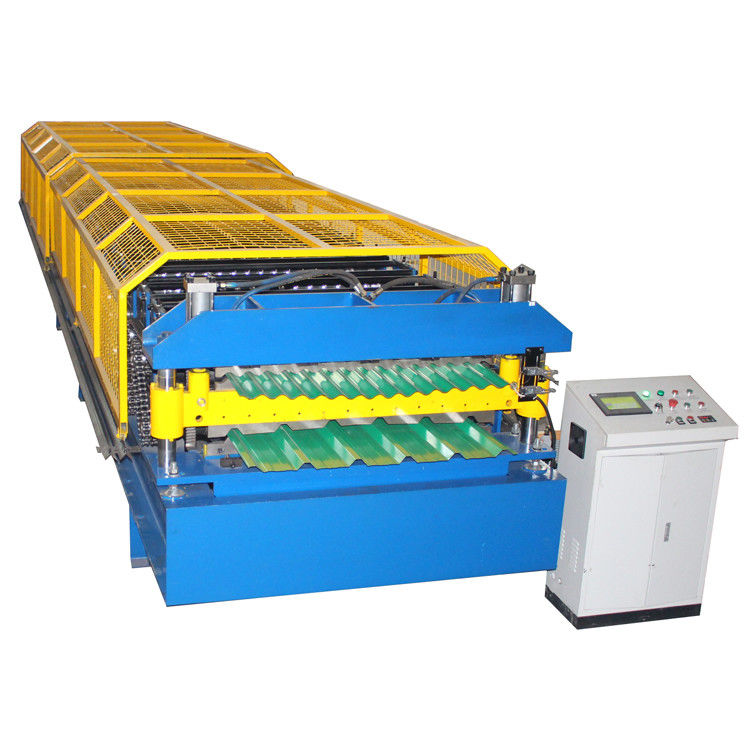

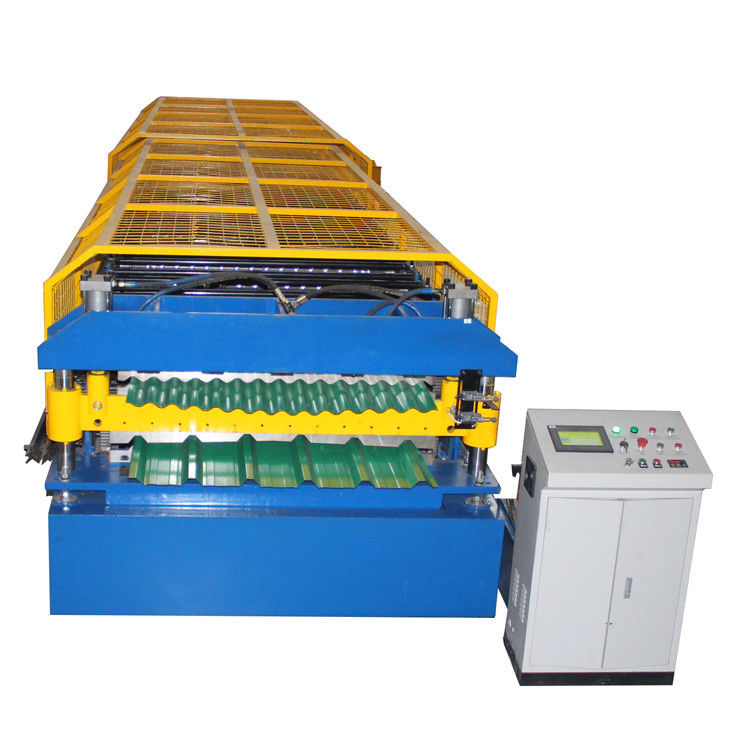

Metal Roofing Corrugated Steel Wall Panel Double Layer Roll Forming Machine
In order to meet the needs of forming two sections on a limited site area, and to quickly change products, the double-layer rolling mill of the tile press is also designed and manufactured. This double-layer color steel tile forming machine is installed in the high or low frame Change between.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Dimension | 7300*1550*1200mm |
| 5 |
Main servo |
7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.3-0.8mm |
|
8 |
Productivity |
15-20m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine is not only solemn and elegant, but also beautiful and novel. And the appearance is flat, the pressure is uniform, and the utilization rate is high.
Advantage
