Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi

Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi
Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi

Large Image :  Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Shutter Slat
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Stop Cutting System Shutter Strip Embossing Roll Forming Machine Raw Material: PPGI,GI,PPGL GL
Working Speed: 20 M/min - 25 M/min High Speed Material Thickness: 0.3 Mm - 0.8 Mm
Voltage: 380V 50Hz 3phases Condition: New
High Light:

embossing shutter strip making machine

,

ppgi shutter strip making machine

,

shutter strip metal roll forming machine

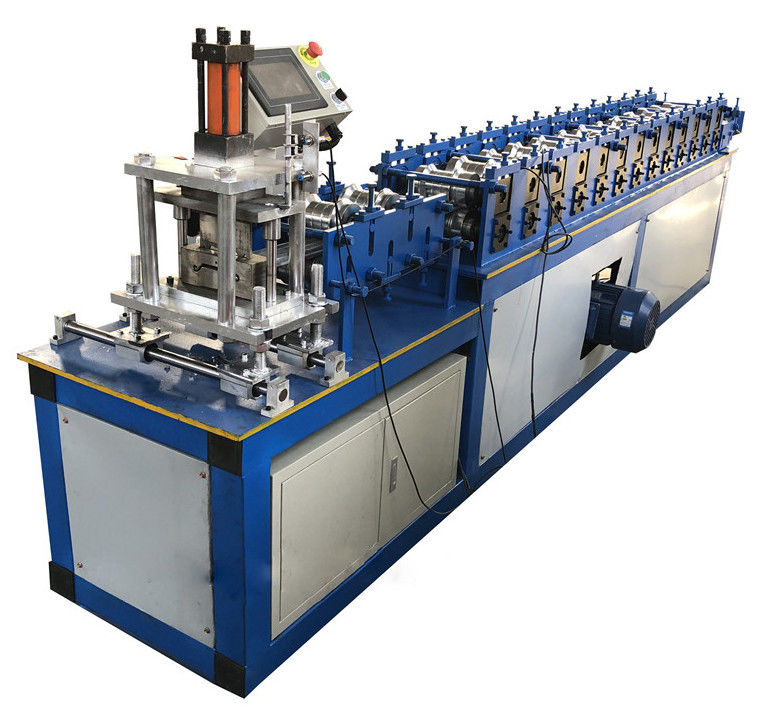

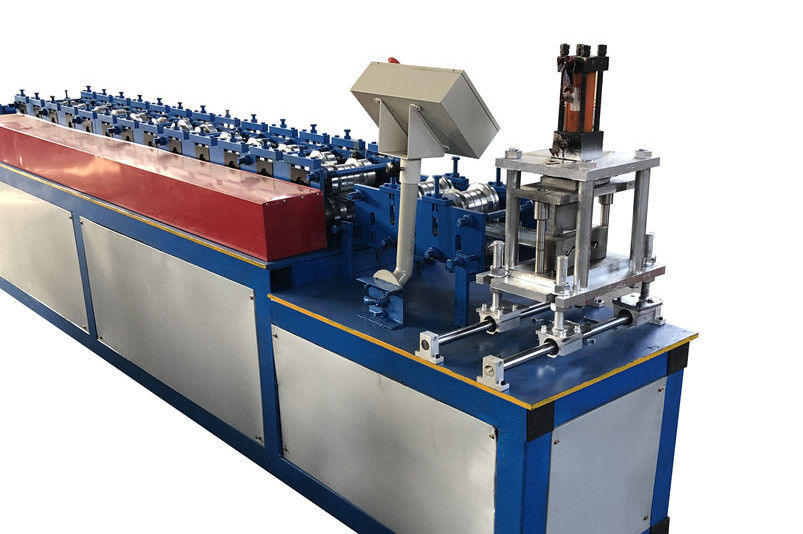

Stop Cutting System Shutter Strip Embossing Roll Forming Machine



The rolling door unit equipment is widely used in the production of rolling shutters in various industrial plants, warehouses, supermarkets, and shopping malls. The machine is mainly composed of a feed-in platform, a forming host, a forming and shearing device, a hydraulic station, and a computer control system. Because of its high-efficiency automation system configuration, usually only one or two workers are required to operate the production, and the output is stable. Its high efficiency, low energy consumption and other characteristics are welcomed by the majority of users



Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.6 mm - 0.9 mm
3 Working Speed 20-30 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

5500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 1 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



The rolling shutter door has beautiful appearance, compact and advanced structure, convenient operation, sturdiness and durability, strong rigidity, does not occupy the ground, and is flexible and convenient to open and close. It has the characteristics of windproof, dustproof, fireproof, windproof and anti-theft. Usually used in public places or residences such as commercial exterior walls, garages, shopping malls, factories, mining enterprises, etc. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.


Advantage



The automatic roller blind rolling machine is controlled by an advanced PLC control system to realize a fully automatic operation mode. Realize the characteristics of low labor cost, low energy consumption, high efficiency, and small floor space. Due to its good fire and anti-theft functions and high safety performance, rolling shutter doors are widely used in food, medicine and other industries.





Stop Cutting System Embossing Shutter Strip Making Machine For Ppgi 0
