Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hat Channel Omega CZ Purlin Roll Forming Machine | Raw Material: | PPGI，Galvanized |
|---|---|---|---|
| Speed: | 8-15m /min | Material Thickness: | 1 Mm - 3 Mm |
| Weight: | 9 Tons | Warranty: | 1 Year |
| Power: | 15KW | Control System: | PLC |
| High Light: | ppgi cz roll forming machine,full hardness cz roll forming machine,galvalume cz purlin forming machine |
||
Omega CZ Purlin Roll Forming Machine

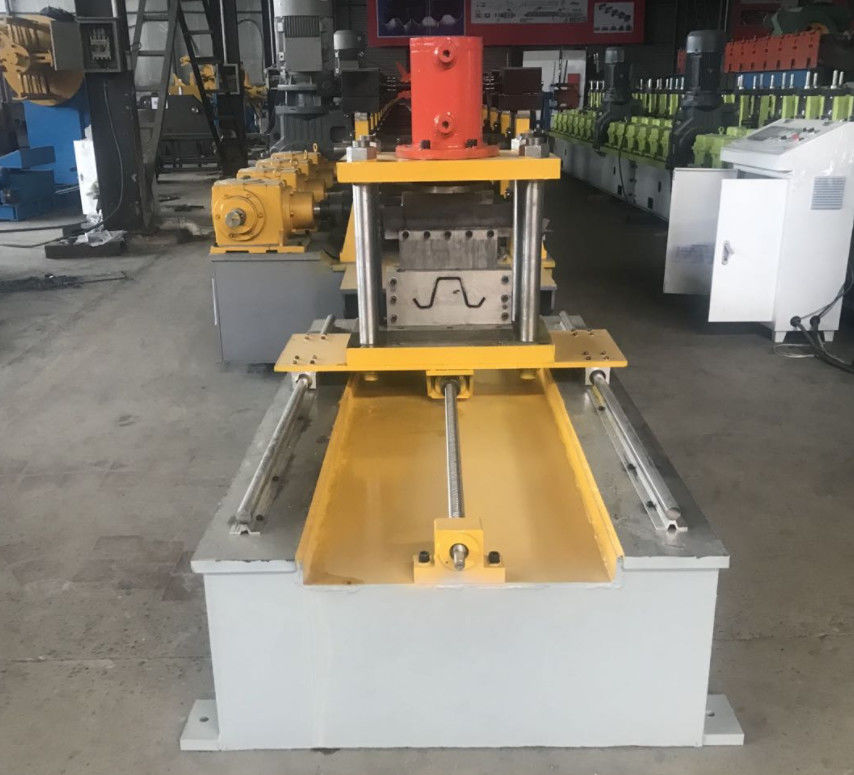

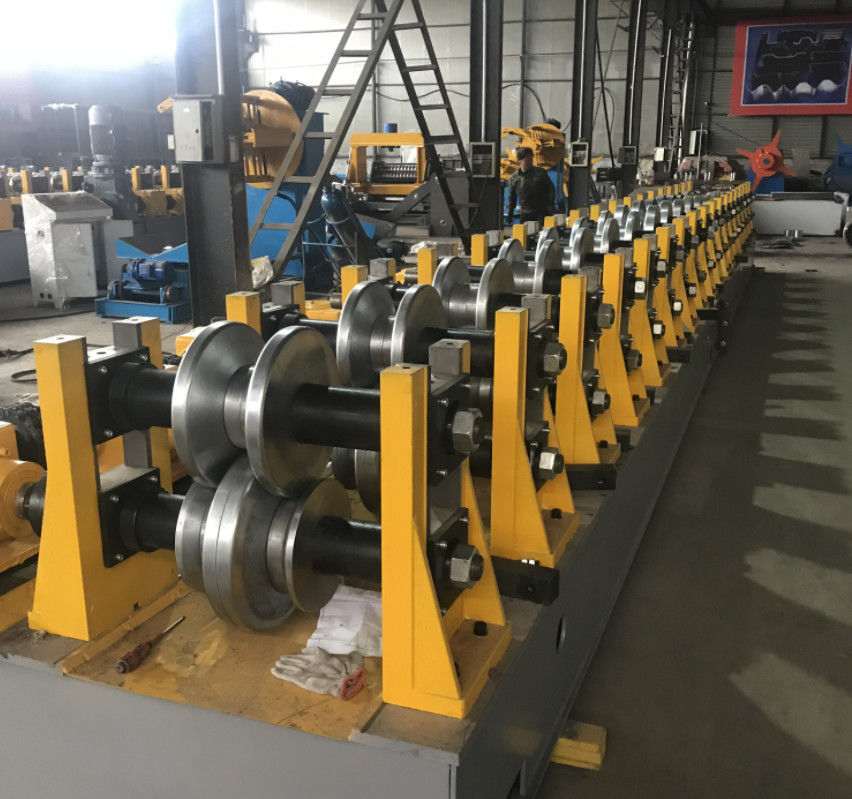

Omega hat-shaped steel purlin forming machine is mainly composed of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, computer control cabinet and other parts.
The finished product of hat-shaped purlin has good bending and compression resistance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, and quick and convenient installation. The hat-shaped steel purlin forming machine can be used as the main stress structure of large and medium-sized industrial and civil buildings, such as the roof load-bearing load and wall support of factory buildings, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, and market flower sheds.
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| Material Thickness | 1 mm- 3 mm | |
| 3 | Working Speed | 8-15m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension |
6500*1300*1200 |
| 6 | Machine Weight | 8000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
hat channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.
Advantage
The hat-shaped purlin forming machine adopts automatic control software to realize production information management. The sink equipment also has the advantages of simple operation, easy maintenance, maintenance, mechanical debugging, and easy mold replacement. The entire equipment automation control system uses a highly integrated network to make the automation system perform well.
