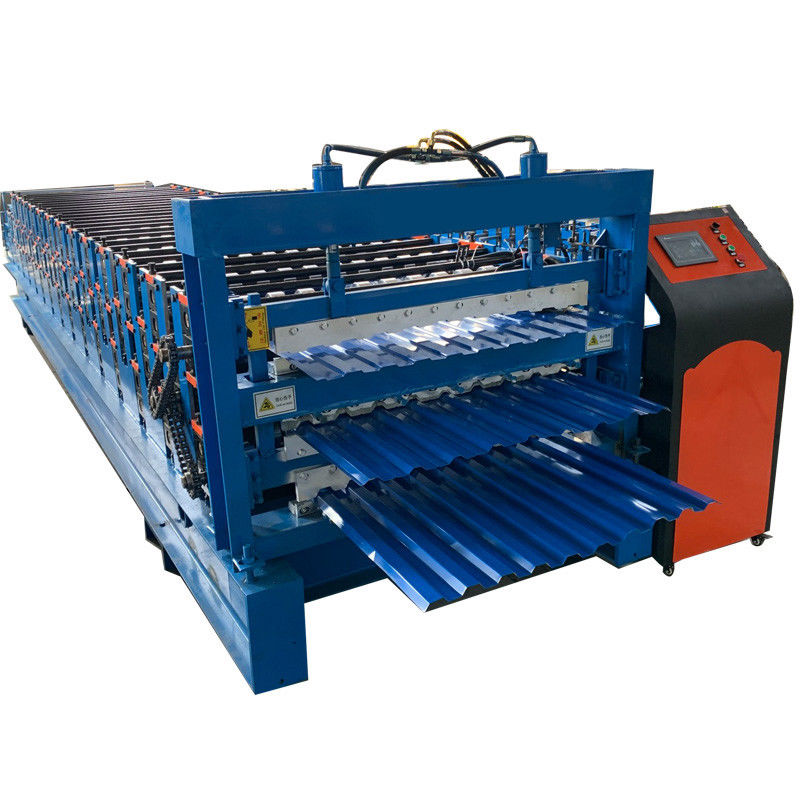

Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control
Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

Large Image :  Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

Product Details:
Place of Origin: China
Brand Name: Willing
Certification: CE
Model Number: Triple Layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Description: Triple Layer Hydraulic Shear PLC Control Roof Roll Forming Machine Thickness: 0.3-0.8 Mm
Shaft Material: Material Is 45# Forge Steel Dimension(l*w*h): 2500*1750*1650 Mm
Control System: PLC Speed: 15-20M/Min
Voltage: 380V 50HZ 3PH Weight: 7T
Motor Power: 4kw Oil-pump Motor Power: 4kw
High Light:

triple layer roofing roll forming machine

,

hydraulic shear roofing roll forming machine

,

plc control roofing roll forming machine

Triple Layer Hydraulic Shear PLC Control Roof Roll Forming Machine



The Triple Layer  roof roll forming machine is a Triple Layer color steel tile production equipment with one machine. It can produce glazed tiles, trapezoidal roof tiles and corrugated wall tiles at the same time. One machine can produce three types of color steel roof tile building materials. The machine is composed of a feeding rack, a feeding platform, a pressing host, a leveling roller, and cutting after forming. It is fully automatic computer control and simple and convenient to operate. The value that the triple-layer tile machine can create for users is the core. One machine has multiple functions, which not only saves the area but also reduces the cost. The triple-layer tile machine has a light structure and is especially suitable for customers with small sites and on-site construction.




Equipment Detailed Parameters:



1

Suitable Material PPGI (235Mpa)

2

Width of the raw material 1250/1250/1220 mm
3 Rows of rollers 15 rows & 16 rows
4 Dimension 2310*1750*1650mm
5

Main servo

4kw

6 Hydraulic station power 4kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

15-20m/min
9 Diameter of shaft ¢75mm

10

Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The triple layer roll forming machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production are smooth and beautiful, uniform paint pattern, high strength, and durable. They are widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, Theaters and other rooms.



Advantage



Our company's three-layer tile machine adopts high-number pulse input function. Due to the excellent high-number input performance, the AB phase has strong anti-interference ability. The fixed value interrupt function is also used to ensure accuracy.
The multi-layer model of the three-layer tile machine can be designed and customized according to user requirements, flexible and changeable, and is loved by the majority of users
