| Product Description: | Double Layer Trapezoid And Glazed Roof Roll Forming Machine | Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Shaft Material: | Material Is 45# Forge Steel | Dimension(l*w*h): | 9000*1550*1500mm |
| Control System: | PLC | Speed: | 15-20M/Min |
| Voltage: | 380V 50HZ 3PH | Weight: | 6.5T |
| High Light: | 0.3mm double layer roll forming machine,double layer roll forming machine plc,0.3mm double layer roofing sheet machine |
||

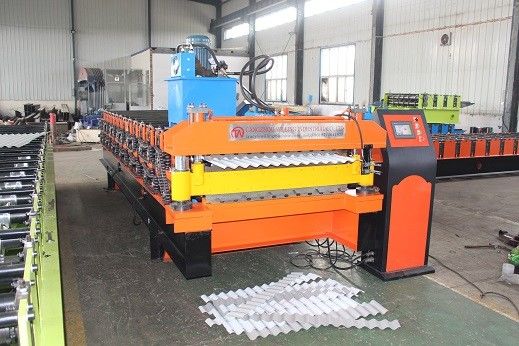

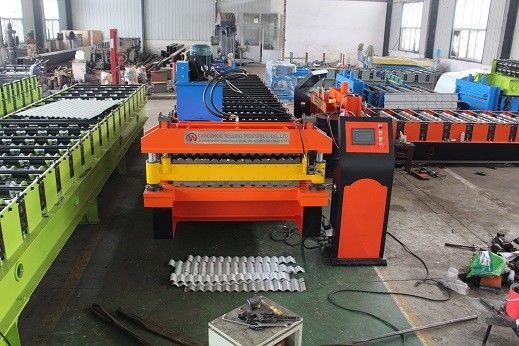

Double-Scissors Double Layer High Speed Roll Forming Machine
The operation of switching between the two layers of the double-layered tile machine is simple. You only need to switch and control each layer separately through the switch button on the electric control cabinet. The power can also be controlled by the clutch separately. The two models are very well combined, with reasonable structure and beautiful appearance. It has the characteristics of saving space and simple operation, and is especially suitable for customers with small sites and on-site construction.
This double layer roll forming machine consists of feeding, forming, and post-forming cutting. The products produced are flat and beautiful in appearance and uniform in paint patterns. They are widely used in industrial and civil buildings, such as workshops, warehouses, machine garages, hangars, stadiums, and exhibition halls. , Theaters and other rooms and walls
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 1250mm/1220mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Dimension | 7300*1550*1200mm |
| 5 |
Main servo |
7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.3-0.9mm |
|
8 |
Productivity |
15-20m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The products produced by the double roll forming machine have the characteristics of light weight, high strength, heavy bearing capacity and good seismic resistance, and are widely used in the field of multi-high-rise steel structure buildings. Wave type tile press equipment includes: complete machine, PLC computer control system, special shearing equipment, hydraulic system. Features and uses of the double-layered tile machine: The pressed plate rolled by the double-layered tile machine is not only solemn and elegant, but also beautiful and novel, and has a smooth appearance, uniform corrugation, high utilization rate, high strength, and high degree of production automation. , Low cost and durable. The product is mainly suitable for large and medium-sized enterprise civil buildings, such as factory buildings, hangars, hangars, stadiums, exhibition halls, theaters, etc.
Advantage
