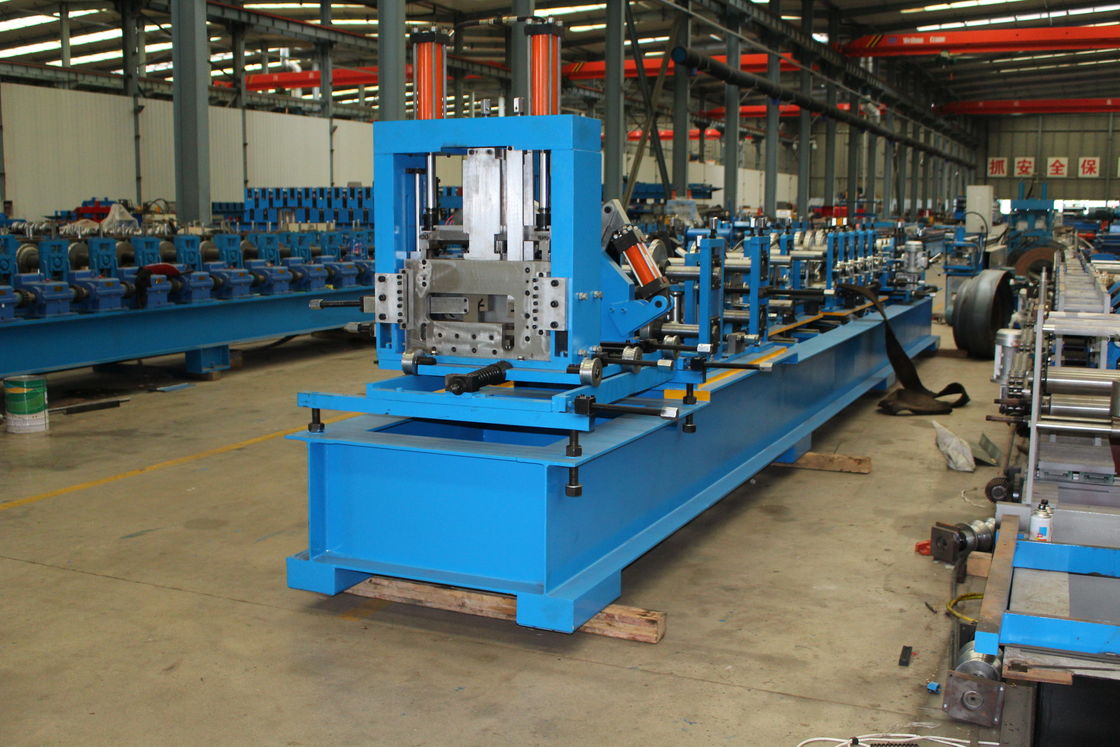

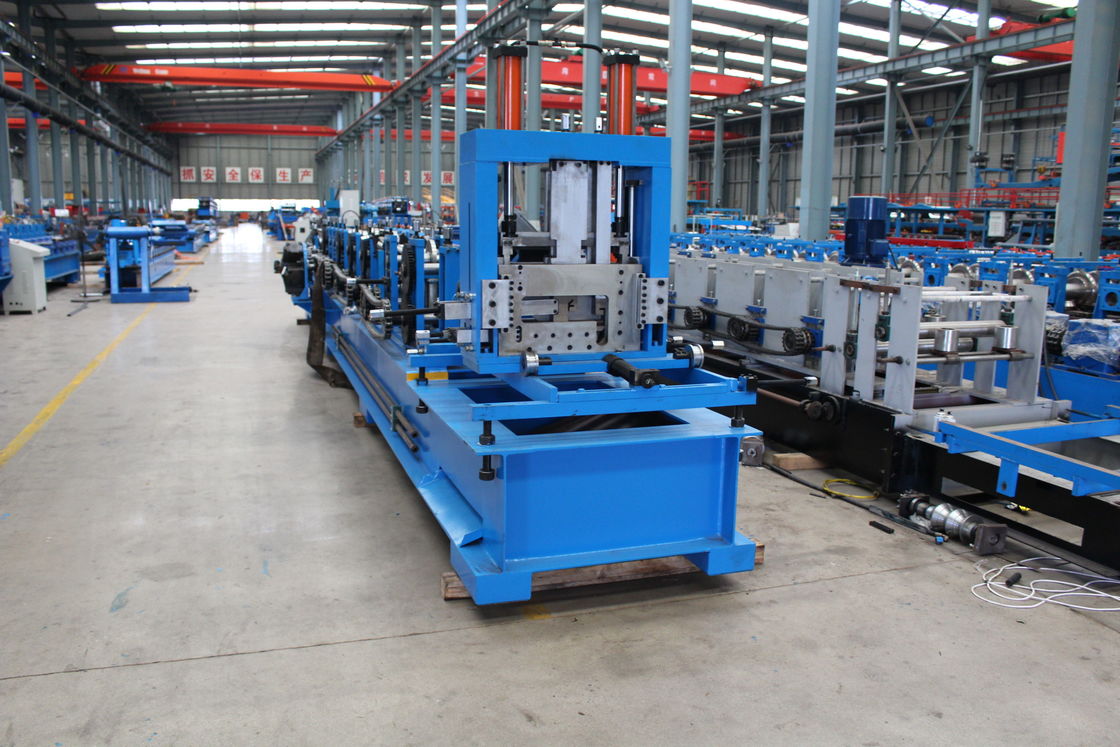

Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic

Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic
Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic

Large Image :  Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: WILLING
Certification: ISO CE
Model Number: C&Z Purlin Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Simi - Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine Raw Material: Galvalume, Galvanized
Dimension(L*W*H): 7000 Mm*1500 Mm* 1500 Material Thickness: 1 Mm - 3mm
Weight: 4.5T Production Capacity: 10-25m/min
Voltage: 380V/50HZ/3PH Main Motor Power:: 15Kw
High Light:

3ph cz purlin roll forming machine

,

plc cz purlin roll forming machine

,

adjustable cz purlin machine

Automatic Adjustable PLC Control CZ Purlin Roll Forming Machine



  The CZ automatic purlin interchange production line is faster and more time-saving than the single purlin method. Purlins of various shapes and sizes can be customized according to customer requirements. In terms of price, it is cheaper than other production lines and durable. The machine has the characteristics of high degree of automation and high production efficiency. It is controlled by the CNC system. It has the functions of multi-task programming, simulated device display, storage and data upload. Download function; It can automatically complete specification adjustment and C-type/Z-type conversion according to input parameters; It can realize features such as automatic speed regulation and accurate positioning and cutting.
  The finished purlin produced by it has a smooth surface, strong bending resistance, and an exquisite appearance.


Specification



No. Item Description
1 Coil Galvanized
2 Material Thickness  1.5 mm- 3 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 12-16 Raws
5

Dimension (L*W*H)

7000 mm*1000 mm*1300 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

15KW
9

Hydraulic Station Power

15 KW
10

Power Supply

360V/60HZ/3PH

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 2 inch

13

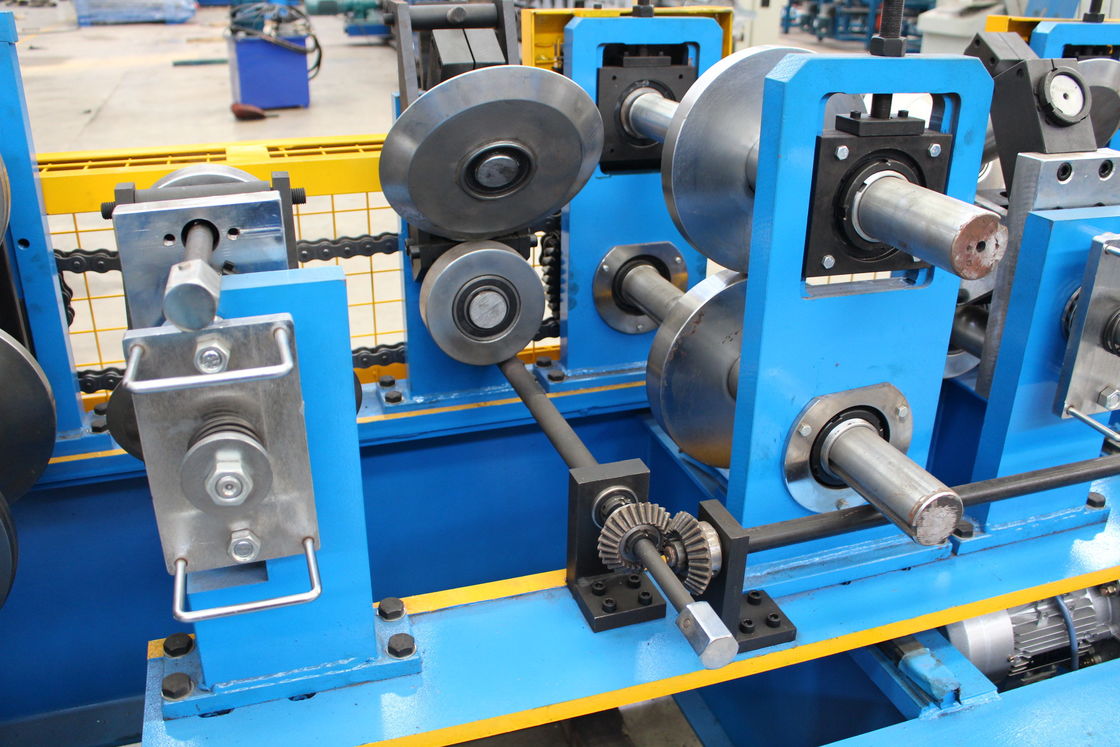

Material of Shaft

80 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



the product of C and Z roll forming machine produce widely used in purlins and wall beams in structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components.
The sprayed C and Zshaped steel is used as beams, supports and ties. Due to Its safety factor is quite high, and its load-bearing capacity can also be satisfied. It can also be widely used in the roof to support roof panels and wall panels.



Advantage



The CZ-type purlin automatic interchange production line does not require a lot of operators to operate, which can save a certain amount of labor for the factory. The CZ-type purlin machine can also manufacture purlins of different materials. If the customer has such a demand, it can be produced. During the production process, the noise generated is very small and it is also environmentally friendly. Workers operating in such an environment will not suffer from health problems. Because they can work for a long time, they are not affected by climatic conditions.



Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic 0
