Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine

Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine

ppgi fully automatic roll forming machine

ppgi ridge cap roll forming machine

versatile ridge cap roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Ridge Cap

Contact Us
Request A Quote

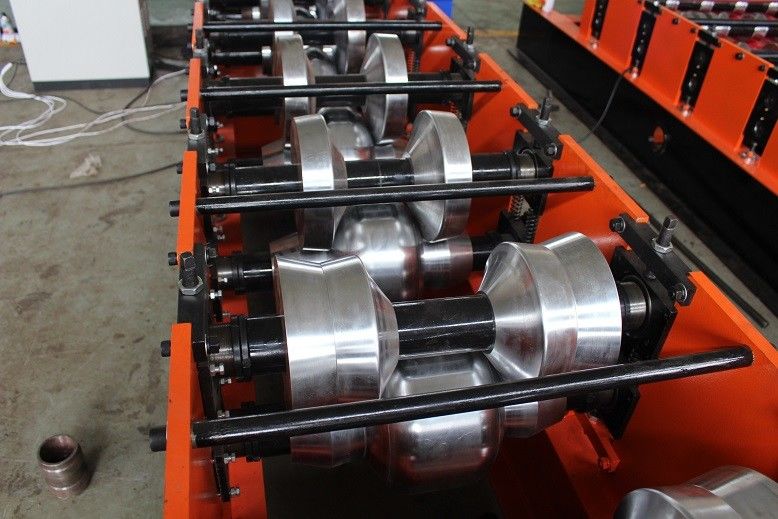

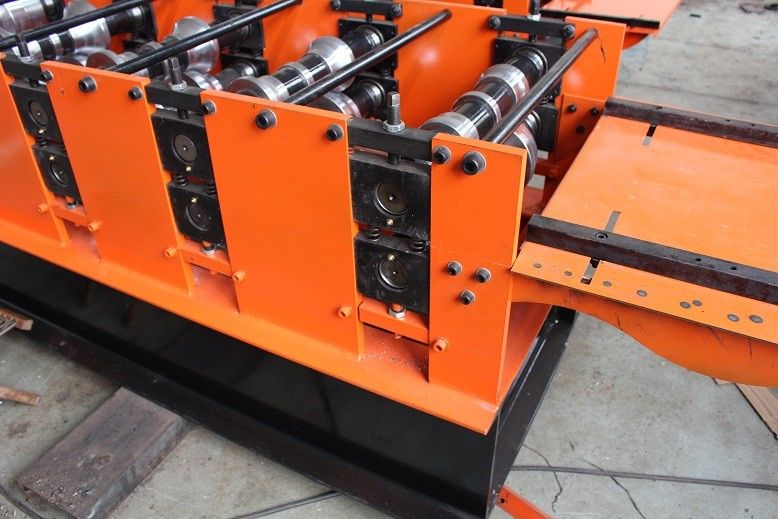

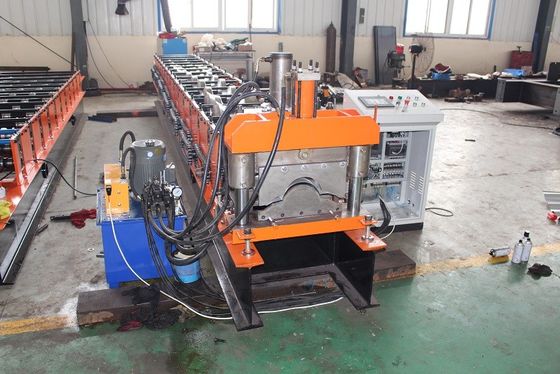

Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine
Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine
Product Details
Product Name:
Fully Automatic Tile Fix Ridge Cap Roll Forming Making Machine
Raw Material:
Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm:
PLC
Thickness:
0.3-0.9mm
Tile Type:
Ridge Cap
Condition:
New
Color:
As Per Customer Reqeust
Motor Power:
4KW
Highlight:

ppgi fully automatic roll forming machine

,

ppgi ridge cap roll forming machine

,

versatile ridge cap roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Fully Automatic Tile Fix Ridge Cap Roll Forming Making Machine



The roof tile forming machine adopts imported computer motherboards, relays, and frequency converters. It has high production efficiency and high yield. It has the ability to replace the ridge pad tiles in the past roof ridge tiles and the base part for laying on the corrugated tiles. A structure composed of a crown that covers the ridge tile and forms an appearance on the outer side of the roof tile



Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.9mm
3 Working Speed 10-15 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 4KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The ridge cap tile forming machine adopts roll forming technology and stamping die hydraulic forming. Products are widely used in building color steel roof connections, such as new rural construction, leveling projects, resorts, villa roofs, etc.



Advantage



The ridge cap tile roof tile forming machine has a reasonable structure and is easy to operate. It is fed, pressed, and cut into plates. Using low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, computer control, accurate measurement. The entire unit automation control system adopts a highly integrated network, which makes the automation system superior in performance.
