Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine

waterproof roof roll forming machine

anti corrosion roof roll forming machine

ppgi tile roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Ridge Cap

Contact Us
Request A Quote
Product Details
Product Name:
Anti Corrosion And Waterproof Roof Tile Ridge Roof Roll Forming Machine
Raw Material:
Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm:
PLC
Thickness:
0.3-0.9mm
Tile Type:
Ridge Cap
Condition:
New
Color:
As Per Customer Reqeust
Motor Power:
4KW
Highlight:

waterproof roof roll forming machine

,

anti corrosion roof roll forming machine

,

ppgi tile roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

Anti Corrosion And Waterproof Roof Tile Ridge Roof Roll Forming Machine

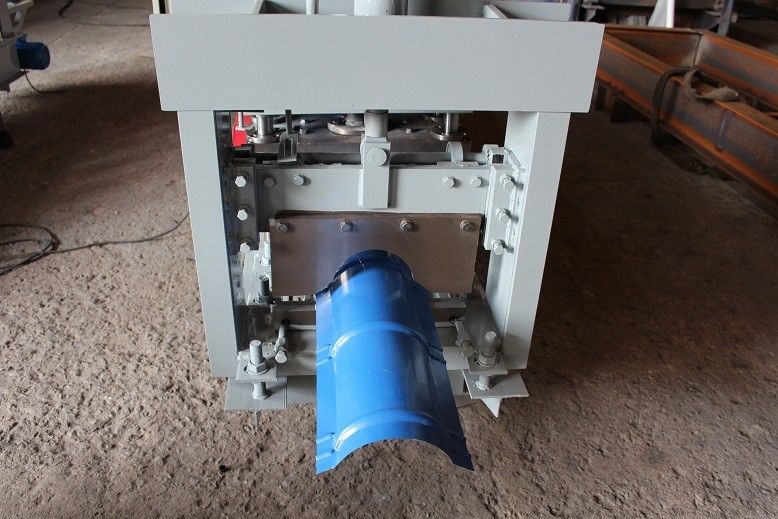

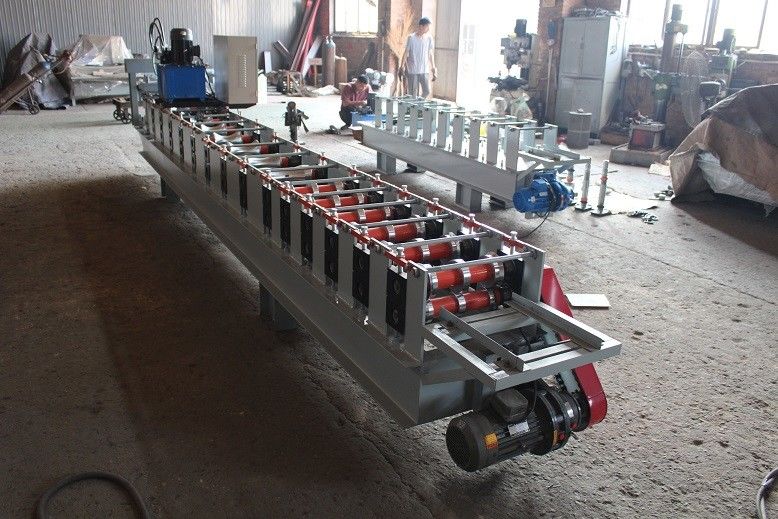

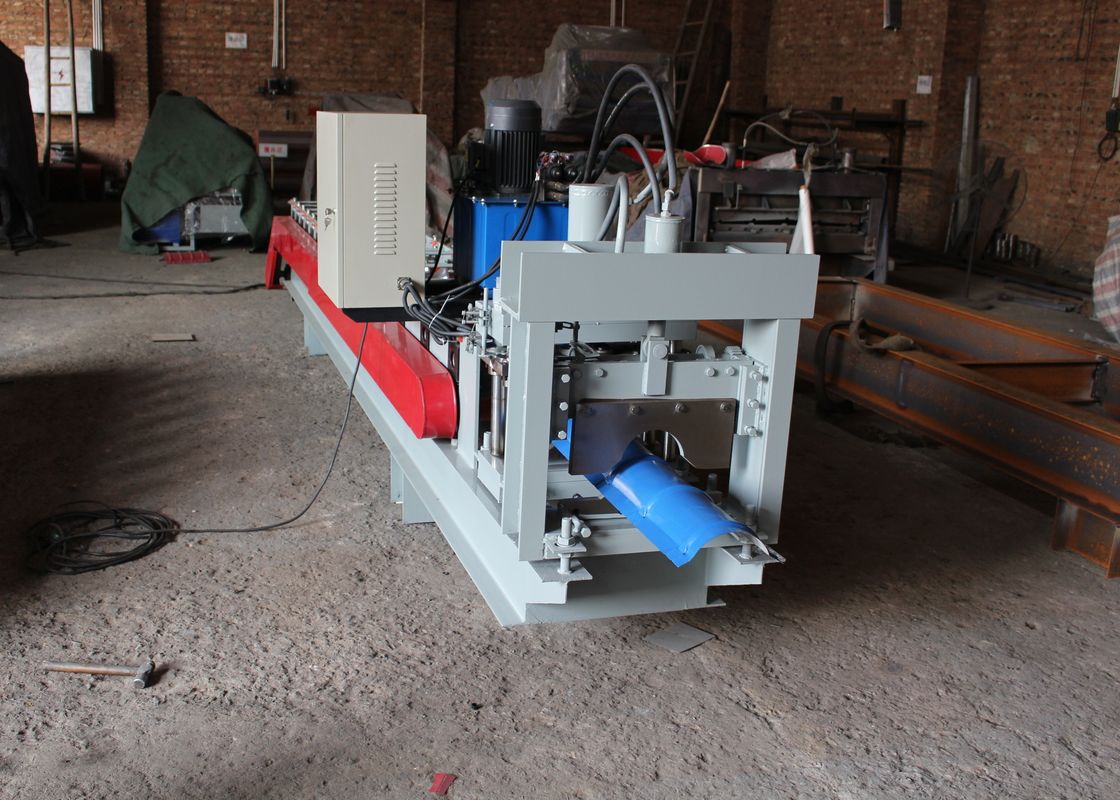

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. The host adopts programmable controller and touch screen control, and the speed is continuously adjustable. Fully automatic length setting and cutting, easy to operate. This machine can be customized according to customer requirements

Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.9mm
3 Working Speed 15-20 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

4KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

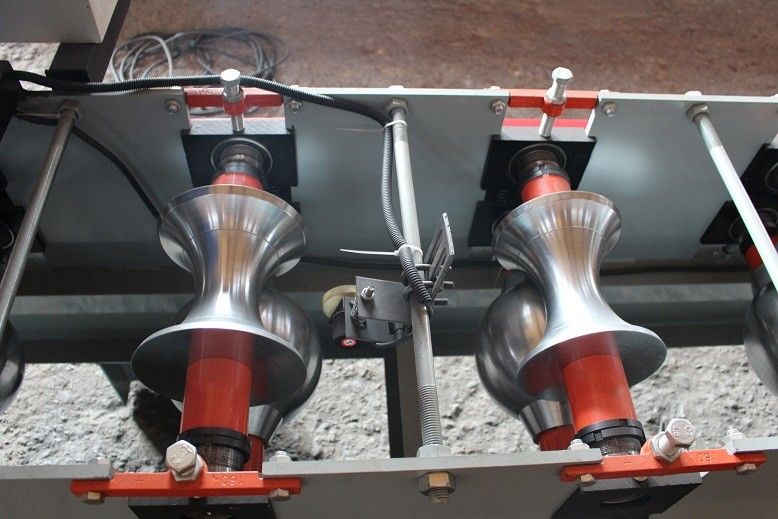

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



It is widely used in the production of various industrial plants, houses, warehouses and simple steel shed roof ridge tiles, and is beautiful and durable.



Advantage



The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.
