Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm

Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm
Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm

Large Image :  Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Shutter Slat
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Punching Hollow Shutter Slat Shutter Door Roll Forming Machine Raw Material: PPGI,GI,PPGL GL
Working Speed: 10 M/min - 20 M/min High Speed Material Thickness: 0.3 Mm - 0.8mm
Voltage: 380V 50Hz 3phases Condition: New
High Light:

0.8mm shutter door roll forming machine

,

ppgl shutter door roll forming machine

,

rolling shutter door slats roll forming machine

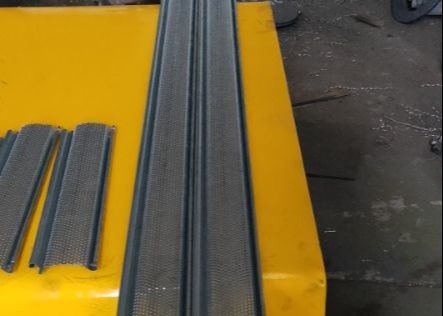

Punching Hollow Shutter Slat Shutter Door Roll Forming Machine

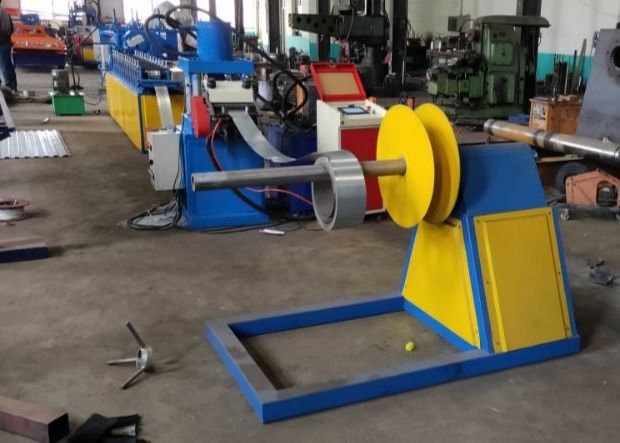

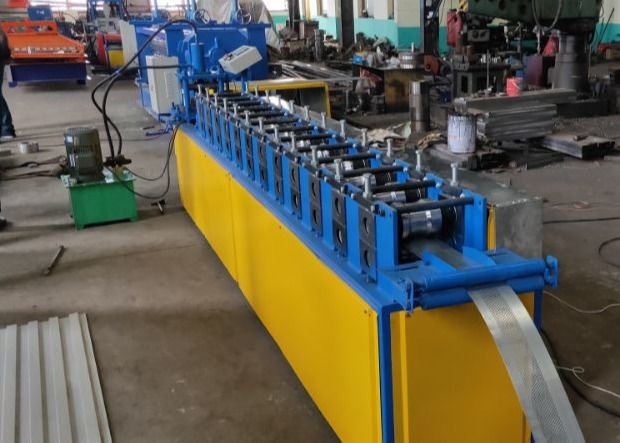

Controlled by the PLC control system, it is composed of an unwinding system, a punching system, a forming system, and a cutting system. It realizes a fully automatic operation mode and an automatic roll forming machine for roller blinds.



Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.6 mm - 0.9 mm
3 Working Speed 10-20 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

6500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 1 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



Rolling shutters are suitable for commercial facades,shopping malls,garage doors, fireproof rolling shutter doors of shopping malls, and hangar doors, factories, mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the door body on the ground plays a role of convenient and quick opening.


Advantage



The rolling shutter door has beautiful appearance, compact and advanced structure, convenient installation, sturdy and durable, ventilated and breathable, does not occupy the ground, is flexible and convenient to open and close, and has a good anti-theft function.





Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm 0
