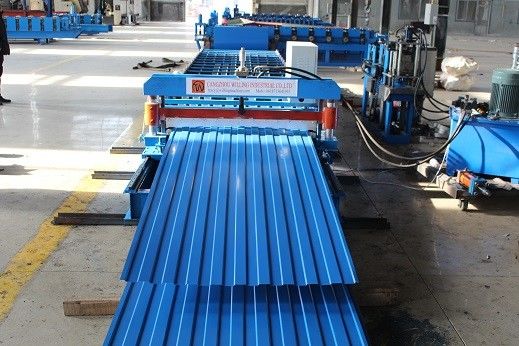

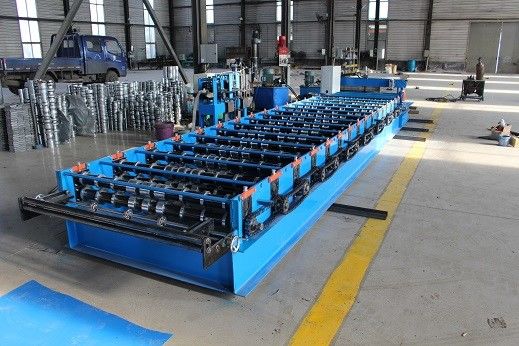

900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine
900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

Large Image :  900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: IBR 900 Profile
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 25 Sets Per Month
Detailed Product Description
Product Name: IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine Raw Material: Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm: PLC Thickness: 0.3-0.8mm
Tile Type: Roll Forming Machine/building Material Machinery Condition: New
Color: As Per Customer Reqeust Motor Power: 3.5KW
Raw Material Width: 1000mm Machine Weight: 4 Tons
High Light:

trapezoid ibr roll forming machine

,

900mm ibr roll forming machine

,

hydraulic shear ibr roll forming machine

IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine



IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine is accompanied by the efficient integration of PLC computer control system, hydraulic pump station system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers





Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

3.5KW
9

Hydraulic Station Power

3.5KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The color steel plate products produced by IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machineare widely used in construction household appliances and transportation industries. For the construction industry, they are mainly used for the roof walls and doors of industrial and commercial buildings such as steel structure factories, airports, warehouses, and refrigeration. Fewer color steel plates are used in buildings.



Advantage



The advantages of color steel plates are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.



900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 0
