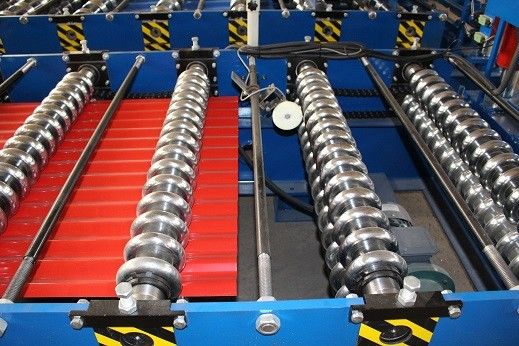

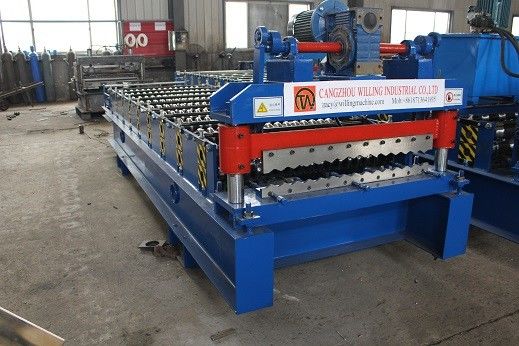

Wave Shape 0.9mm 3.5kw Corrugated Roof Roll Forming Machine

Wave Shape 0.9mm 3.5kw Corrugated Roof Roll Forming Machine
Wave Shape 0.9mm 3.5kw Corrugated Roof Roll Forming Machine Wave Shape 0.9mm 3.5kw Corrugated Roof Roll Forming Machine Wave Shape 0.9mm 3.5kw Corrugated Roof Roll Forming Machine

Large Image :  Wave Shape 0.9mm 3.5kw Corrugated Roof Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Corrugated
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Corrugated Sheet Wave Shape Roof Roll Forming Machine Raw Material: Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm: PLC Thickness: 0.3-0.9mm
Tile Type: Roll Forming Machine/building Material Machinery Condition: New
Color: As Per Customer Reqeust Motor Power: 3.5KW
Raw Material Width: 1000mm Machine Weight: 4 T
High Light:

3.5kw corrugated roof roll forming machine

,

0.9mm corrugated roof roll forming machine

,

plc corrugated roll forming machine

Corrugated Sheet Wave Shape Roof Roll Forming Machine



The corrugated roll forming machine is a production-type machine composed of several parts such as discharging, forming, post-forming and cutting. The colored panels produced by it have smooth and beautiful appearance, uniform paint pattern, high strength, and durability. They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, walls and roofs.



Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.9mm
3 Working Speed 15-20m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

3.5KW
9

Hydraulic Station Power

3.5KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



Corrugated color steel tiles are mostly used in civil buildings such as warehouses, laboratories, shopping malls, apartments, workshops, garages, etc. Because of their light weight, high strength, rich color, convenient and quick construction, earthquake resistance, fire prevention, rain protection, long life, and maintenance-free And other characteristics, has been widely promoted and applied.




Advantage


We have been engaged in the production of tile press equipment for many years. At the same time, it is committed to the research and development of various products, and has supporting production equipment and development and design talents. It mainly includes double-layer tile presses, triple-layer tile presses, fast tile presses, glazed tile machines, square machines, floor decking machines, automatic c-beam machines, shears, bending machines and other series of equipment. We not only have a technical team that has been engaged in design and development for many years and have rich manufacturing experience, but also have the backing of supporting production equipment. The products produced have the advantages of accurate precision, strong flexibility, low processing loss, etc., and have a good performance-to-price ratio. The R&D team members of our factory always focus on the fast-developing new technology trends, and apply them to our factory's products in a timely manner to keep their products competitive
