Product Details:
Payment & Shipping Terms:
|
| Product Name: | Printed Non-Stop Cutting Flying Cut Shutter Door Roll Forming Machine | Raw Material: | PL,GL，PPGL，PPGI |
|---|---|---|---|
| Working Speed: | 15m/min -20 M/min High Speed | Material Thickness: | 0.3mm - 0.8 Mm |
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| High Light: | ppgi shutter door roll forming machine,0.3mm shutter door roll forming machine,gl shutter door roll forming machine |
||

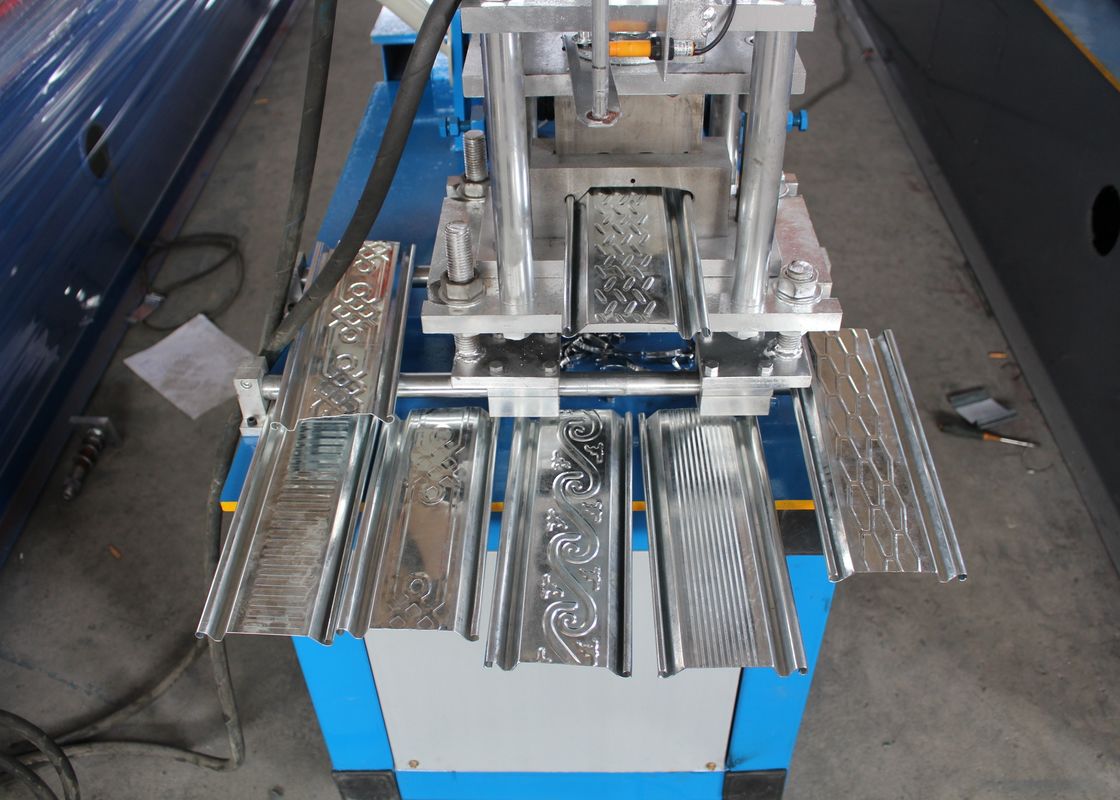

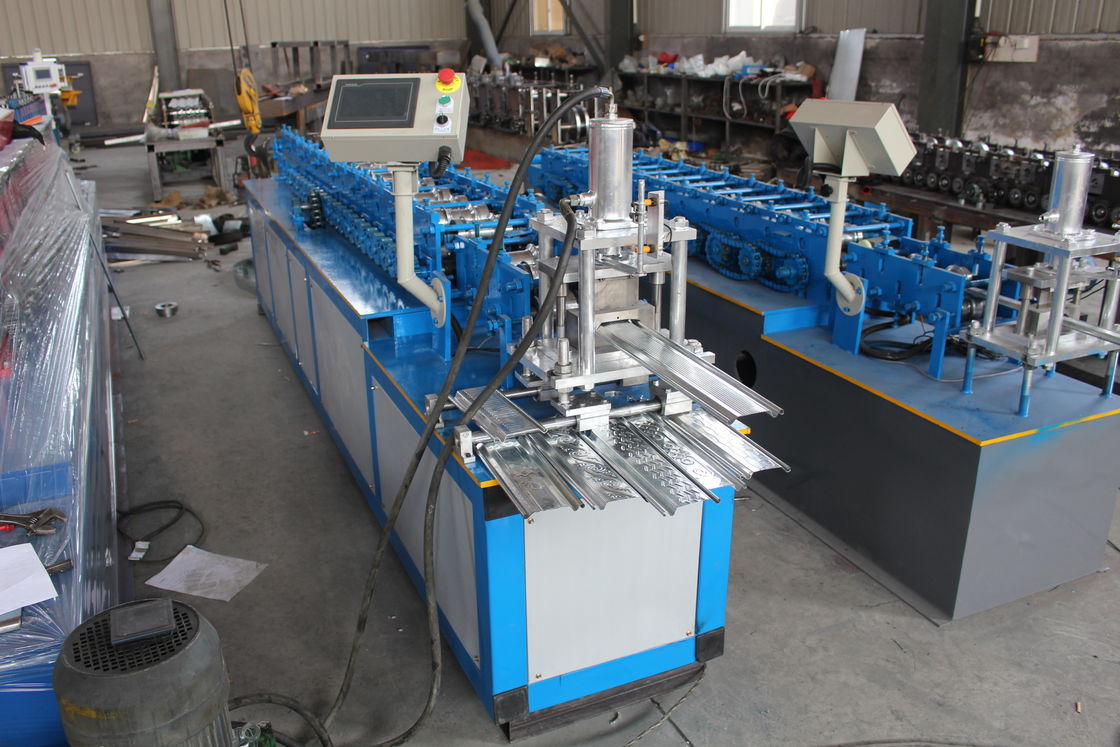

Printed Non-Stop Cutting Flying Cut Shutter Door Roll Forming Machine
Rolling shutter door forming machine is made by cold bending forming process. It is widely used by the people for its energy-saving and environmentally friendly features. It uses less steel to complete the specified load that needs to be achieved. It does not rely on increasing the use of plates or improving materials. Mechanical properties to meet load requirements
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.6 mm - 1.0 mm |
| 3 | Working Speed | 30-50 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |

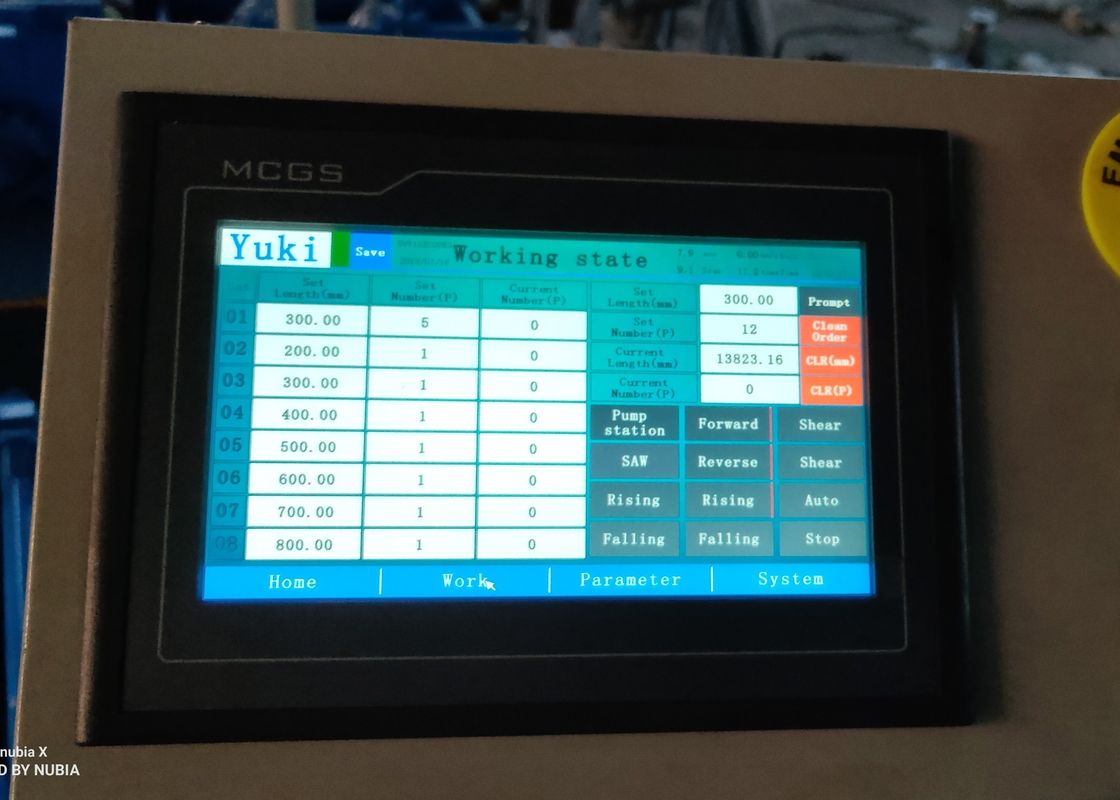

Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The shutter door is a series of multi-joint movable doors, in a fixed slideway, the door is rotated up and down with the reel above the door as the center. It is generally installed at a location where it is inconvenient to use wall separation. Rolling shutter doors are suitable for commercial facades, garages, shopping malls, hospitals, factories and mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the ground door has a convenient and quick opening effect.
Advantage
Cangzhou willing roll forming machine manufacturer, we have many years of industry experience in design, research and development and production of colored steel equipment. We have a qualified team, skilled talents and strong technical force in design, research and development, production, marketing and after-sales service. , Strong independent research and development capabilities and production and processing equipment. The perfect after-sales service system has enabled our products to be well received by domestic and foreign customers. The main products are: angle-chilling equipment, light steel keel equipment, agricultural greenhouse equipment, C/Z/U steel machine series, building Bearing plate/waterstop steel plate equipment, glazed tile/horizontal plate equipment, arched color steel equipment, thermal insulation composite board equipment, high-speed guardrail/carriage board equipment, shearing/bending/slitting equipment, rolling door/blind equipment, unwinding Color steel forming equipment such as leveling/punching equipment, advertising gusset equipment, etc., can also design and produce various precision special-shaped profiling equipment according to customer requirements.
