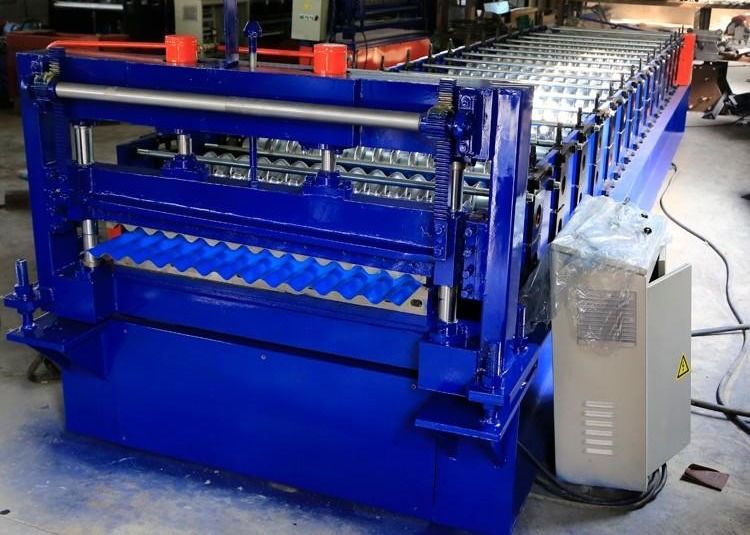

PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine

PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine
PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine

Large Image :  PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine

Product Details:
Place of Origin: China
Brand Name: cangzhou willing
Certification: CE,ISO
Model Number: Corrugated
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Description: PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine Thickness: 0.3-0.8mm
Shaft Material: Material Is 45# Forge Steel Dimension(l*w*h): 8500mm*1500mm*1500mm
Control System: PLC Speed: 15-18 M/Min
Voltage: 380V 50HZ 3PH Weight: 4.5T
Motor Power: 4kw Oil-pump Motor Power: 4kw
High Light:

0.8mm corrugated sheet rolling machine

,

plc corrugated sheet rolling machine

,

0.8mm corrugated sheet roll forming machine

PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine



The fully automatic tile press is a mechanical equipment that uses modern electromechanical control technology to achieve programmed and automated production in the process of producing compacted tile blanks. The automatic tile press can be installed and used separately, and can be equipped with production lines such as automatic uncoiler and automatic packaging machine, which can be fully automated.




Equipment Detailed Parameters:



1

Suitable Material PPGI PPGL GI GL

2

Width of the raw material 1250mm
3 Rows of rollers 18 rows
4 Dimension 8500mm*1500mm*1500mm
5

Main servo

4 kw

6 Hydraulic station power 4 kw
7 Thickness of raw material 0.3-0.9mm

8

Productivity

20-25m/min
9 Diameter of shaft ¢75mm

10

Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The roof roll forming machine can produce various steel roofs and wall panels, mainly using color steel plates as raw materials. The products are widely used in the roofs and walls of warehouses, garages, stadiums, exhibition centers, cinemas, laboratories, theaters, etc. It has the advantages of convenient installation, short construction period, corrosion resistance, long service life, and high strength.



Advantage



PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine is composed of PLC control system, hydraulic pump station system, and automatic shearing system. This machine adopts high-number pulse input function, high-number input performance is excellent, AB phase anti-interference ability is strong. It has the characteristics of fast running speed, stability and high precision



PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine 0
