Product Details:
Payment & Shipping Terms:
|
| Product Name: | Galvanized Steel Top Hat Section Omega Roof Roll Forming Machine | Raw Material: | PPGI，Galvanized |
|---|---|---|---|
| Speed: | 8-12m /min | Material Thickness: | 0.5 Mm - 1.5 Mm |
| Weight: | 3 Tons | Warranty: | 1 Year |
| Power: | 15KW | Control System: | PLC |
| High Light: | 15kw omega roll forming machine,steel omega roll forming machine,galvanized omega roll forming machine |
||

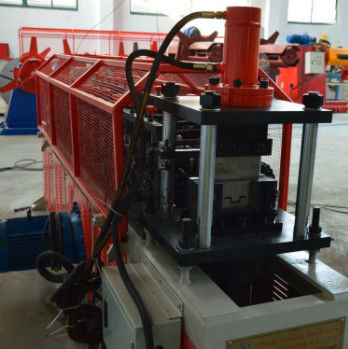

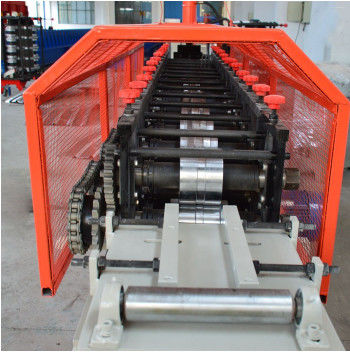

Galvanized Steel Top Hat Section Omega Roof Roll Forming Machine
Furring channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
Specification
| No. | Item | Description |
| 1 | Coil | PPGI,PPGL,GI,GL |
| Material Thickness | 0.5 mm- 1.5 mm | |
| 3 | Working Speed | 8-12 m/min ( not including the cutting time) |
| 4 | Roller Station | 14 Raws |
| 5 |
Dimension |
5500*800*1200 |
| 6 | Machine Weight | 3000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5.5KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Light steel keel is used as a ceiling or wall keel, and is matched with various decorative panels (paper-faced gypsum board, mineral wool board, etc.) to form a light ceiling or partition wall, with its excellent thermal, acoustic, mechanical and technological properties And changeable decoration styles are widely used in decoration projects.
Advantage
Cangzhou willing has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
