Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine

Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine
Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine

Large Image :  Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Curved Arch Roof
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 40 Sets Per Month
Detailed Product Description
Product Name: Curved Arch Roof Color Steel Roof Roll Forming Machine Raw Material: PPGL,GL,PPGI,GI,
Control SystePLCm: Manual Thickness: 0.2-0.9mm
Tile Type: Bending Radius Min: 450mm
Control System: PLC Motor Power: 4KW
High Light:

PPGL Roofing Sheet Roll Forming Machine

,

ppgl sheet roll forming machine

,

0.2mm Roofing Sheet Roll Forming Machine

Curved Arch Roof Color Steel Roof Roll Forming Machine

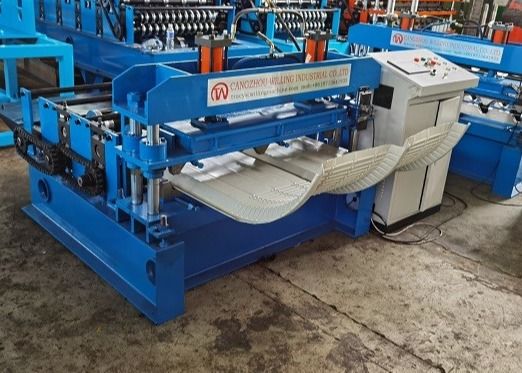

Curved Arch Roof Color Steel Roof Roll Forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control and can choose any bending position such as the middle and both ends. So as to better meet the needs of customers for different application scenarios

Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.9mm
3 Working Speed 90Deg/4 min
4 Roller Station 3 Raws
5

Dimension (L*W*H)

2800 mm*1200 mm*1800mm
6 Machine Weight 1000 KG
7

Electrical Control System

Automatic

8

Drive Motor Power

4KW+4KW
9

Tile type

bending
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



Curved roofs are usually used on the roof or eaves. When it rains, rainwater can be guided from the panel to the floor. This roof system can effectively prevent water accumulation and is widely used in apartment houses, prefab roofs, laboratory roofs, etc.



Advantage



The color steel roof has the advantages of light weight, high strength, thermal insulation, beautiful and durable, easy to cut and install, etc. The color steel roof construction cleaning is widely used in large-span activity workshops, warehouses, office buildings, villas, roof additions, air purification Housing, cold storage, shops, kiosks and temporary housing.
