Hat Channel Omega Cz Purlin Roll Forming Machine

Hat Channel Omega Cz Purlin Roll Forming Machine
Hat Channel Omega Cz Purlin Roll Forming Machine Hat Channel Omega Cz Purlin Roll Forming Machine Hat Channel Omega Cz Purlin Roll Forming Machine

Large Image :  Hat Channel Omega Cz Purlin Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Hat channel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Hat Channel Omega CZ Purlin Roll Forming Machine Raw Material: PPGI,Galvanized
Speed: 15-20m /min Material Thickness: 1 Mm - 3 Mm
Weight: 9 Tons Warranty: 1 Year
Power: 15KW Control System: PLC
High Light:

omega cz purlin roll forming machine

,

channel cz purlin roll forming machine

,

hat cz purlin roll forming machine

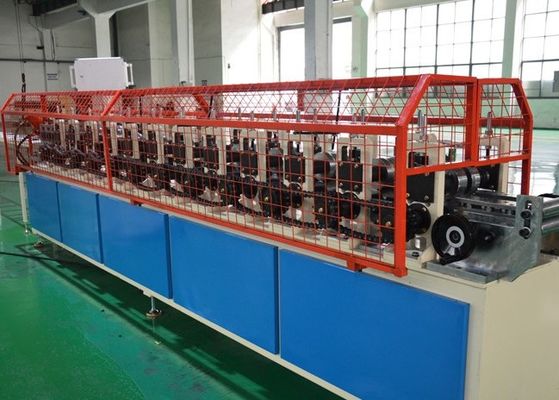

Hat Channel Omega CZ Purlin Roll Forming Machine

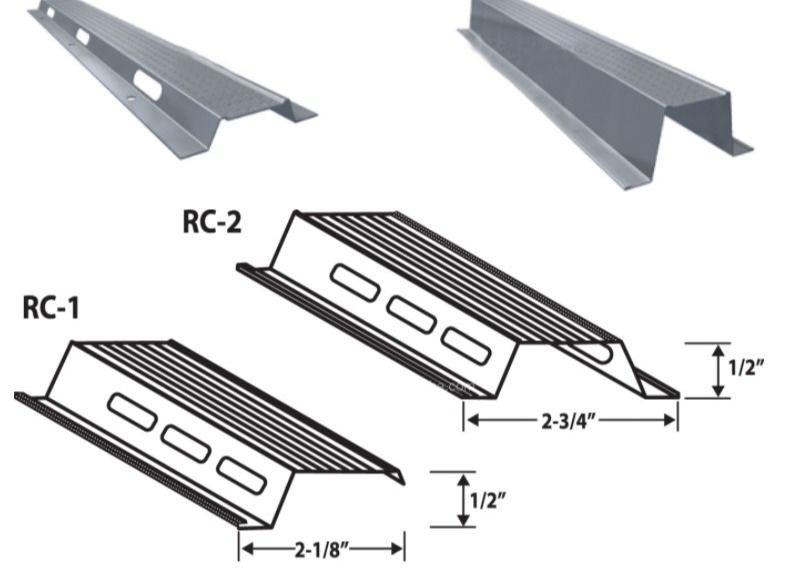

Omega channel roll forming machine can produce roof slats and ceiling slats of 40mm, 43mm, 61mm and any other size you need.
We can help customers to design machines according to the different requirements of logo punching and embossing, and we can work with customer team to create a good shape with the special characters of customer factory





Specification



No. Item Description
1 Coil Galvanized
  Material Thickness 1 mm- 3 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 14 Raws
5

Dimension

6500*1300*1200
6 Machine Weight 8000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

15KW
9

Hydraulic Station Power

15 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 2 inch

13

Material of Shaft

80 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



hat channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.



Advantage



Hat Channel CZ Purlin Roll Forming Machine equipment with servo motor tracking cutting system can produce 15-20 meters per min ,
Machine body is pillar structural, with safety protection cover.
There are two encoder to measure the length of the cutting productus
PLC is world famous PLC system.
