Name: High Speed Low Noise Ppgi Purlin Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: C&Z Machine
Price: 32,500.00 USD
Availability: InStock

Home > products > CZ Purlin Roll Forming Machine >

High Speed Low Noise Ppgi Purlin Forming Machine

low noise purlin forming machine

high speed purlin forming machine

ppgi purlin forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

C&Z Machine

Request A Quote

Product Details

Product Name:

High Speed And Low Noise CZ Purlin Roll Forming Machine

Raw Material:

Galvalume, PPGI，GI

Dimension(L*W*H):

9500 Mm*1400 Mm* 2000

Material Thickness:

1 Mm - 3mm

Weight:

8 T

Production Capacity:

20-25m/min

Voltage:

380V/50HZ/3PH

Main Motor Power::

15Kw

Hydraulic Motor:

22Kw

Hydraulic Pressure:

20Mpa

Highlight:

low noise purlin forming machine

high speed purlin forming machine

ppgi purlin forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

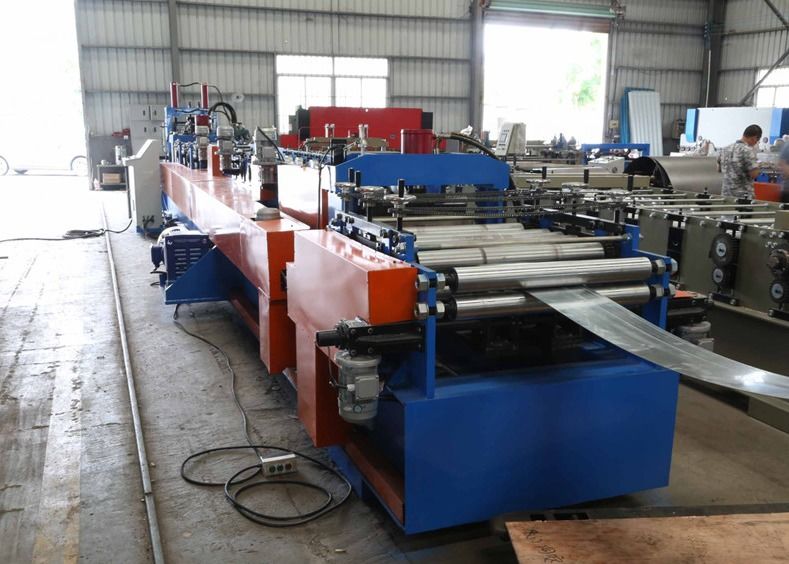

High Speed And Low Noise CZ Purlin Roll Forming Machine

The CZ purlin roll forming machine is a machine that combines the C-type and Z-type machines into one. Manually rotate the fixed rotating plate to realize CZ interchange. The length, quantity, and longitudinal hole distance of the pur strip can be automatically carried out. The equipment is stable and reliable in operation, with high punching accuracy and high output. At the same time, it is also suitable for most users. Save production space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	20- 25 m/min
4	Roller Station	12-16 Raws
5	Dimension (LWH)	9500 mm1400 mm2000 mm
6	Machine Weight	8000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	22 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch

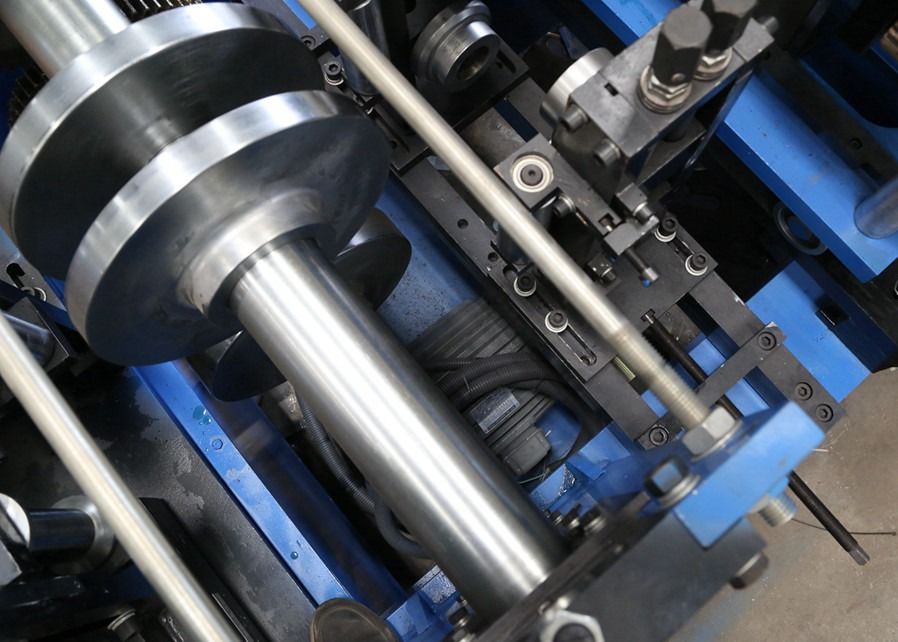

13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

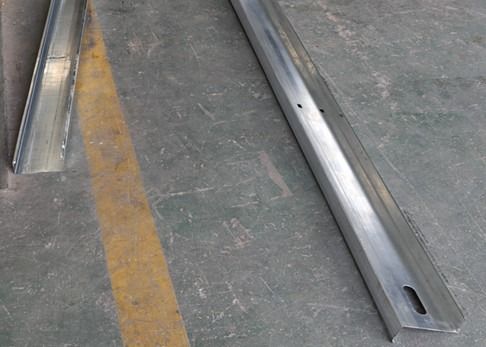

The products of C & Z prulin roll forming machine produce have excellent bending resistance and easy to install. They are widely used as supports for roofs and walls of large and medium-sized buildings such as factories and warehouses, garages, exhibition centers, cinemas, theatres, gardens, etc.

Advantage

The advantages of C& Z purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

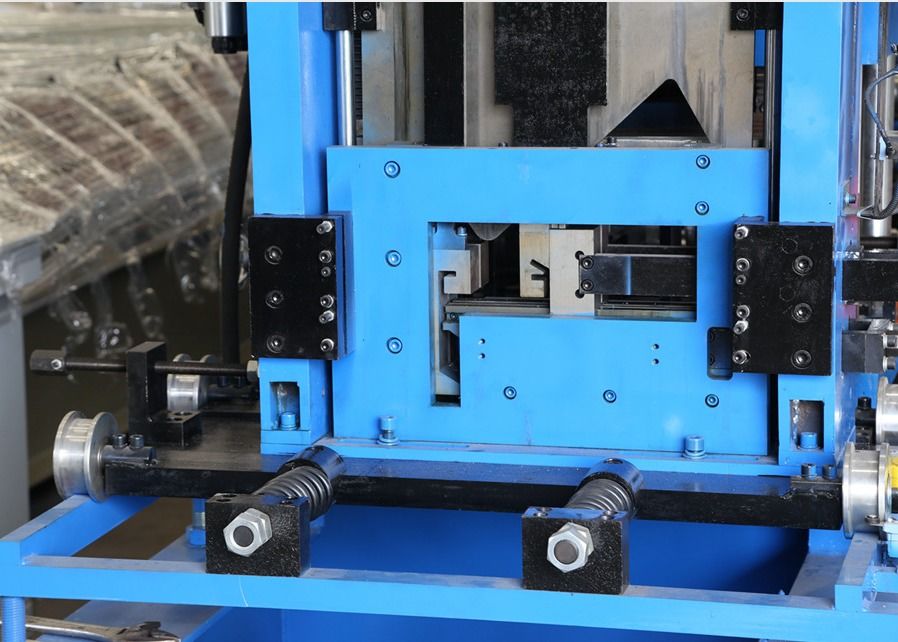

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side

High Speed Low Noise Ppgi Purlin Forming Machine 0
