Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ridge Cap Roofing Roll Forming Machine | Raw Material: | Galvalume, Galvanized, PPGI, Aluminum |
|---|---|---|---|
| Control SystePLCm: | PLC | Thickness: | 0.2-0.9mm |
| Tile Type: | Ridge Cap | Condition: | New |
| Color: | As Per Customer Reqeust | Motor Power: | 4KW |
| High Light: | ridge cap roof roll forming machine,4kw roof roll forming machine,0.2mm roof roll forming machine |
||

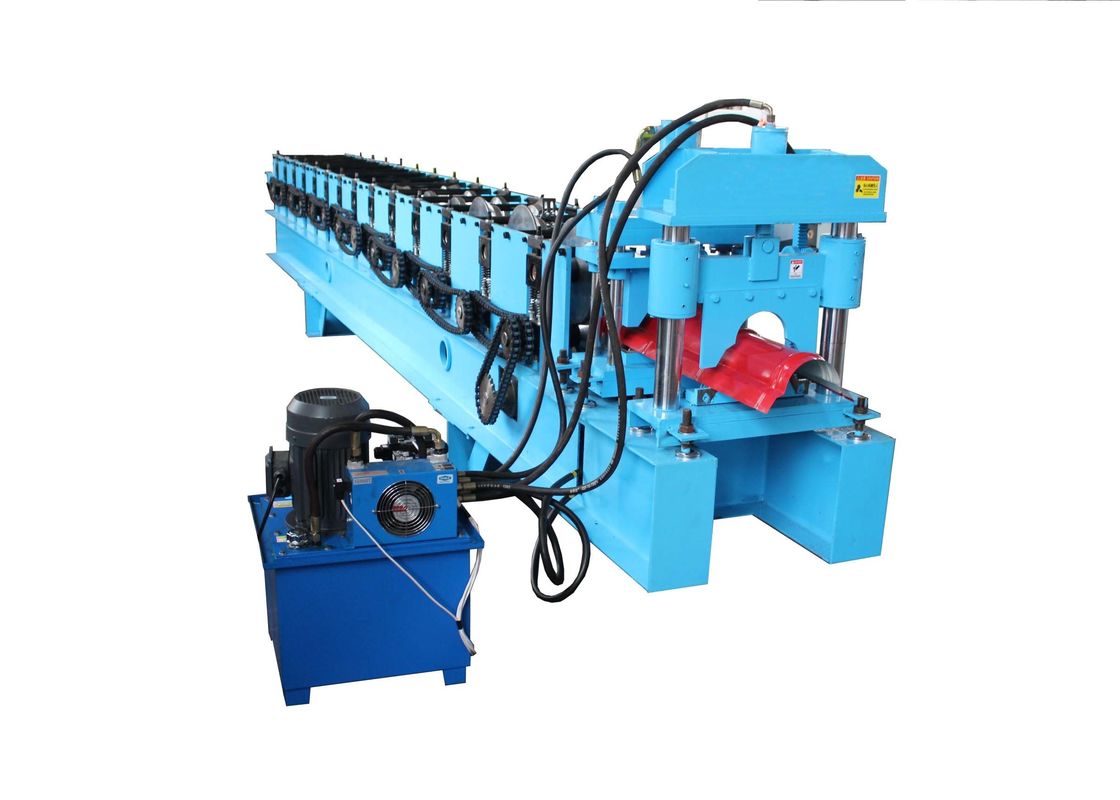

Ridge Cap Roofing Roll Forming Machine
Color steel ridge cap are new building materials, rich in colors, classical and elegant, and add the finishing touch to your building. It has light weight, high strength, good waterproofness, easy and quick installation, and can be widely used in roofs of villas, urban flat-to-slope, and tourist attractions. Compared with other materials, the combined construction of light materials and various auxiliary materials not only has a short construction period, but also has a simple construction method, and it can maintain the beauty of the roof without editing and repairing. The arc-shaped color steel roof ridge tile is more complete on the basis of the hand-made roof ridge tile. It is a better partner for the color steel glazed tile or color steel plate.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The finished product of Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls etc.
It has the advantage of beautiful, classical appearance and grace taste.
Advantage
(1) Good thermal insulation effect
The thermal conductivity of the color steel ridge tile is only 1/5 of that of the ordinary clay tile. In the absence of an insulation layer, the color steel ridge tile can still achieve the best thermal insulation performance.
(2) Large bearing capacity
The color steel ridge tile is made of color coated steel plate, so it has good bearing capacity. And in harsh environments, even if there is often snow on the roof, the tile surface will not be damaged or broken.
(3) The color lasts
The color steel ridge tile is made by pressing color coated steel plate, so there is no need to paint the surface. In this way, the color steel ridge tile has extraordinary durability in the natural environment, and can maintain the stability of the color even in the harsh environment.
(4) Waterproof
The material of the color steel ridge tile is metal, so the density is small, it does not absorb water, and there is no problem of microporous water seepage. In addition, the color steel ridge tile has a large single sheet area, few roof joints, and tight joints, so the waterproof effect is strengthened
