Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H): | 6500 Mm*1500 Mm*1500 Mm | Raw Material: | Galvalume, Galvanized Strips |
|---|---|---|---|
| Speed: | 30m/min - 50 M/min | Material Thickness: | 0.3mm - 0.8mm |
| Original: | China | Voltage: | Customized |
| Weight: | 2.3 Tons | Color: | To Order |
| Certtificate: | ISO, CE | ||
| High Light: | 0.8mm light gauge steel framing machines,shearing light gauge steel machine,30m/min Light Gauge Steel Framing Machines |
||

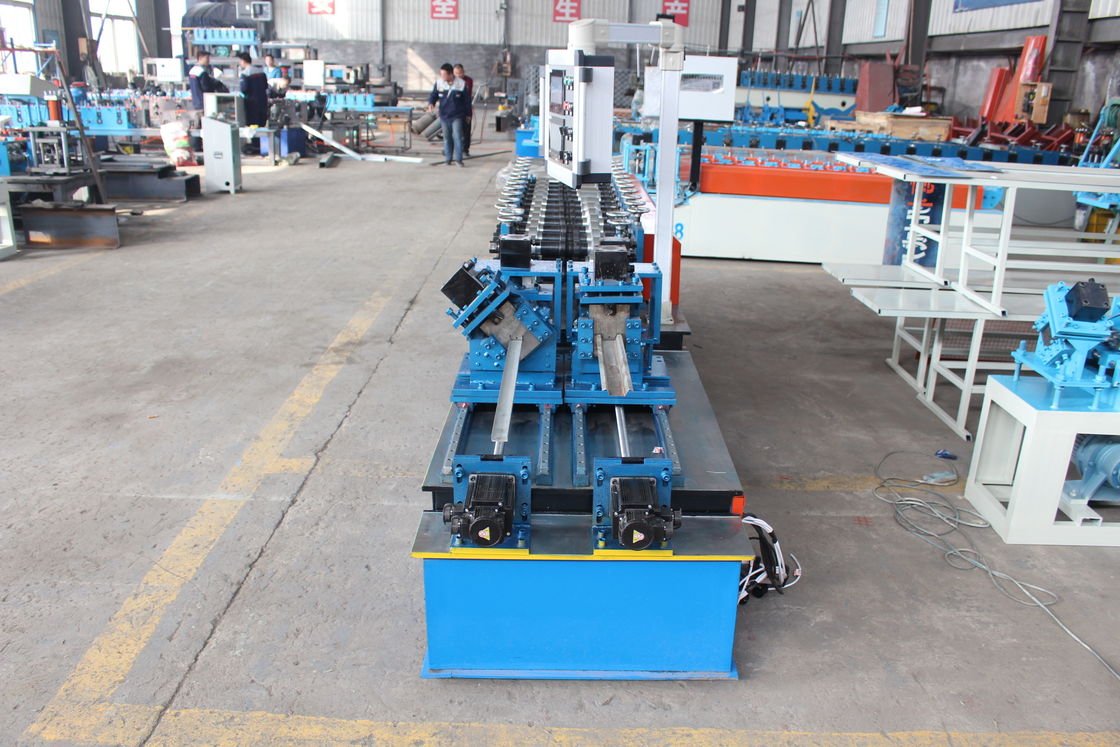

Tracking Shearing Style Light Gauge Steel Frame Roll Forming Machine
This machine is designed and fabricated as roll former to make light steel frames, such as stud for example. It is a good racking Shearing Style Light Gauge Steel Frame Roll Forming Machine with a shear which cuts the frame without stop. Therefore itt saves time and make the production more efficient. It is very good partner machine that used in light gauge steel frame industry and helpul partner for metal building contractor.
It is available to add any other units into this Roll Forming Machine Line when you want to make some features on the profile. For example, you add a punching unit when need holes, and a die roller when need graphic.
Profile
Also can punch the hole and lettering
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 20-30 GA |
| 3 | Working Speed | 30-50 m/min |
| 4 | Roller Station | 14 Raws |
| 5 |
Dimension (L*W*H) |
6000 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 4500 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
