Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Shutter Slat Roll Forming Machine Working High Speed 20-30 M / Min | Raw Material: | Galvalume, Galvanized, PPGI |
|---|---|---|---|
| Working Speed: | 20m/min - 30m/min | Material Thickness: | 0.8 Mm - 1.0 Mm |
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| Color: | As Per Customer Request | Machine Weight: | 4 Tons |
| Hardness Of Raw Material: | Q235 | Power: | 3KW |
| High Light: | rolling shutter door slats roll forming machine,30m/min shutter door roll forming machine,20m/min shutter door roll forming machine |
||

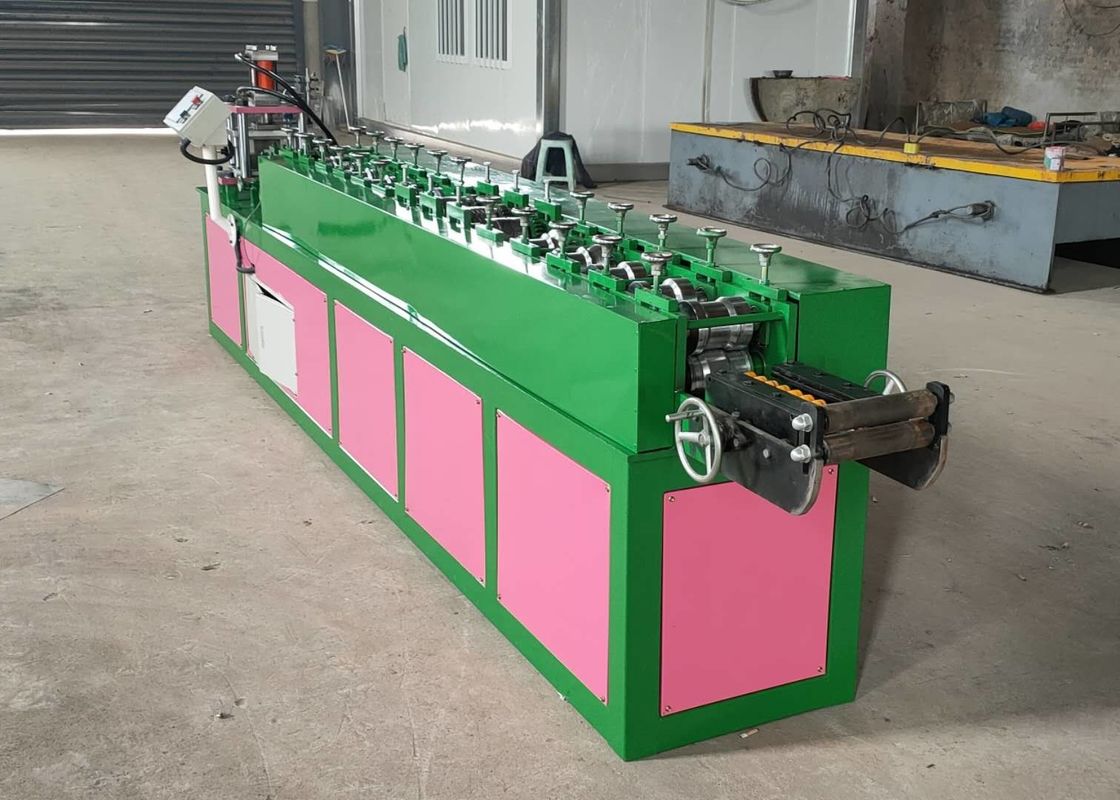

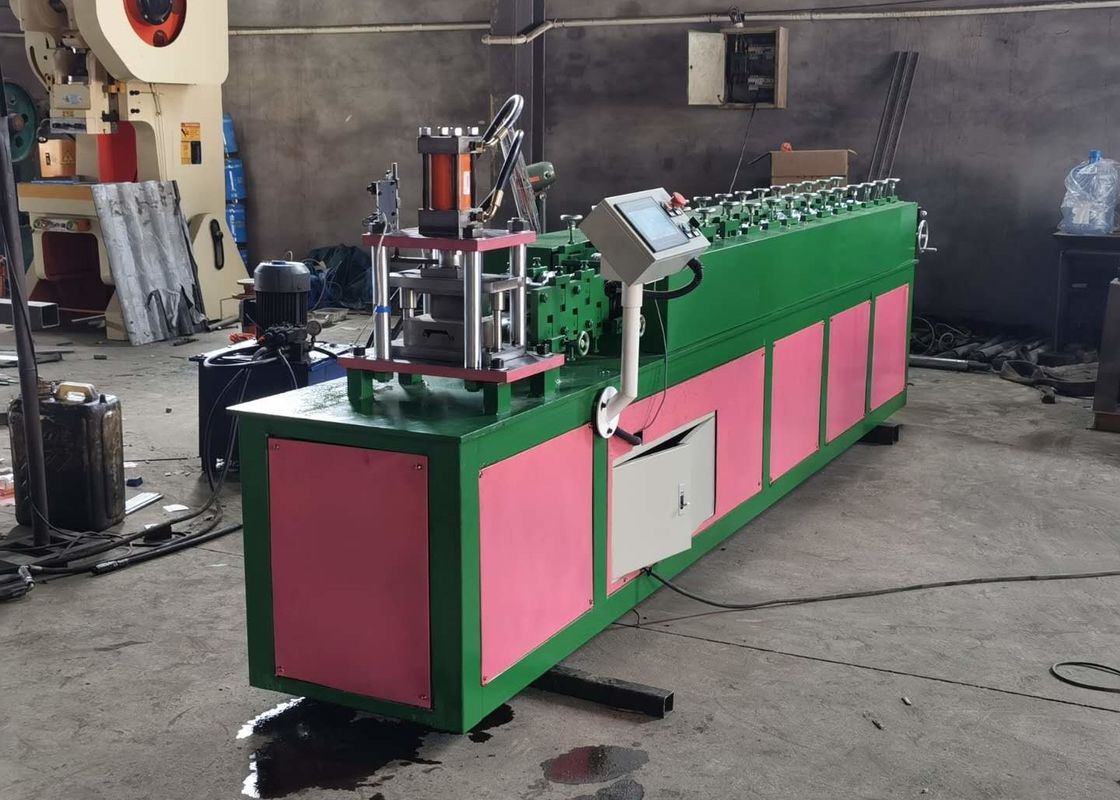

Metal Shutter Slat Roll Forming Machine Working High Speed 20-30 M / Min
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.8mm - 1.0 mm |
| 3 | Working Speed | 20-30 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4 tons |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
