Metal Roof Box Down Pipe Roll Forming Machine Gutter Forming Machine 3 Phases

Metal Roof Box Down Pipe Roll Forming Machine Gutter Forming Machine 3 Phases
Metal Roof Box Down Pipe Roll Forming Machine Gutter Forming Machine 3 Phases

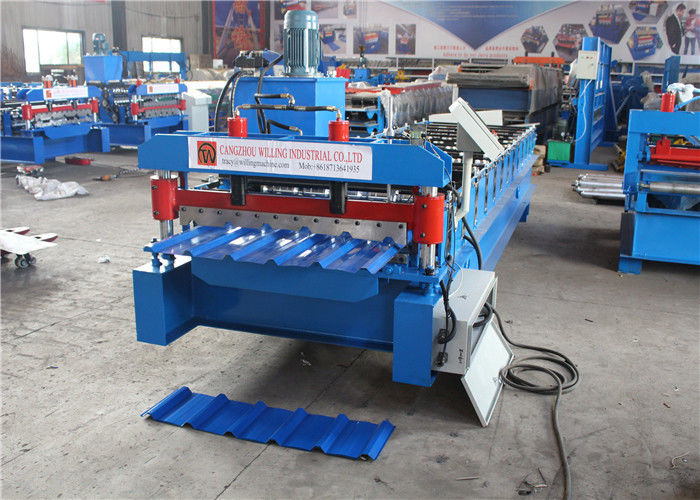

Large Image :  Metal Roof Box Down Pipe Roll Forming Machine Gutter Forming Machine 3 Phases

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Downspout
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Roof Box Downspout Galvanized Downspout Roll Forming Machine Raw Material: Galvalume, Galvanized, PPGI,Aluminum,Copper
Voltage: 380V 50Hz 3phases Control System: PLC
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation,commissioning And Training Warranty: 1 Year
High Light:

gutter rolling machine

,

downpipe roll forming machine

Metal Roof Box Downspout Galvanized Downspout Roll Forming Machine


The most common downspout for use with Style A, and Style D gutters systems.

Profile
Metal Roof Box Down Pipe Roll Forming Machine Gutter Forming Machine 3 Phases 0


Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI
2 Raw Material Thickness 0.4 mm - 0.8 mm
3 Working Speed 8-10 m/min
4 Roller Station 20  Stations
5

Dimension (L*W*H)

9200 mm*800 mm*1200 mm
6 Machine Weight 9000 KG
7

Electrical Control System

PLC (can be customized)

8

Drive Motor Power

5.5 KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Structure introduction



1 Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 1-2 Ton, and it is capable for most of the cases.



2 Feeding

Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.



3 Machine material

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm

Roller material: Forging Steel 45# heat treatment, coated



4 Shearing mechanism

It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products. Side guide rails are ensuring the cutting balance during the cuter fall down, this mechanism is adopted to keep the burr and other edge fault away. Material of the cutting blades: GCr12, processed by heat treatment



5 Hydraulic system

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.

The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves. Power of The Pump: 4kw.Hydraulic oil :40#



6 Electrical control cabinet

Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.



7 Encoder

We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

























Contact Details
Cangzhou Famous International Trading Co., Ltd

Contact Person: Mrs. Tracy

Tel: +8618713641935

Fax: 86-317-2016816

Send your inquiry directly to us (0 / 3000)
