80-300mm Metal Roof Roll Forming Machine PLC Control Stable Performance

1.5-3mm Thickness 80-300mm C/Z Purlin Roll Forming Machine Interchangable

1. Introduction:

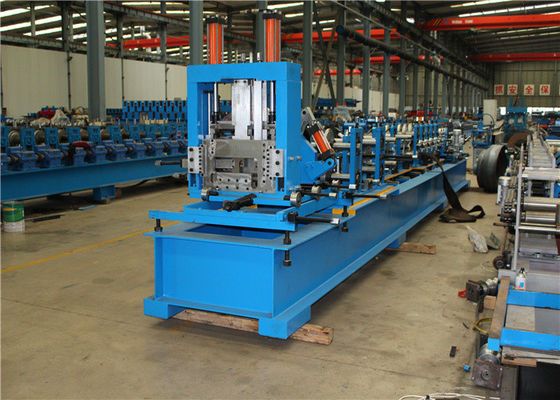

C & Z shape purline roll forming machine can produce many sizes of C & Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.

2. Main Technical Specification:

Dimension: 10000mmx1200mmx1500mm

Total weight: 9tons

Controlling system: PLC

Hydraulic motor+ pump :22KW

Quantity of stands: 15 stations

Small motor: 0.75KW*3

Working speed: 10000-18000mm/min

Hydraulic pressure:18-20Mpa

Material of roller die: GCr15 bearing steel with quenched treatment.

Material of Cutting die: Cr12 mould steel with quenched treatment.

Product range: C type from 80-300mm,

Z type from 120-300mm

3. Suitable Material for Production:

C & Z mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.5-3mm. It is roll formed by C & Z shape roll forming machine.

4. Working Flow:

Decoiling the sheet--sheet Guiding--coil strip leveling--roll forming--punching for horizontal hole--punching for vertical hole--measure length--cutting the panel--panel to supporter.

5. Product Feature and Usage:

The products of C & Z purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

6. Applicable Area:

Door frame, rail, angle, pallent rack, pack post, swage beam panel, glass wool panel, hosit rail, hand rail, car molding, C-channel fire shatter.

7. Guarantee

a. Guaranteed against malfunctions due to manufacturing defects for 1.0year after date of purchase.Spare parts will be made free of charge,but freight cost should be paid by buyer.

b. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation
