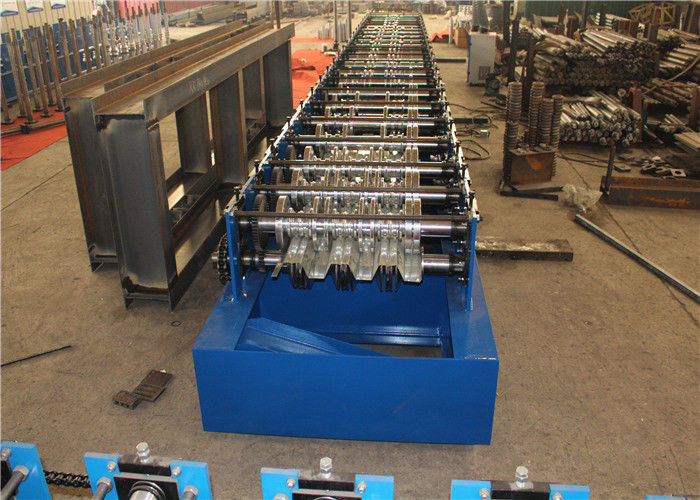

Van And Vehicle Shutter Door Roll Forming Machine 380V 60HZ Energy Saving

Van And Vehicle Shutter Door Roll Forming Machine 380V  60HZ Energy Saving
Van And Vehicle Shutter Door Roll Forming Machine 380V  60HZ Energy Saving

Large Image :  Van And Vehicle Shutter Door Roll Forming Machine 380V 60HZ Energy Saving

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Shutter Door
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Van And Vehicle Roller Shutter Machine Shutter Door Roll Forming Machine Raw Material: Galvalume, Galvanized, PPGI
Working Speed: 30 M/min - 50 M/min High Speed Material Thickness: 0.3 Mm - 0.8 Mm
Voltage: 380V 50Hz 3phases Condition: New
High Light:

automatic rolling shutter machine

,

roller shutter door machine

Van And Vehicle Roller Shutter Machine Shutter Door Roll Forming Machine



We provide custom made van and vehicle shutters for workmen, deliverymen, or anyone else that may need a shutter built inside their vehicle.

These can be fitted to your vehicle to give you protection against break-ins & easier access than the use of doors. These can be fitted to a range of different vehicle types so feel free to view our range below if you’d like some more information or have specific needs.



Vans are a popular target for theft, with many people leaving their expensive tools in the vehicle overnight. Our vehicle and van roller shutters are made to measure so you can be sure that they will fit your van or vehicles aperture perfectly, adding a great layer of protection against theft.



Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.6 mm - 1.0 mm
3 Working Speed 30-50 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

5500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC (can be customized)

8

Drive Motor Power

5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 1 mm

12

Driving Mode

Gear Wheel

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard


Components and Technical Specification
Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta

Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.
Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
